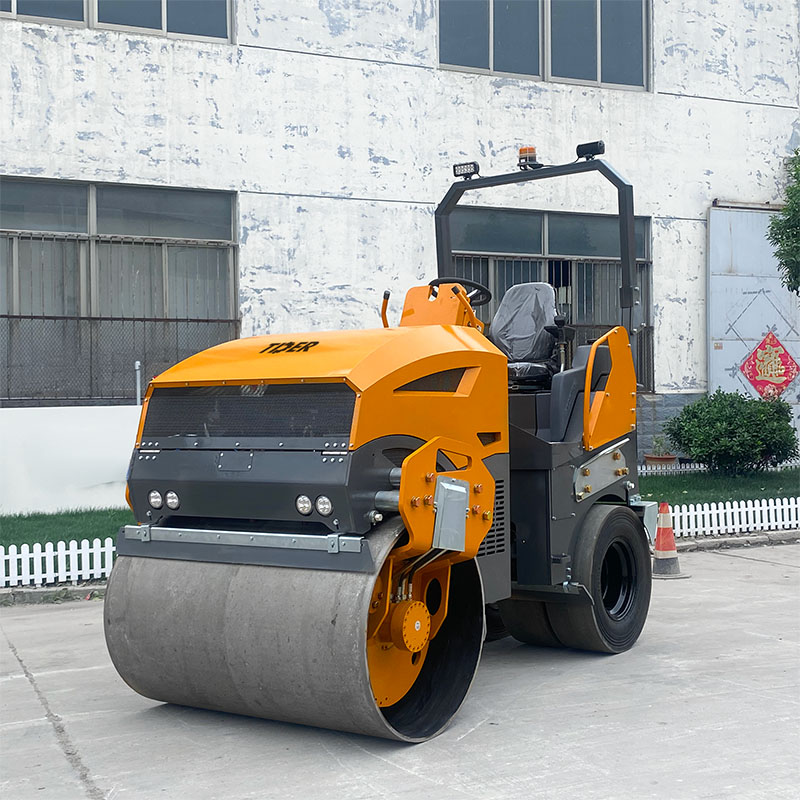

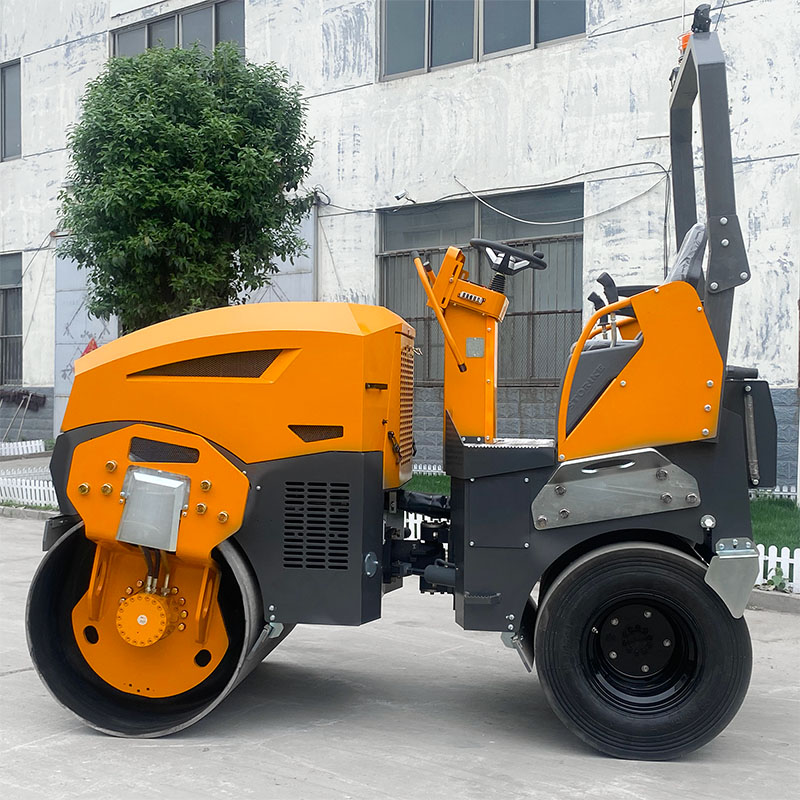

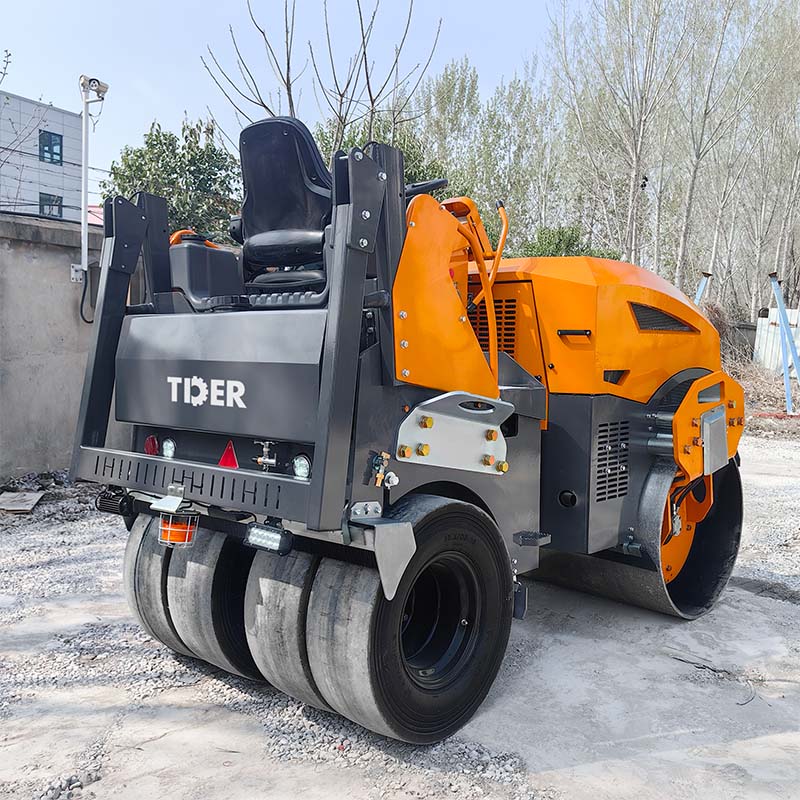

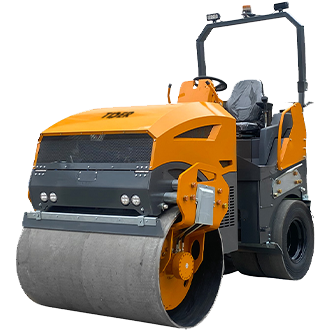

Name: 5 Ton Asphalt Roller with All-Wheel Drive and Steering
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Three-Motor Drive for All-Wheel Traction

The travel system uses three piston motors arranged in a front-one/rear-two configuration. With drive applied to both the front steel drum and rear tires, the TR50 maintains traction across the machine rather than relying on a single driven axle.

All-Wheel Steering for Flexible Maneuvering

The TR50 combines all-wheel drive with all-wheel steering. The hydraulic articulated steering system allows the machine to change direction through its articulated structure, making it easier to maneuver during repeated passes and positioning on the jobsite.

Brake-Equipped Travel Motors as Standard

The travel motors are equipped with integrated braking as standard, combining machine travel and braking functions within the drive system. This provides a dedicated braking function without requiring a separate travel motor configuration.

Controls Integrated into the Operator's Handles

The TR50 uses linked dual operating handles, with the vibration switch integrated into the handles. One-button vibration and one-button intermittent electronic pressure spraying keep frequently used functions close to the operator's hands during compaction.

Adjustable Seat for Different Working Directions

The driver's seat can be adjusted in both directions, allowing the operator to reposition the seating direction according to the working path. This works particularly well with the machine's front and rear working configuration, reducing the need to operate from a fixed-facing position.

One-Touch Lighting for Night Work

LED lighting is provided at both the front and rear, with one-button lighting control from the operator's station. Optional warning lights and additional roof-mounted lighting are available for customers requiring greater visibility during night construction.

Specifications

Overall Size	Overall length	mm	2905
	Working width	mm	1580
	Overall height	mm	2680
	Drum diameter	mm	900
	Drum width	mm	1400
	Wheel base	mm	1960
Weight	Operating weight	kg	5000
	Static line load	N/cm	140
Size	Working width	mm	1580
	Overall length	mm	3000/2905
	Overall height	mm	2025/2680
	Turning radius	mm	4380
	Drum width	mm	1400
	Drum diameter	mm	900
	Wheelbase	mm	1960
	Steel drum thickness	mm	17
	Staggered wheel	mm	50
	Tire size		10.5/80-16
	Total tire width	mm	1340
	Number of tires	个	4
	Supporting method		Middle support/Both sides support
Engine	Engine brand		CHANGCHAI	Yanmar	KUBOTA
	Engine model		ZN490B	4TNV88	V2403
	Engine type		Diesel inline water-cooled four-stroke
	Number of cylinders		4
	Output Power	kW	36	34.5	33.6
	Rotating speed	rpm	2400	3000	2400
	Electrical Equipment	V	12
Drive	Drive mode		Hydraulic motor drive
	Speed, infinitely variable	km/h	0-12
	Theoretical gradeability (vibration on/off)	%	35/40
Steering	Oscillation Angle	°	8
	Steering Angle	°	30
	Steering Method	—	Hydraulic Cylinder, Articulated Steering
	Steering System	—	Oscillating Articulated Type
Vibration system	Vibrating drum		Front
	Drive form		Hydraulic motor
	vibration frequency	Hz	50
	Vibration amplitude	mm	0.5
	Exciting force	kN	68
Sprinkler system	Type of sprinkling		Intermittent pressure spray
Capacity	Hydraulic oil capacity	L	60
	Fuel capacity	L	44.5
	Water tank capacity	L	180

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
