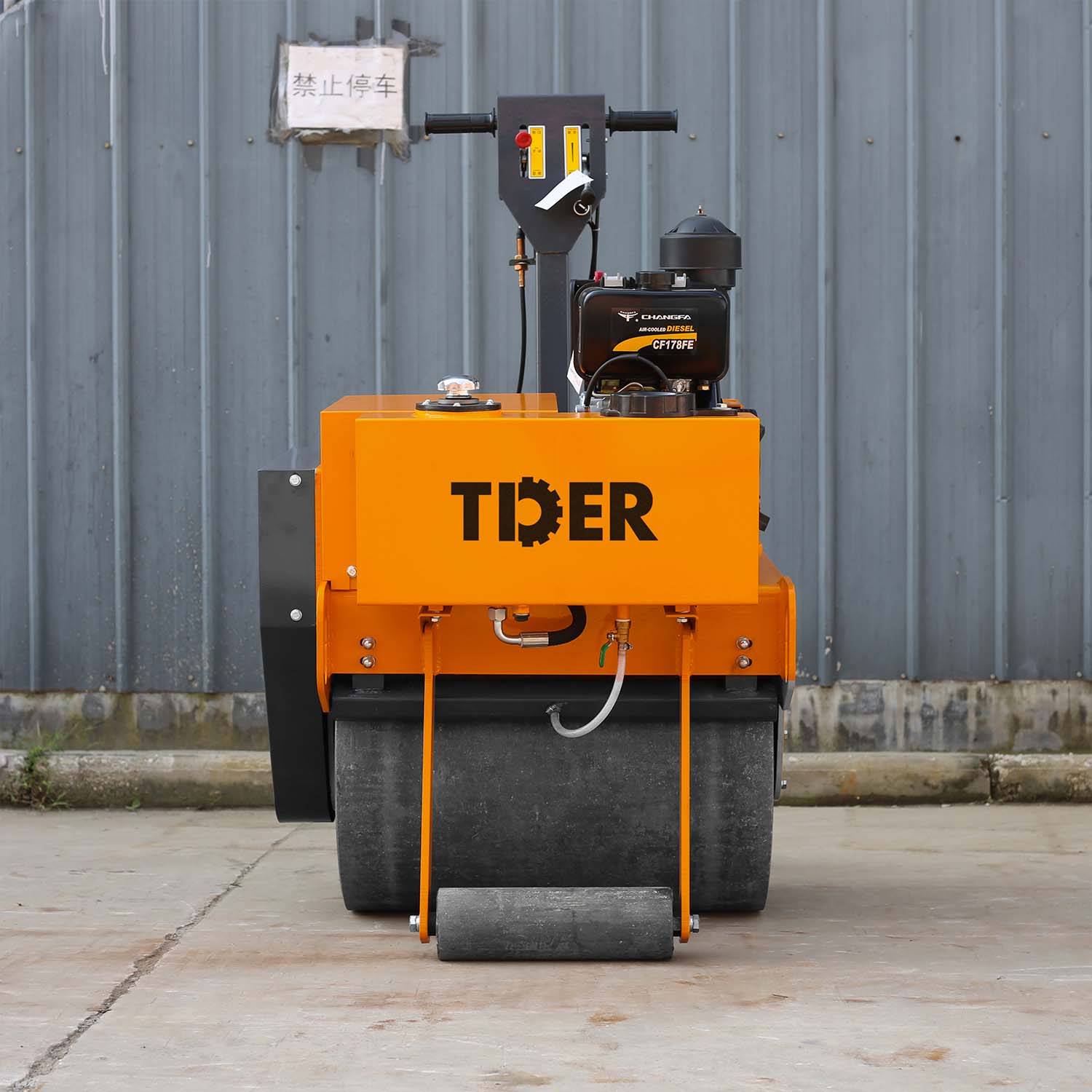

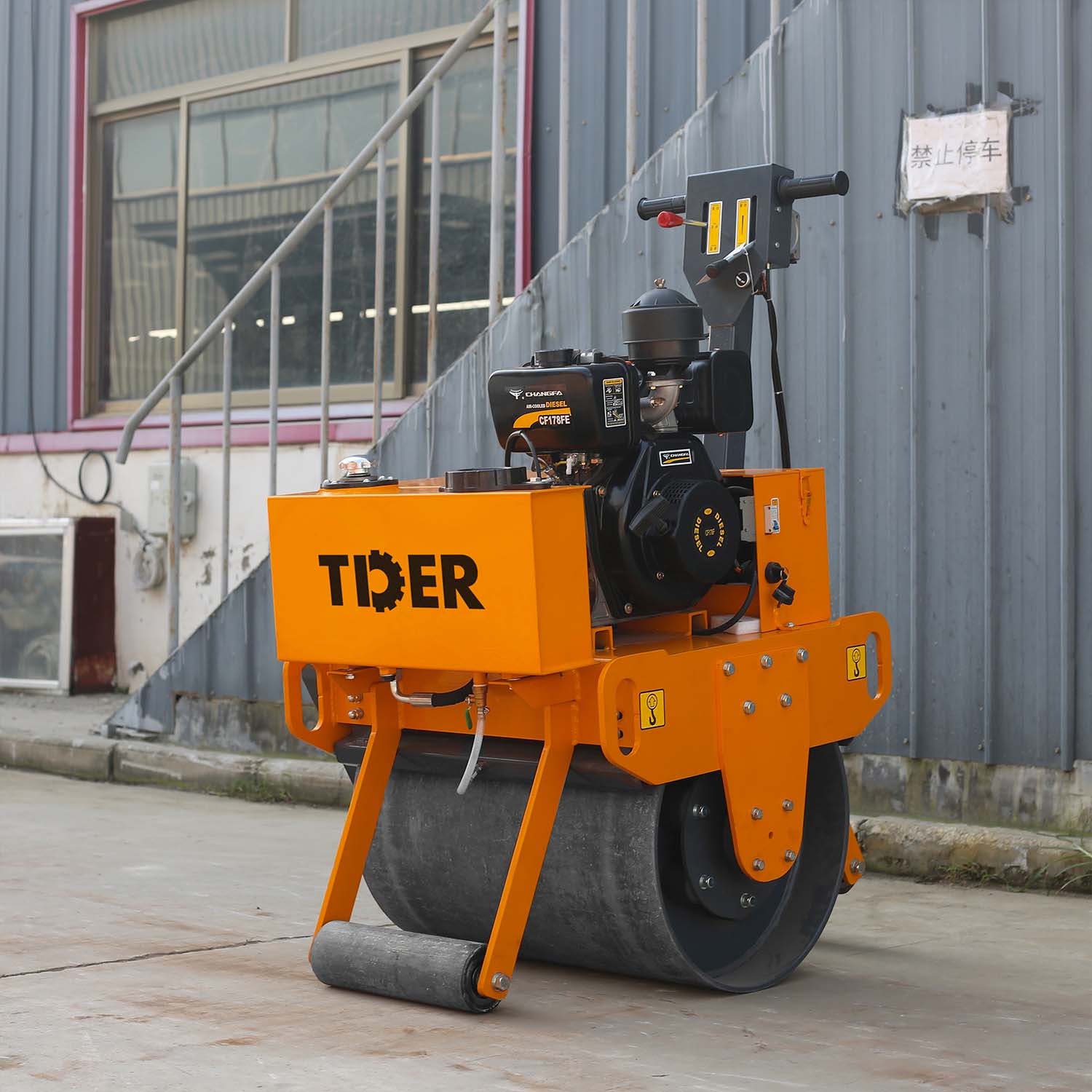

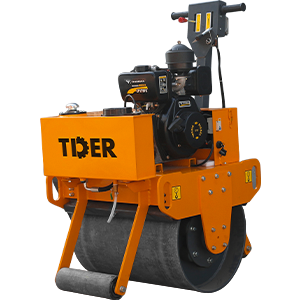

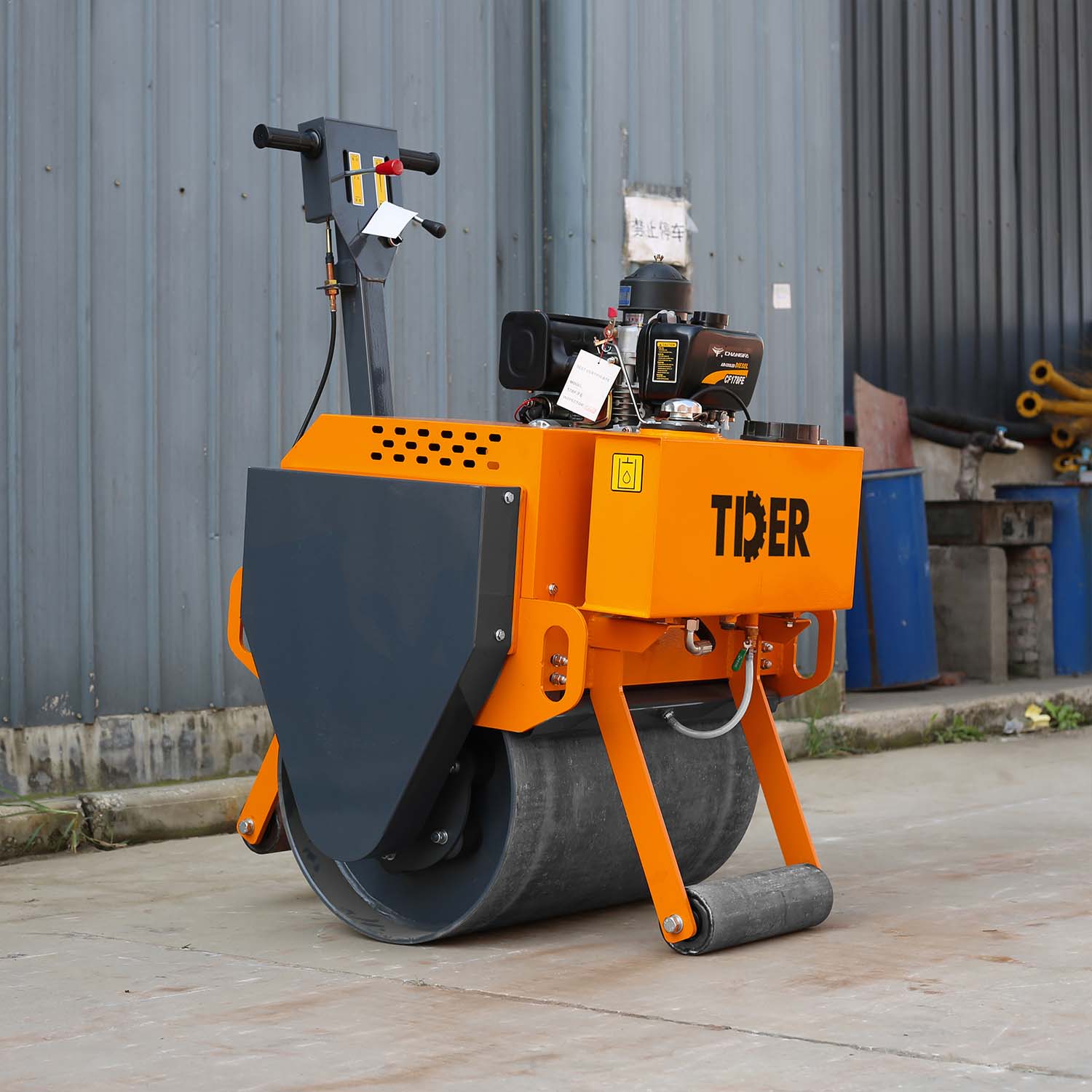

Name: 450kg Walk Behind Roller Compactor with Rotomolded Tank Option
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Powerful Vibration System for Effective Compaction

Equipped with a 20kN centrifugal force and 75Hz vibration frequency, the TR045 delivers efficient compaction performance for asphalt, gravel, sand, and soil foundations. The one-button vibration system with electromagnetic clutch allows operators to activate vibration quickly and maintain consistent compaction results during operation.

Strong Gradeability for Uneven Job Sites

With a climbing capability of up to 25%, the TR045 maintains reliable traveling performance on slopes and uneven terrain. The hydraulic drive system provides smooth movement and confident operation across different construction environments.

Diesel Power with Electric Start Convenience

Powered by the Changfa 178 air-cooled four-stroke diesel engine, the TR045 provides reliable torque output for construction applications. The electric start system simplifies daily operation, while the proven diesel structure supports dependable performance with straightforward maintenance.

Durable Water System for Long-Term Operation

The TR045 can be equipped with a durable iron water tank or optional rotomolded water tank to meet different working requirements. The robust design supports reliable operation in outdoor construction environments.

Specifications

Travel System	Travel Speed	km/h	0-4
	Gradeability	%	25
	Drive System	—	Hydraulic Pump and Motor
Engine	Engine Model	—	Changfa GF178FE Diesel Engine
	Engine Type	—	Diesel Engine, Air-Cooled 4-Stroke
	Rated Power	hp/rpm	6.0 / 3600
	Optional Engines	—	Changfa 178 / Honda GX270 (Other engines available upon request)
Compaction Performance	Exciting Force	kN	20
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	75
	Vibration Type	—	Electromagnetic Clutch + Belt-Driven Vibration
Capacity	Fuel Tank Capacity	L	3.5
	Water Tank Capacity	L	12
	Water Tank Material	—	Steel Water Tank / Rotomolded Water Tank (Optional)
	Hydraulic Oil Tank Capacity	L	8
Working Specifications	Drum Width	mm	700
Working Specifications	Drum Diameter	mm	530
Dimensions	Overall Length (Handle Folded)	mm	1900
	Overall Width	mm	860
	Overall Height (Handle Raised)	mm	1520
Weight	Net Weight	kg	400
Weight	Operating Weight	kg	450
Packaging	Fumigation-Free Wooden Case Package	mm	1200 × 950 × 1300
Packaging	Steel Frame Stackable Package	mm	1240 × 900 × 2480

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
