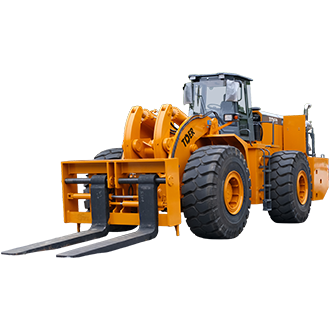

45 Ton Forklift Loader
ZT45T
Features
Double Rocker Arm Linkage System for Ultra-Heavy Load Lifting
The ZT45T adopts a double rocker arm and 8-linkage lifting structure, designed to improve load distribution during extreme lifting operations. This reinforced working mechanism enables the machine to handle materials above 45 tons with better stability and smoother lifting performance, making it suitable for large-scale industrial handling applications.
Turbocharged Six-Cylinder Power System with Flexible Engine Options
Powered by a Weichai turbocharged six-cylinder engine, the ZT45T delivers strong output capability for continuous heavy material handling. Optional Cummins, Steyr, and engines with CAT technology provide customers with flexible power choices according to regional service conditions and market requirements.
Four-Turbo Torque Converter Transmission for Smooth High-Load Operation
Equipped with a four-turbo hydraulic torque converter, the ZT45T provides smoother power conversion and easier gear shifting during frequent loading cycles. The optimized transmission system improves driving comfort and helps operators maintain efficient performance when handling oversized materials.
Dual-Line Four-Wheel Brake System for Safer Heavy Equipment Control
The ZT45T features a four-wheel dual-line braking system with caliper disc brakes, providing enhanced braking response and operational safety under heavy load conditions. The braking structure helps operators maintain better control during transportation and loading operations.
Pressurized Comfort Cab for Long-Hour Industrial Operation
The pressurized cab design provides a cleaner and more comfortable operating environment, with optional air conditioning and heating systems available for different climates. The ergonomic cabin layout helps operators maintain concentration during extended working shifts.
Multiple Attachments for Flexible Industrial Applications
The ZT45T supports various working attachments and bucket configurations, allowing customers to adapt the machine for different material handling requirements. This flexibility improves equipment utilisation across industrial yards, mining areas, and large-scale handling operations.
Specifications
| Engine | Weichai | |
| Rated Power | kW | 247 |
| Operating Weight | kg | 44500 |
| Rated Loading Capacity | kg | 45000 |
| Traveling Speed | km/h | 0-33 |
| Turning Angle | ° | 30 |
| Wheelbase | mm | 4615 |
| Fork Dimensions (L × W × H) | mm | 1850 × 410 × 150 |
| Max. Climbing Gradient | ° | ≥17 |
| Overall Dimension (L × W × H) | mm | 10300 × 3480 × 4100 |
| Lifting Time | s | 14 |
| Hydraulic Cylinder Time | s | 24 |
| Fuel Tank Capacity | L | 330 |
| Hydraulic Oil Tank Capacity | L | 370 |
| Tire Model | 29.5R29 |

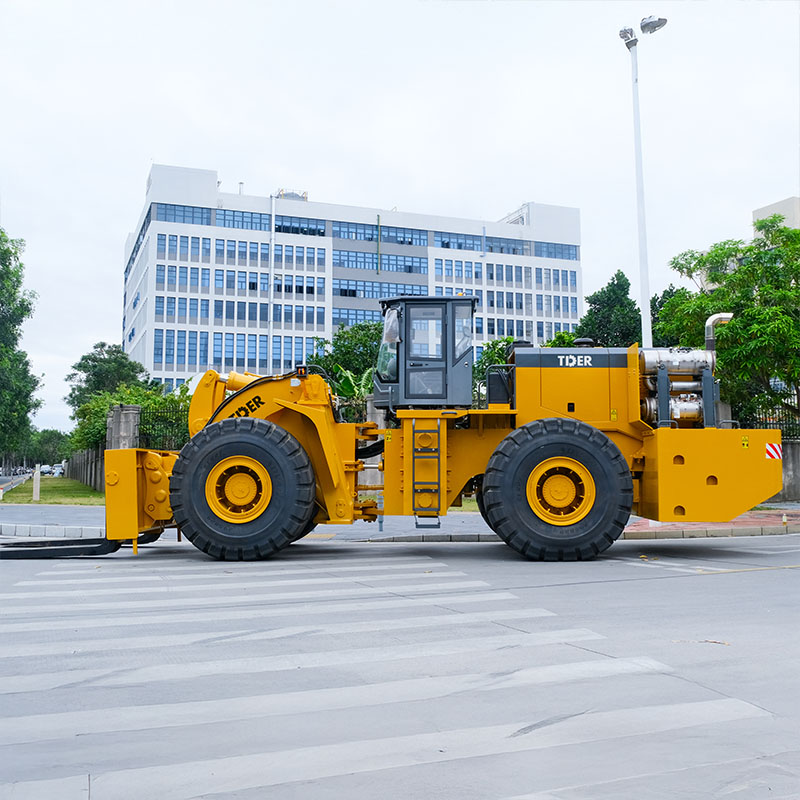

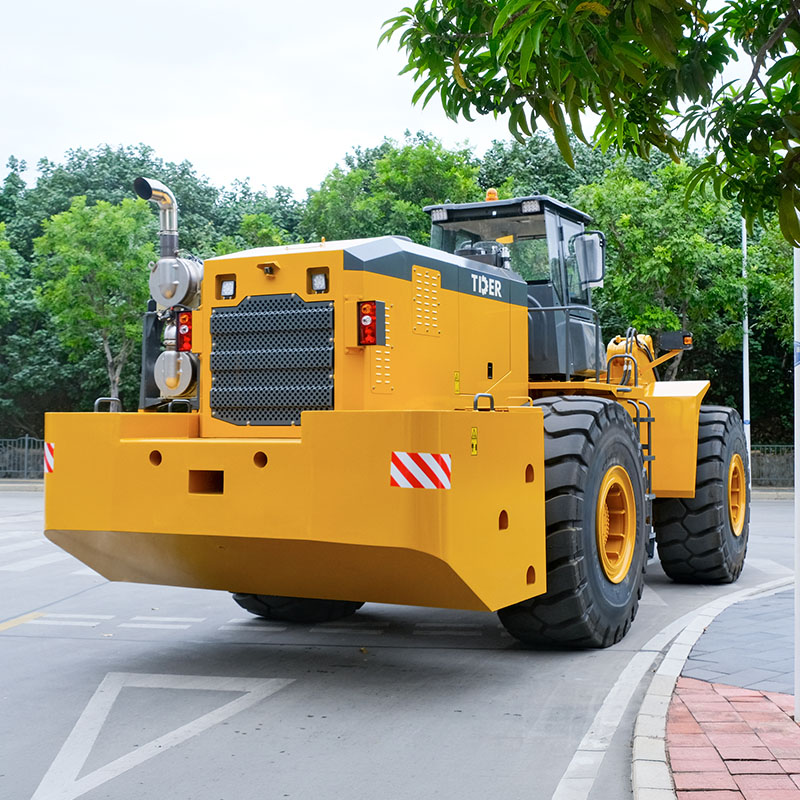

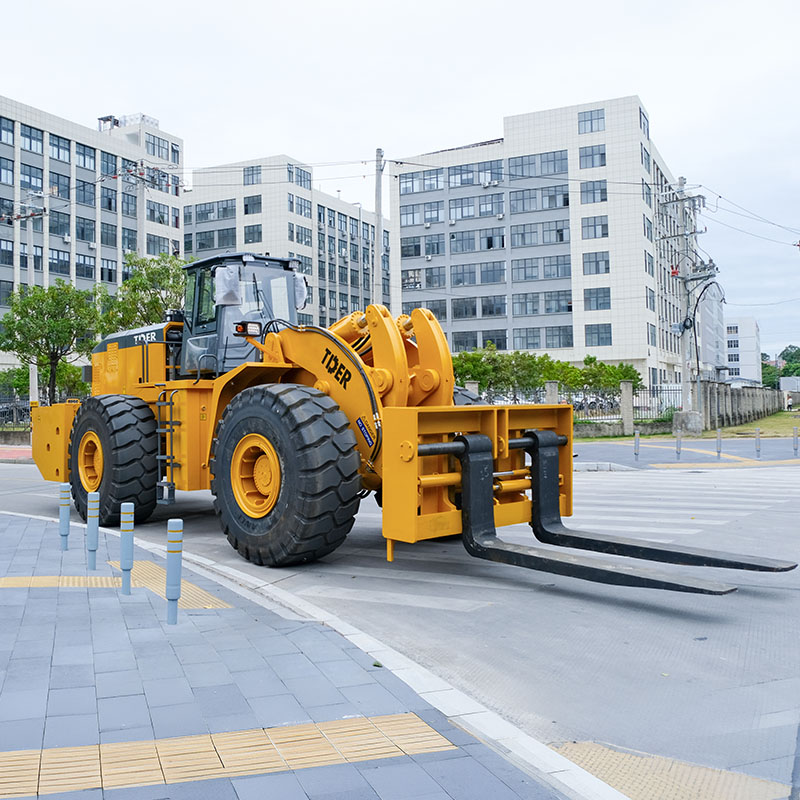

Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
