40 Ton Forklift Loader
ZT40T
Features
Weichai Powertrain with Torque-Matched Transmission for Continuous Heavy Loading
Powered by a 247kW Weichai WD12G336E211 six-cylinder turbocharged engine, the ZT40T combines strong power output with a Yitong transmission and Shantui dual-turbo hydraulic torque converter. The optimized power matching improves energy transfer efficiency, overload adaptability, and operating smoothness during repeated lifting, loading, and transportation cycles.
Reinforced Axle System for 40-Ton Load Carrying Reliability
Equipped with a reinforced Q axle featuring enlarged hubs and strengthened gears, the ZT40T provides higher bearing capacity than conventional axle structures. The optimized axle design improves load distribution, enhances durability under heavy loads, and reduces maintenance concerns during long-term industrial operation.

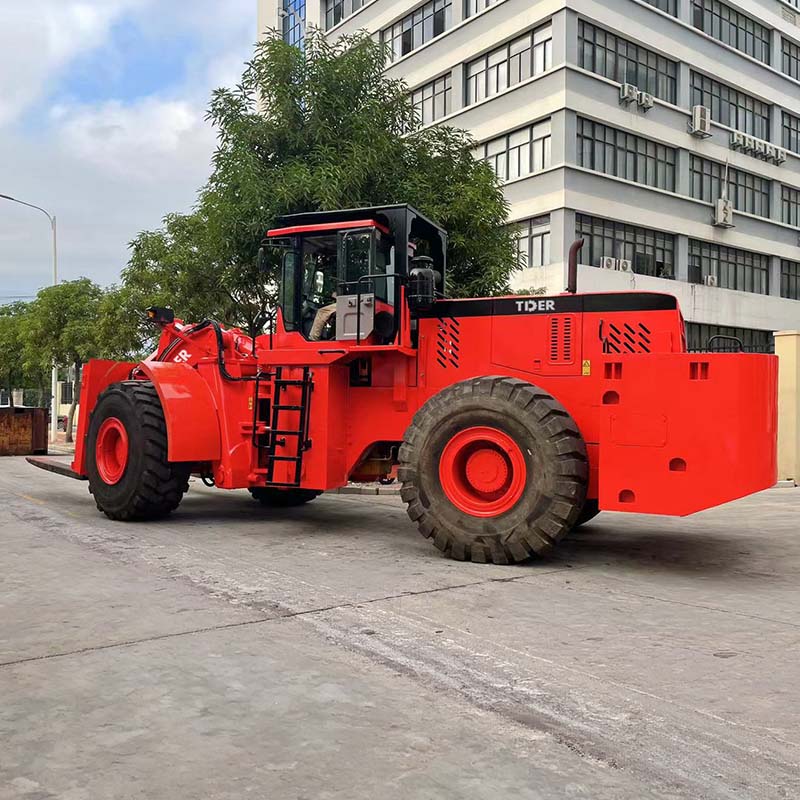

Steel Radial Tires Designed for Heavy Load Mobility
Equipped with 29.5R29 steel radial tires, the ZT40T provides excellent impact resistance, load support, and service durability for demanding working environments. The reinforced tire structure helps maintain stable movement when transporting heavy materials across mining sites, yards, and uneven surfaces.
Optimized Hydraulic Piping Design for Heavy-Duty Applications
The ZT40T applies DIN-standard hydraulic piping with O-ring sealing and protected hose routing to improve hydraulic system protection under high-pressure working conditions. The reinforced layout helps maintain consistent hydraulic performance when performing frequent lifting and heavy material handling tasks.
Specifications
| Engine | — | Weichai |
| Rated Power | kW | 247 |
| Overall Length | mm | 11000 |
| Overall Width (Outside of Tires) | mm | 3500 |
| Overall Height | mm | 4000 |
| Maximum Dumping Height | mm | 3600 |
| Tire Model | — | 29.5R29 |
| Wheelbase | mm | 5444 |
| Wheel Tread | mm | 2660 |
| Fork Dimensions (L × W × T) | mm | 1800 × 400 × 135 |
| Operating Weight | t | 45 |
| Rated Loading Capacity | t | 40 |
| Steering Angle | ° | ±28 |
| Minimum Ground Clearance | mm | 400 |
| Unloading Angle | ° | 15.3 |
| Fuel Tank Capacity | L | 280 |
| Hydraulic Oil Tank Capacity | L | 280 |
