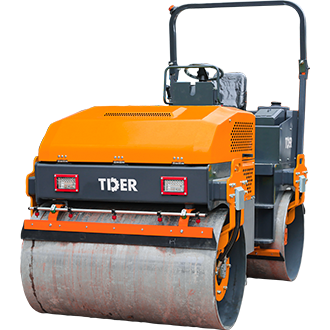

Name: 4 Ton Roller Compactor with Yanmar Engine Option
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Upgrade the Drive System When the Job Demands More

The standard configuration uses Ningbo Zhongyi travel motors, while imported Poclain travel motors are available as an option. A Yanmar engine is also available as an alternative to the standard Changchai ZN490. This gives buyers the ability to upgrade the engine or travel-drive configuration according to their local service network, operating requirements, and purchasing preference.

Easier Daily Maintenance Means Less Unplanned Downtime

For a machine working several hours a day, maintenance convenience matters as much as operating performance. The TR40-I is designed around routine inspection and servicing of its engine, hydraulic components, travel system, and vibration system, allowing operators to deal with oil checks, filter service, hydraulic inspection, and other regular maintenance without treating every service job as a major teardown.

Ride-On Operation for Longer Compaction Jobs

Unlike walk-behind rollers, the TR40-I puts the operator in a dedicated driving position. This matters when compaction continues for several hours: the operator controls travel, steering, and vibration from the seat instead of walking behind the machine and continuously handling its operating arm. It is a more practical layout for road sections that require repeated passes.

One Hydraulic System Handles Both Travel and Vibration

The TR40-I uses a full hydraulic configuration for dual-drum travel and vibration. A Danfoss high-pressure variable piston pump works with the hydraulic travel and vibration circuits, while continuously variable speed allows the operator to adjust machine movement to the compaction operation rather than relying on fixed mechanical gears.

Specifications

Travel	Travel Speed	km/h	0–12
	Turning Radius	mm	3600
	Gradeability	%	30
Engine	Engine Model	—	Changchai 490
	Engine Type	—	Vertical 4-Cylinder, Water-Cooled Diesel Engine
	Output Power	HP / rpm	49 / 2400
	Fuel Tank Capacity	L	36
	Optional Engines & Emission Standards	—	China Stage III / China Stage IV / EPA / Euro V
	Optional Engine Models	—	Changchai 490 / Yanmar 386; Other engines available upon request
Compaction	Static Line Load (Front / Rear)	N/cm	135 / 97
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	70
	Exciting Force	kN	50 × 2
Work	Drive Form	—	Hydraulic Dual-Wheel Drive
	Vibration Form	—	Hydraulic Vibration
	Vibrating Drums	—	Dual Drum Vibration
	Steering Form	—	Hydraulic Steering
	Spraying System	—	Electrically Controlled Pressure Atomized Water Spraying
Dimensions	Drum Width (Front / Rear)	mm	1400
	Drum Diameter (Front / Rear)	mm	810
	Overall Length	mm	3000
	Overall Width	mm	1560
	Overall Height (Excluding Bumper)	mm	2000
	Package Dimensions	mm	3000 × 1560 × 2000
Sprinkler System	Water Tank Material	—	Roto-Molded Water Tank
Sprinkler System	Water Tank Capacity	L	180
Capacity	Hydraulic Oil Tank Capacity	L	40 + 56
Capacity	Parking Brake	—	Hydraulic Locking
Weight	Net Weight	kg	3760
Weight	Operating Weight	kg	4000

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

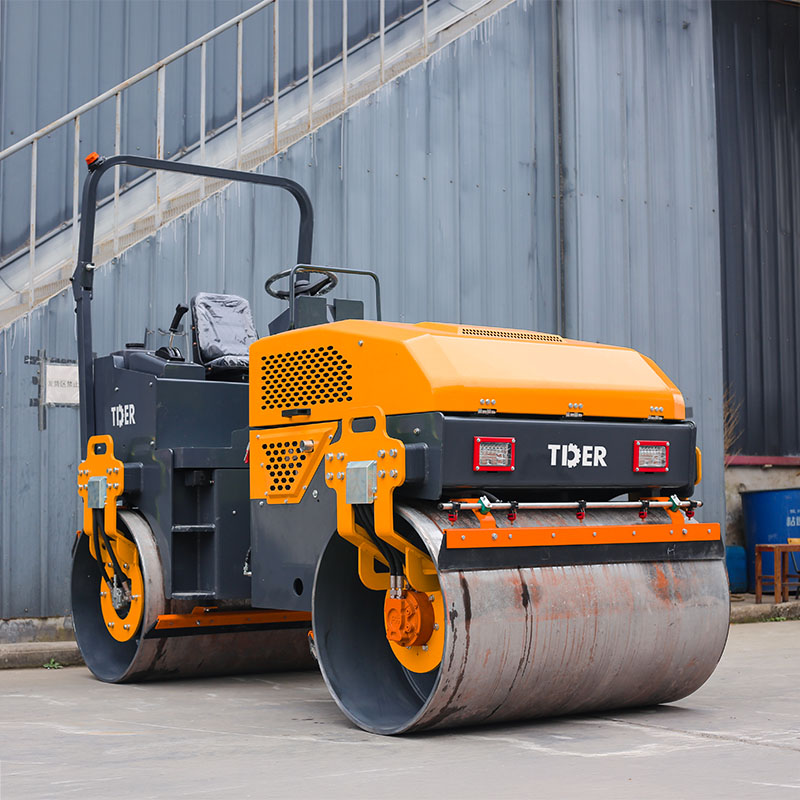

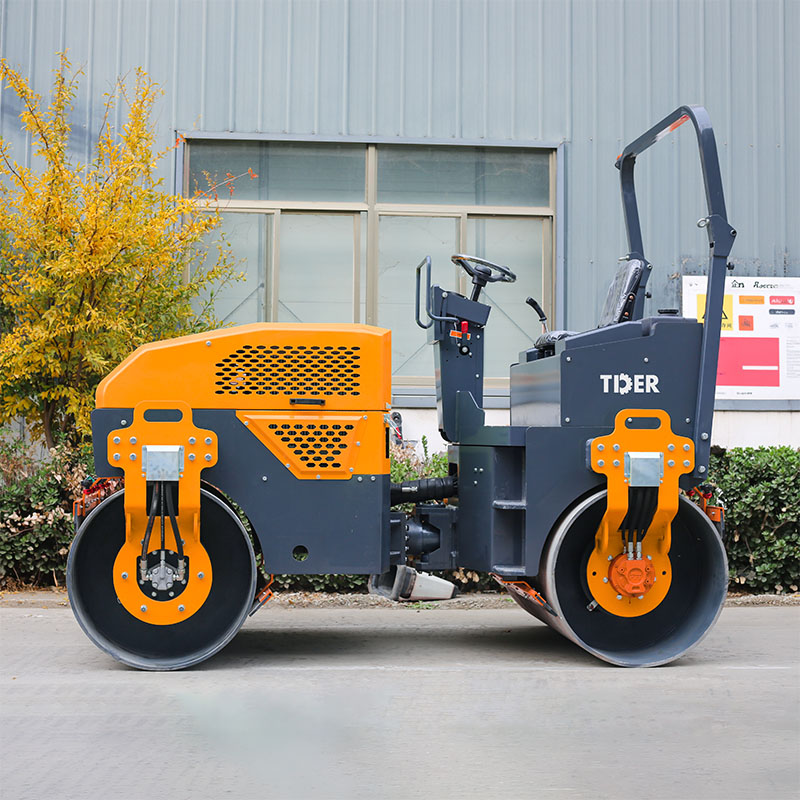

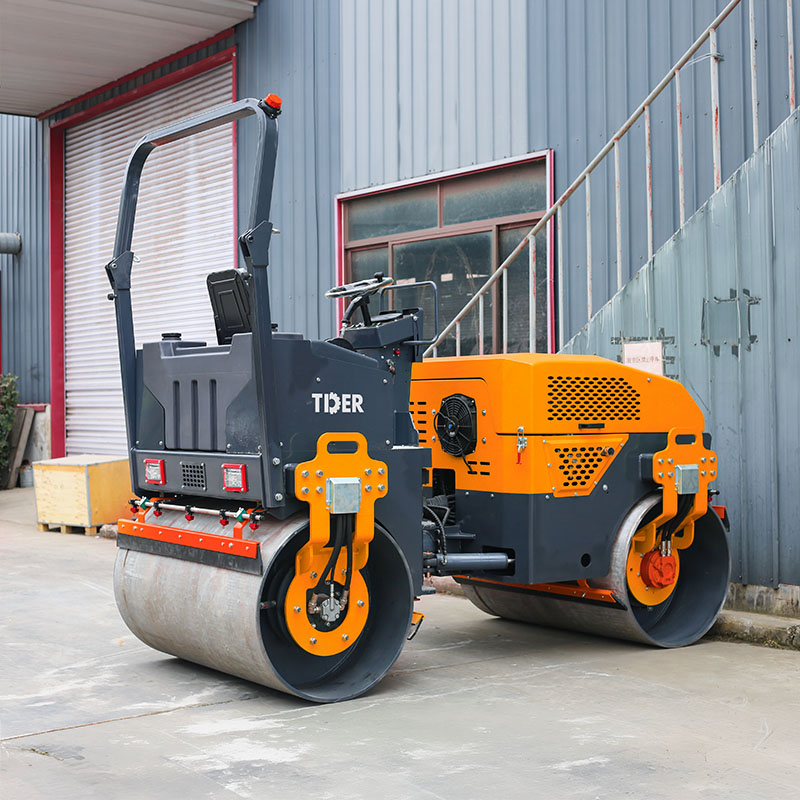

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
