Features

One Pass Combines Rolling and Pneumatic Tire Compaction

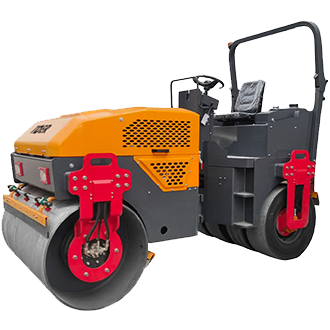

The TR40-II uses a 1,400 mm front steel drum and four 10.5/80-16 rear pneumatic tires in one machine. The front drum handles the primary rolling and hydraulic vibration, while the rear tire set follows the same working path. As a combination asphalt roller, the TR40-II brings steel-drum and pneumatic-tire compaction together in one machine.

Front Drum Vibration for Focused Compaction

Unlike a double-vibratory-drum configuration, the TR40-II concentrates hydraulic vibration on the front steel drum. The rear pneumatic tires remain non-vibrating, giving the machine a clear division between front-drum vibration and rear-tire rolling during operation.

Easy Access to Key Machine Functions

The TR40-II is arranged for straightforward access to its main operating and hydraulic functions. Travel, front-drum vibration, and water spraying can be controlled from the operator's station, keeping the main working functions within easy reach during daily compaction work.

Clear Working View from the Operator's Station

The front steel drum is positioned directly in the operator's working view, providing a clear view of the compaction area ahead. The simple control layout allows the operator to manage travel speed, front-drum vibration, and spraying while keeping attention on the working surface.

Specifications

Travel	Travel Speed	km/h	0–12
	Turning Radius	mm	3600
	Gradeability	%	30
Engine	Engine Model	—	Changchai 490
	Engine Type	—	Vertical 4-Cylinder, Water-Cooled Diesel Engine
	Output Power	HP / rpm	49 / 2400
	Fuel Tank Capacity	L	36
	Optional Engines & Emission Standards	—	China Stage III / China Stage IV / EPA / Euro V
	Optional Engine Models	—	Changchai 490 / Yanmar 386; Other engines available upon request
Compaction	Static Line Load (Front / Rear)	N/cm	135 / 97
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	70
	Exciting Force	kN	50
Work	Drive Form	—	Hydraulic Dual-Wheel Drive
	Vibration Form	—	Front Drum Hydraulic Vibration
	Steering Form	—	Hydraulic Steering
	Spraying System	—	Electrically Controlled Pressure Atomized Water/Oil Spraying
	Tires	—	10.5/80-16 × 4
Dimensions	Drum Width (Front / Rear)	mm	1400
	Drum Diameter (Front / Rear)	mm	810
	Overall Length	mm	3000
	Overall Width	mm	1560
	Overall Height (Excluding Bumper)	mm	2000
	Package Dimensions	mm	3000 × 1560 × 2000
Sprinkler System	Water Tank Material	—	Roto-Molded Water Tank
Sprinkler System	Water Tank Capacity	L	180
Capacity	Hydraulic Oil Tank Capacity	L	40 + 56
Capacity	Parking Brake	—	Hydraulic Locking
Weight	Net Weight	kg	3424
Weight	Operating Weight	kg	4000

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

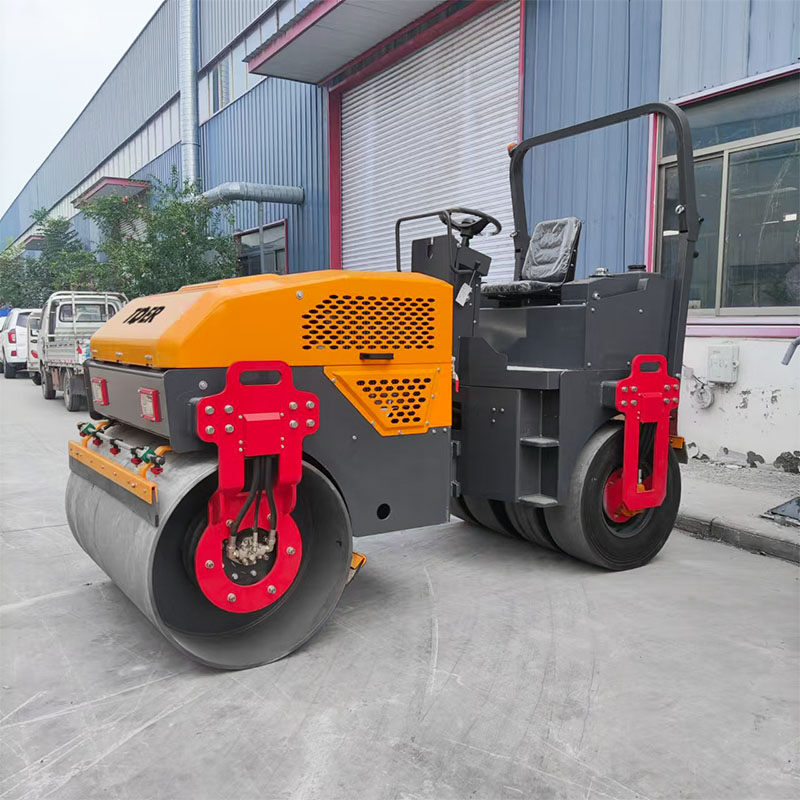

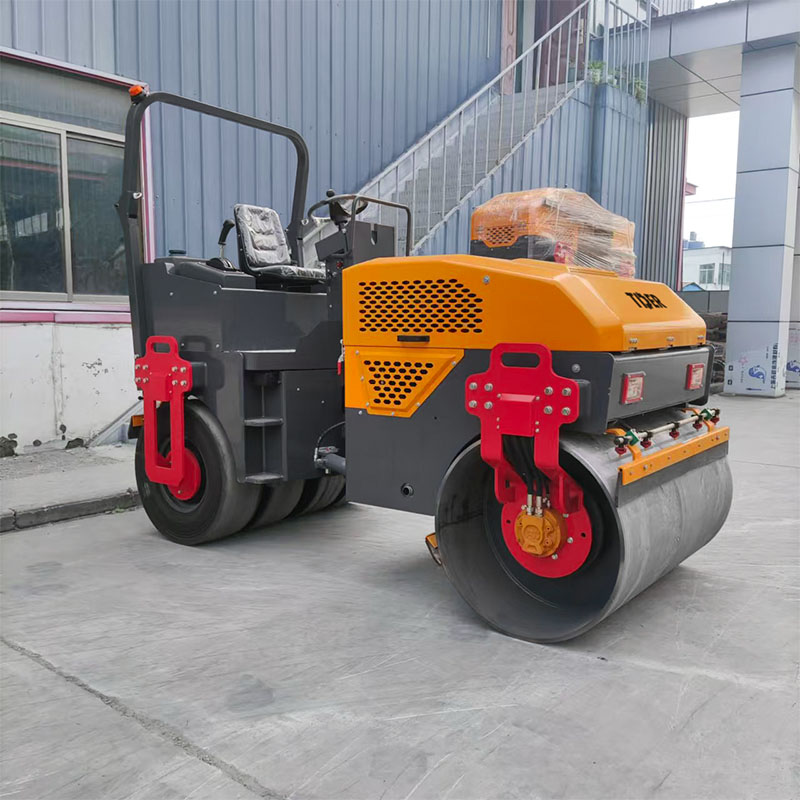

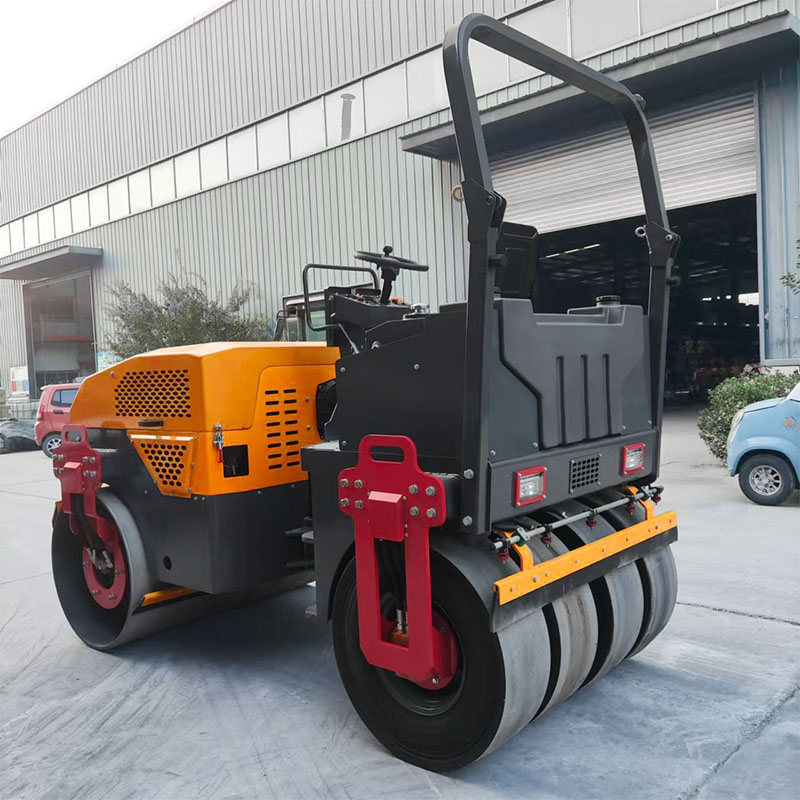

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
