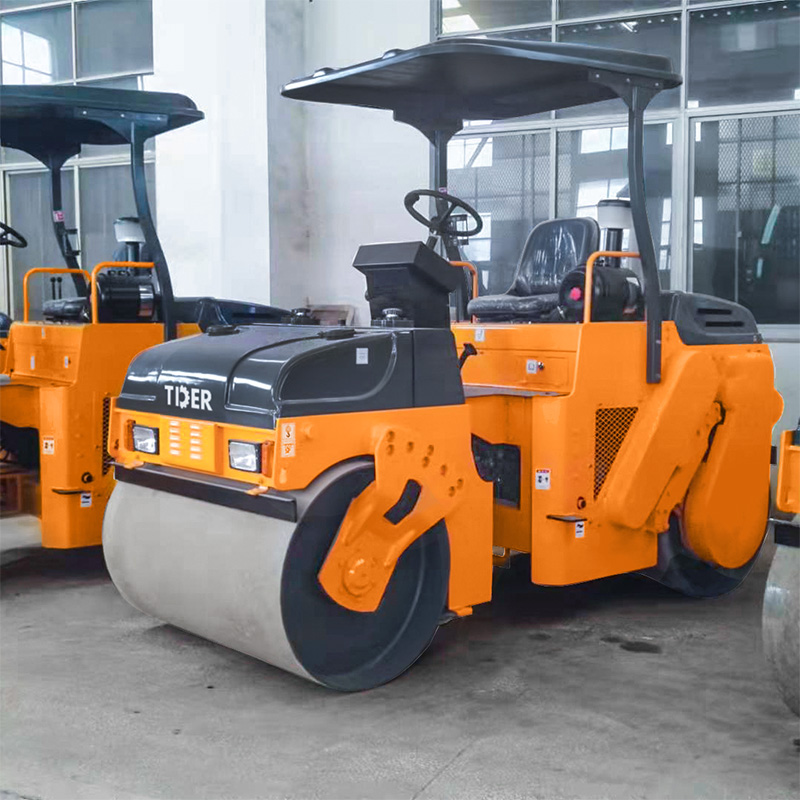

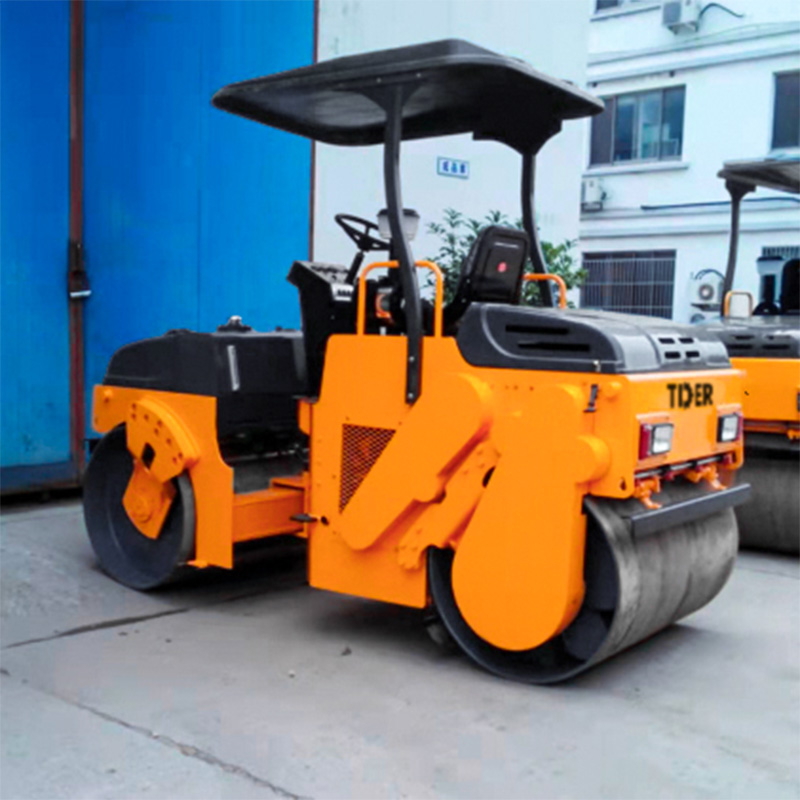

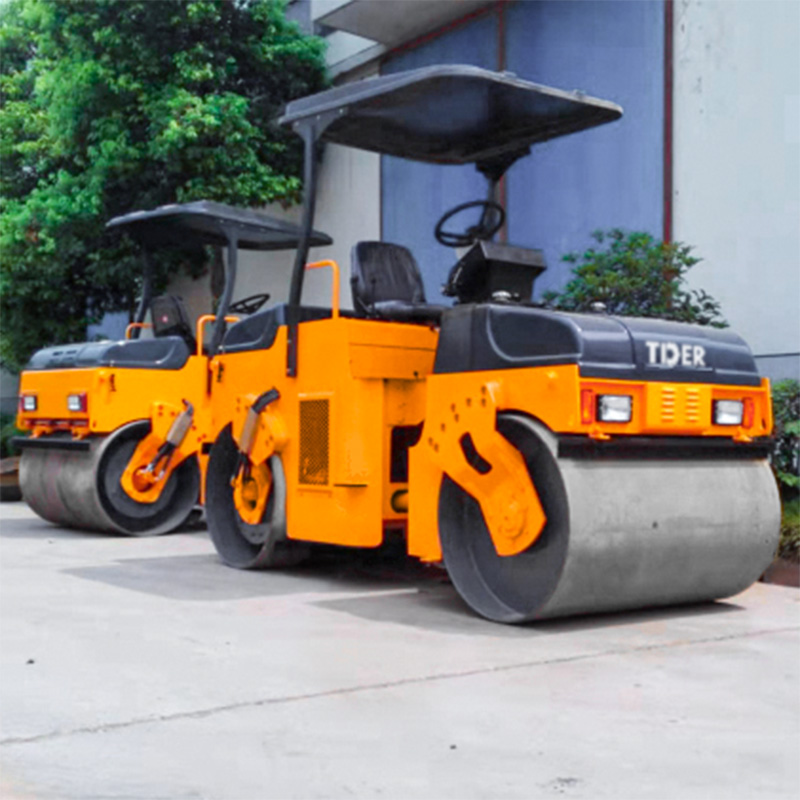

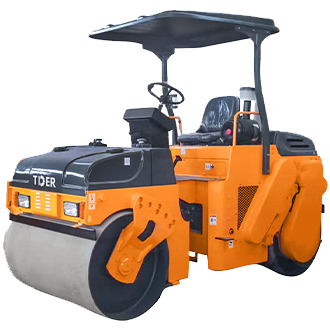

Name: 4 Ton Asphalt Machinery For Sale with Mechanical Drive
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Mechanical Rear-Wheel Drive for Direct Power Transfer

The TR40 uses a mechanical travel system with rear-wheel drive, transferring engine power directly through the mechanical drivetrain instead of using hydraulic travel motors. This straightforward drive configuration makes the machine easy to understand and suitable for conventional road compaction applications.

Two Travel Speeds for Different Working Conditions

Two selectable travel speeds allow the operator to choose a suitable speed for compaction work or machine movement. The mechanical two-speed transmission provides a simple way to switch between working and traveling conditions.

Articulated Frame with Hydraulic Steering

The articulated frame works together with hydraulic front-wheel steering, allowing the roller to change direction smoothly during road construction and repair work. The articulated structure also gives the machine a flexible steering layout for maneuvering around the jobsite.

Rear-Drum Hydraulic Vibration with High Excitation Force

The TR40 uses hydraulic vibration with single frequency and single amplitude, with vibration applied to the rear steel drum. Electronic vibration start-up provides direct control of the compaction function, while the large excitation force supports efficient compaction of asphalt surfaces.

Corrosion-Resistant Water Tank for Daily Roadwork

A large-capacity corrosion-resistant water tank is equipped with an electronically controlled pressure water-spraying system. The system provides controlled water application during asphalt compaction and is designed for repeated use in road construction and repair operations.

Optional Flatbed Trailer for Easier Site Transfer

A flatbed trailer is available as an option for the TR40, providing a dedicated solution for moving the roller between construction sites. This is particularly practical for contractors who frequently relocate the machine between different road projects.

Specifications

Compaction	Operating Weight	kg	4000
	Vibrating Drum Diameter	mm	860
	Compaction Width	mm	1300
	Static Linear Load	N/cm	185
	Minimum Ground Clearance	mm	210
	Wheelbase	mm	2280
	Minimum Turning Radius	mm	4800
	Theoretical Gradeability	%	20
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	52
	Exciting Force	kN	43
Travel	Travel Speed (I / II)	km/h	2.5 / 7.5
Engine	Engine Model	—	Xinchai C490BPG (China Stage II)
	Rated Power	kW	40
	Rated Speed	rpm	2650
Dimensions	Overall Dimensions (L × W × H)	mm	3180 × 1460 × 2560
Capacity	Fuel Tank Capacity	L	100
	Water Tank Capacity	L	250
	Hydraulic Oil Tank Capacity	L	85

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
