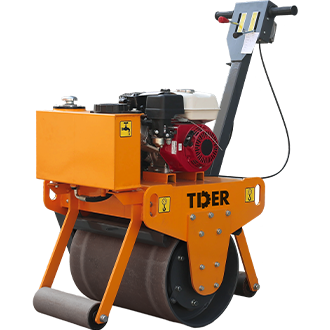

350kg Walk Behind Road Roller
TR035-II

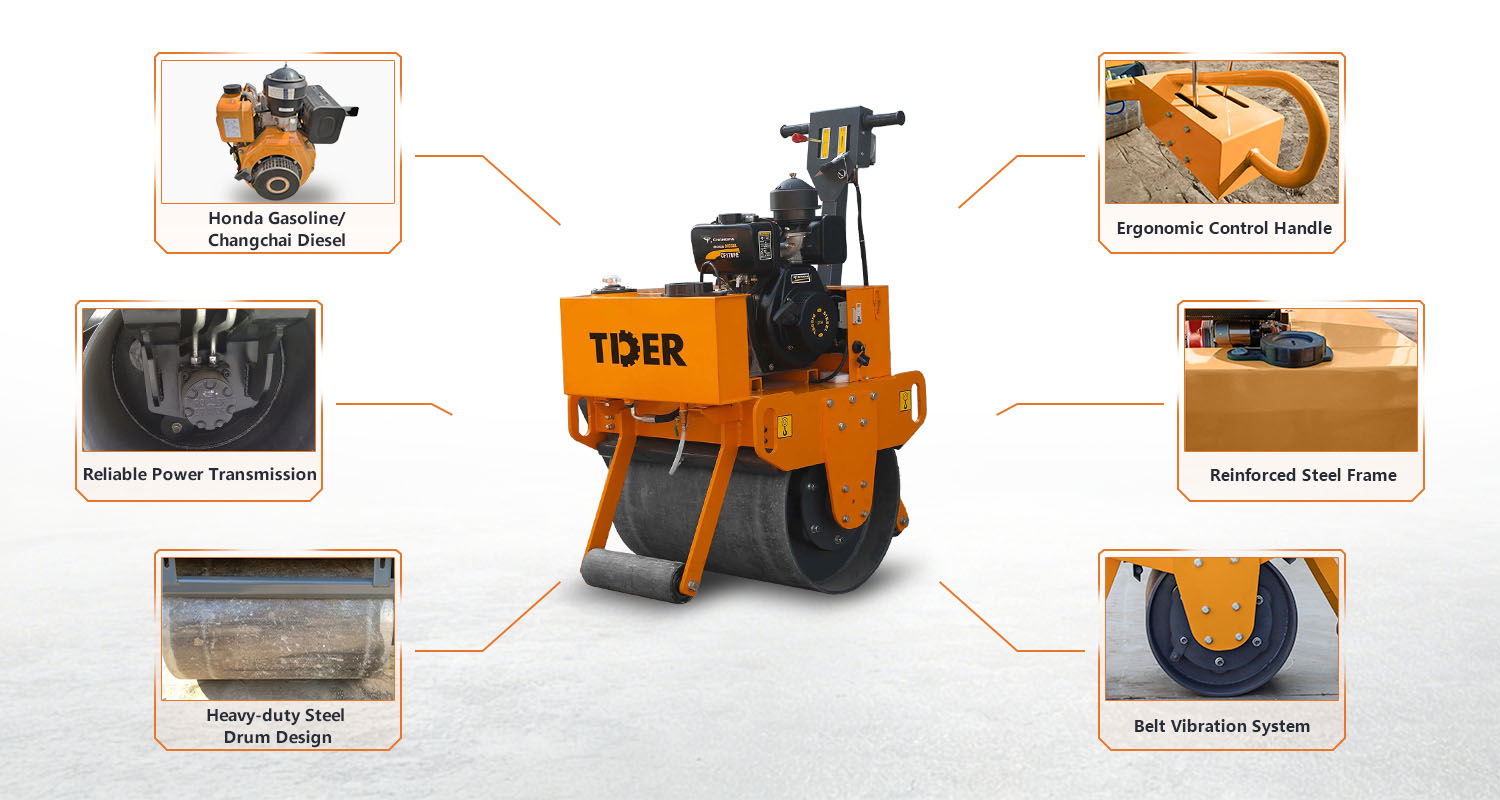

Features
Diesel Power for Demanding Compaction Work
Equipped with the Changfa 173 diesel engine, the TR035-II provides strong low-speed torque and reliable power output. The diesel power system is designed for stable performance during continuous construction operations, with an optional Euro V engine available for markets with stricter emission requirements.
Enhanced Operator Comfort and Edge Access
The TR035-II features an optimized operating mechanism and excellent edge clearance, allowing operators to work closer to curbs, walls, and other obstacles with improved control. The ergonomic design reduces operating effort during extended compaction tasks, providing a more comfortable and efficient working experience.
Durable Construction for Harsh Working Environments
The TR035-II is equipped with a robust iron water tank designed for enhanced durability and impact resistance during daily construction operations. Combined with a powder-coated surface treatment, the machine offers improved protection against rust and corrosion, helping maintain reliable performance in outdoor working conditions.
Specifications
| Travel System | Travel Speed | km/h | 0-4 |
| Gradeability | % | 25 | |
| Drive System | — | Hydraulic Control with Single Sprocket Chain Drive | |
| Engine | Engine Model | — | Changfa 173 Diesel Engine |
| Engine Type | — | Diesel Engine, Air-Cooled 4-Stroke | |
| Rated Power | hp/rpm | 5.5 / 3600 | |
| Optional Engines | — | Changfa 173 / Honda GX160 / Koop 173 / Briggs & Stratton (Other engines available upon request) | |
| Compaction Performance | Exciting Force | kN | 20 |
| Nominal Amplitude | mm | 0.5 | |
| Vibration Frequency | Hz | 75 | |
| Vibration Type | — | Centrifugal Clutch + Belt-Driven Vibration | |
| Capacity | Fuel Tank Capacity | L | 3.5 |
| Water Tank Capacity | L | 12 | |
| Water Tank Material | — | Steel Water Tank / Rotomolded Water Tank (Optional) | |
| Hydraulic Oil Tank Capacity | L | 6 | |
| Working Specifications | Drum Width | mm | 600 |
| Drum Diameter | mm | 426 | |
| Dimensions | Overall Length (Handle Folded) | mm | 1650 |
| Overall Width | mm | 760 | |
| Overall Height (Handle Raised) | mm | 1350 | |
| Weight | Net Weight | kg | 342 |
| Operating Weight | kg | 360 | |
| Packaging | Fumigation-Free Wooden Case Package | mm | 1130 × 850 × 1350 |
| Steel Frame Stackable Package | mm | 1130 × 860 × 2260 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

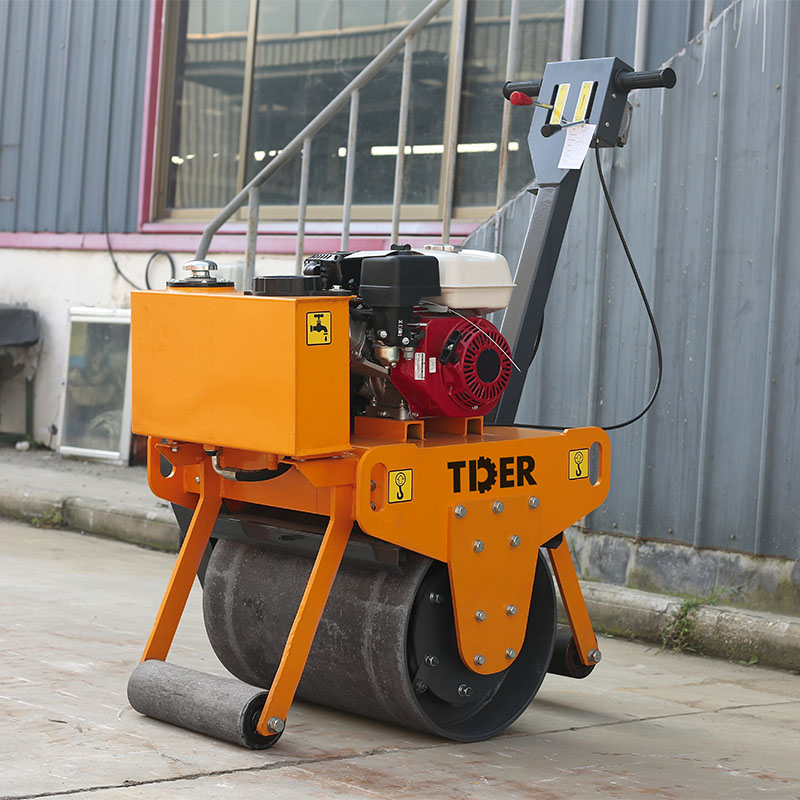

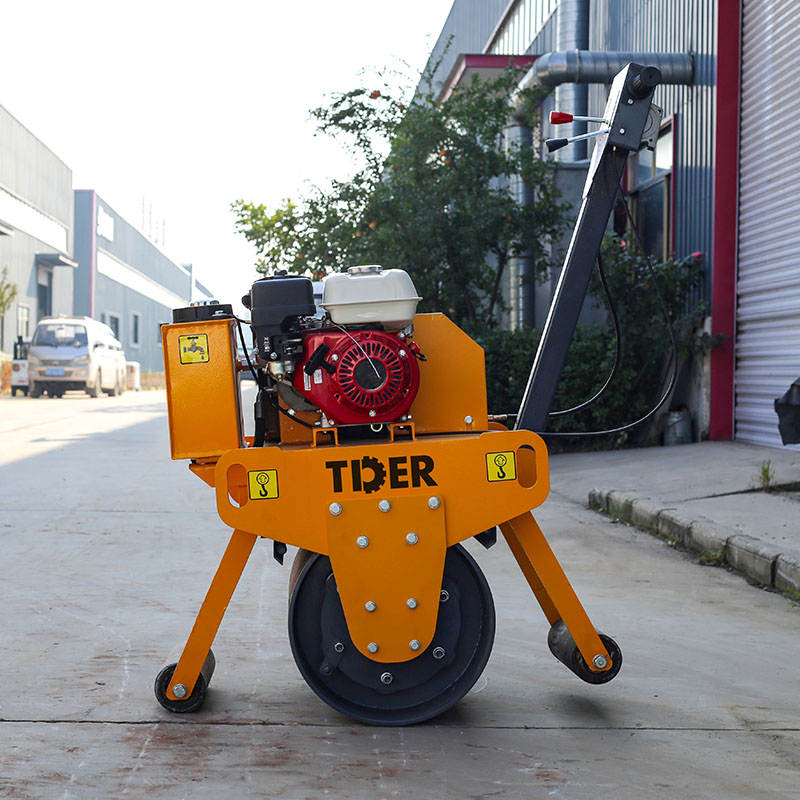

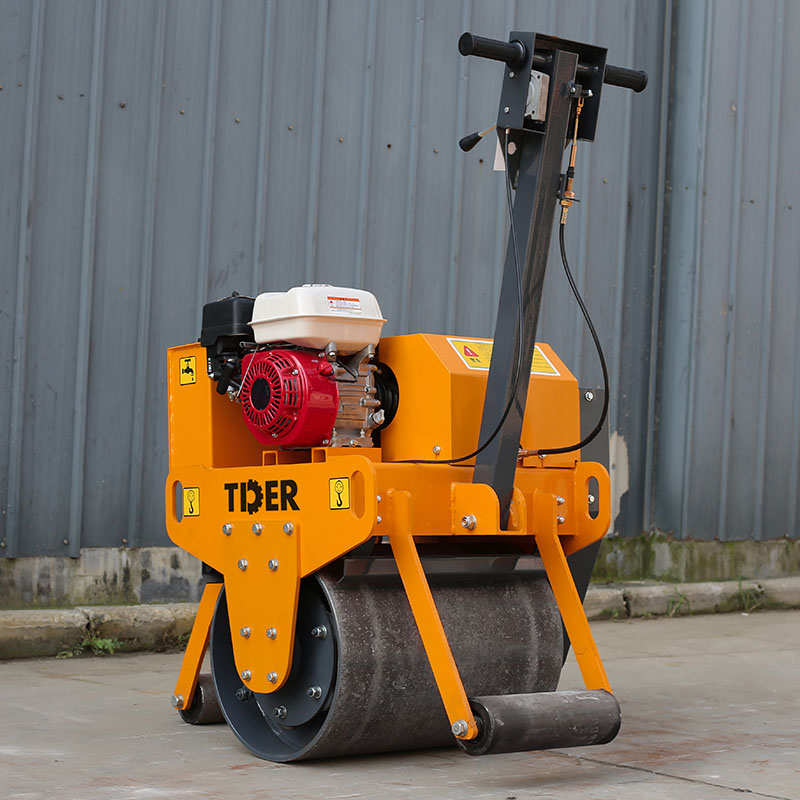

Product Showcase
