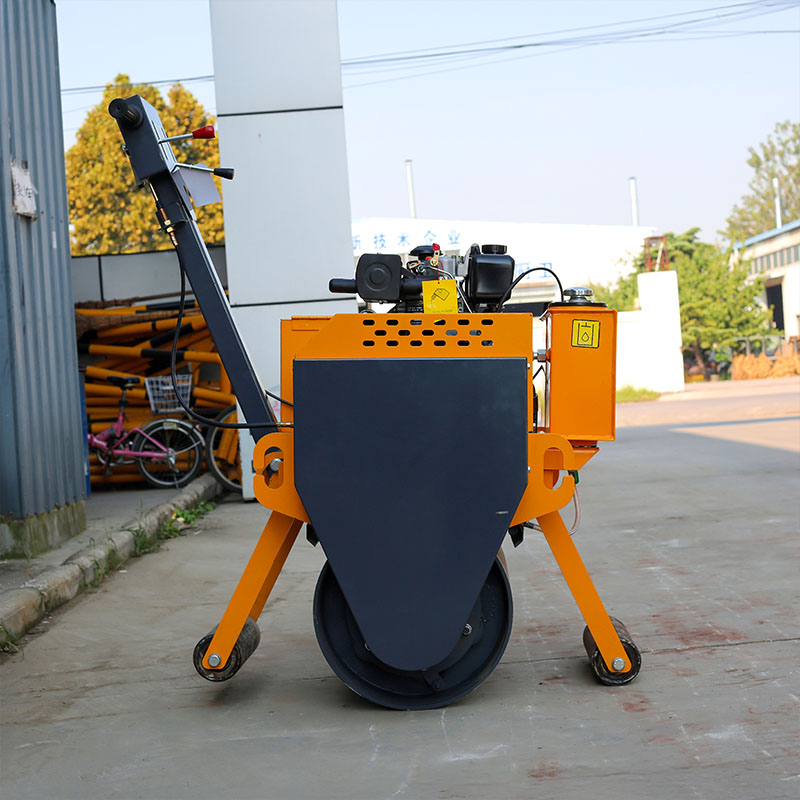

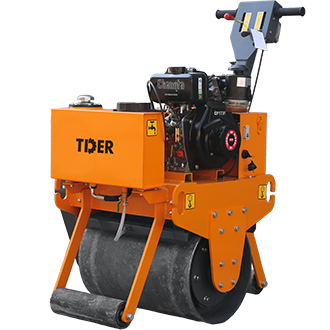

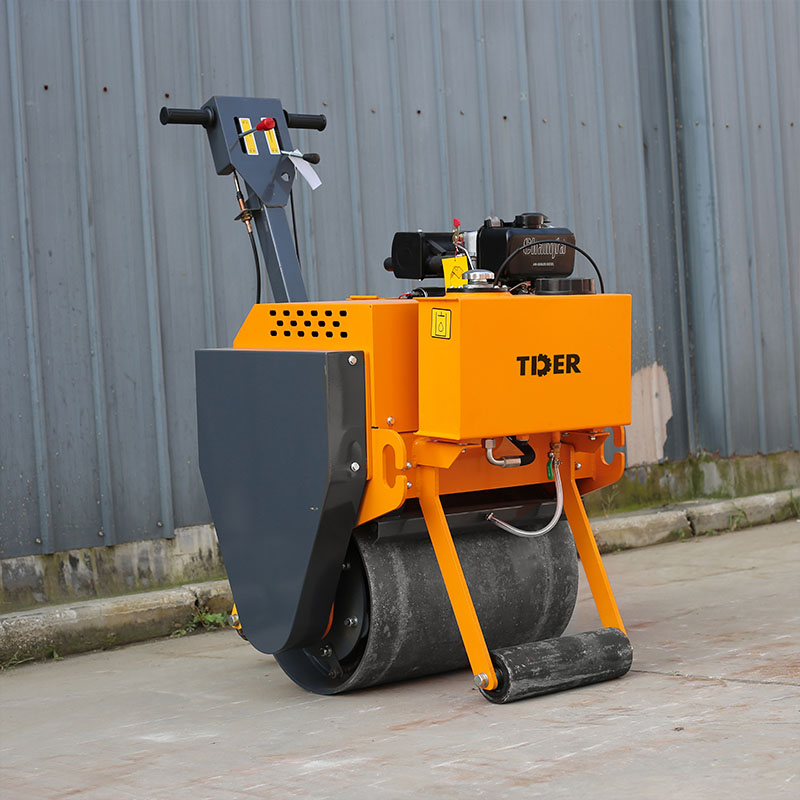

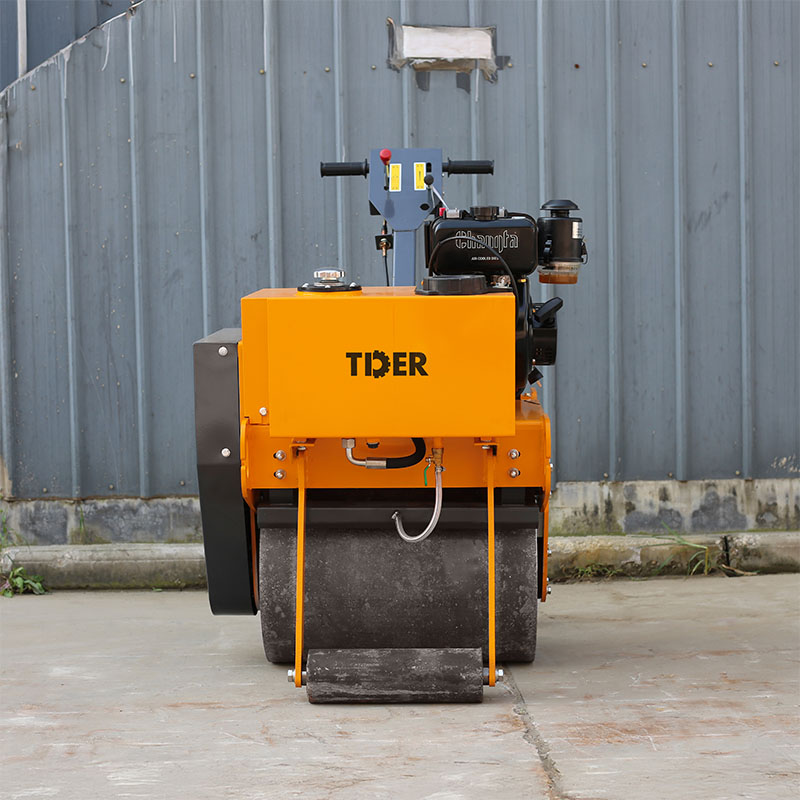

Name: 350kg Single Drum Walk Behind Roller
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Precise Compaction Control in Compact Working Areas

Designed with a walk-behind operating configuration, the TR035-I allows operators to maintain direct control over machine movement and compaction direction. It is ideal for asphalt repair, sidewalks, landscaping areas, playgrounds, and other locations where maneuverability and precise operation are essential.

Easy Handling with Hydraulic Travel System

The hydraulic drive system with single drum chain transmission provides smooth forward and reverse movement. The bidirectional travel function enables flexible operation with simple controls, allowing operators to adjust direction efficiently during compaction work.

Proven Honda Power for Reliable Operation

Powered by the original Honda GX160 gasoline engine, the TR035-I benefits from Honda’s globally recognized engine technology and proven reliability in construction and outdoor applications. The engine delivers stable power output, excellent starting performance, and efficient fuel consumption, providing dependable support for daily compaction tasks with easy maintenance.

Durable Construction for Long-Term Use

The main shaft adopts Japanese YFH high-precision mounted spherical bearings to ensure smooth drum rotation and reliable mechanical performance. The powder-coated surface treatment improves rust resistance and corrosion protection, helping maintain durability in outdoor applications.

Specifications

Travel System	Travel Speed	km/h	0-4
	Gradeability	%	25
	Drive System	—	Hydraulic Control with Single Sprocket Chain Drive
Engine	Engine Model	—	Honda GX160
	Engine Type	—	Gasoline Engine, Air-Cooled 4-Stroke
	Rated Power	hp/rpm	5.5 / 3600
	Optional Engines	—	Changfa 173 / Honda GX160 / Koop 173 / Briggs & Stratton (Other engines available upon request)
Compaction Performance	Exciting Force	kN	20
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	75
	Vibration Type	—	Centrifugal Clutch + Belt-Driven Vibration
Capacity	Fuel Tank Capacity	L	3.5
	Water Tank Capacity	L	12
	Water Tank Material	—	Steel Water Tank / Rotomolded Water Tank (Optional)
	Hydraulic Oil Tank Capacity	L	6
Working Specifications	Steel Drum Width	mm	600
Working Specifications	Steel Drum Diameter	mm	426
Dimensions	Overall Length (Handle Folded)	mm	1650
	Overall Width	mm	760
	Overall Height (Handle Raised)	mm	1350
Weight	Net Weight	kg	305
Weight	Operating Weight	kg	350
Packaging	Fumigation-Free Wooden Case Package	mm	1130 × 850 × 1350
Packaging	Steel Frame Stackable Package	mm	1130 × 860 × 2260

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
