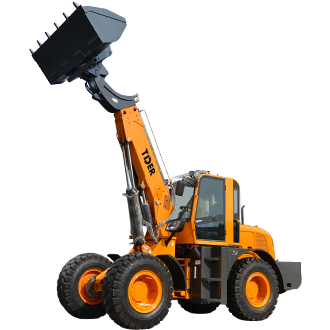

3.5 Ton Telescopic Loader
ZT935T
Features
5.3m High-Reach Platform for Expanded Loading Applications
The ZT935T combines a 3.5-ton rated load, 5,300mm unloading height, and 1.5m³ toothed bucket to extend working possibilities beyond standard loaders. The elevated boom design allows easier loading into higher trucks, stacking materials at greater heights, and handling tasks where additional vertical reach is required.
Six-Cylinder Weichai Engine with Optimized Drivetrain for Continuous Work Cycles
Powered by a Weichai WP6125E22 six-cylinder engine delivering 92kW, the ZT935T provides strong power reserves for repeated loading operations. The combination of a 315 transmission and hydraulic torque converter helps maintain stable output during acceleration, reversing, and frequent working cycles.
Load-Matched Travel System for Better Control During Material Transfer
The ZT935T features a 28 drive axle, four-wheel-drive layout, and 17.5-25 tires designed for handling heavy loads with improved balance and traction. The reinforced travel system helps maintain smoother movement when transporting materials between different working areas.
Intelligent Hydraulic Operation for Smoother Working Cycles
The ZT935T integrates a hydraulic pilot single-handle control system, four-section valve, boom damping, and bucket angle control to improve operation accuracy. These functions reduce unnecessary adjustments during lifting and loading, helping operators complete repetitive tasks with greater efficiency.
Specifications
| Rated load | kg | 3500 |
| Engnie | WEICHAI | |
| Rated Power | KW | 92 |
| Overall Length | mm | 7500 |
| Overall Width | mm | 2280 |
| Overall Height | mm | 3200 |
| Max. Discharge height | mm | 5300 |
| Min. Discharge height | mm | 3900 |
| Bucket Capacity | m³ | 1.5 |
| Bucket Type | Heavy-duty bolt on teeth | |
| Max. Load | 3500 including bucket or attachment | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Service Brake | Four wheel disc brake | |
| Parking Brake | Disc brake | |
| Tire Model | G2 pattern 17.5-25 Tyre G2 | |
| Wheel base | mm | 2800 |
| Wheel Track | mm | 1750 |
| System pressure | Mpa | 20 |
| Weight | kg | 8000 |

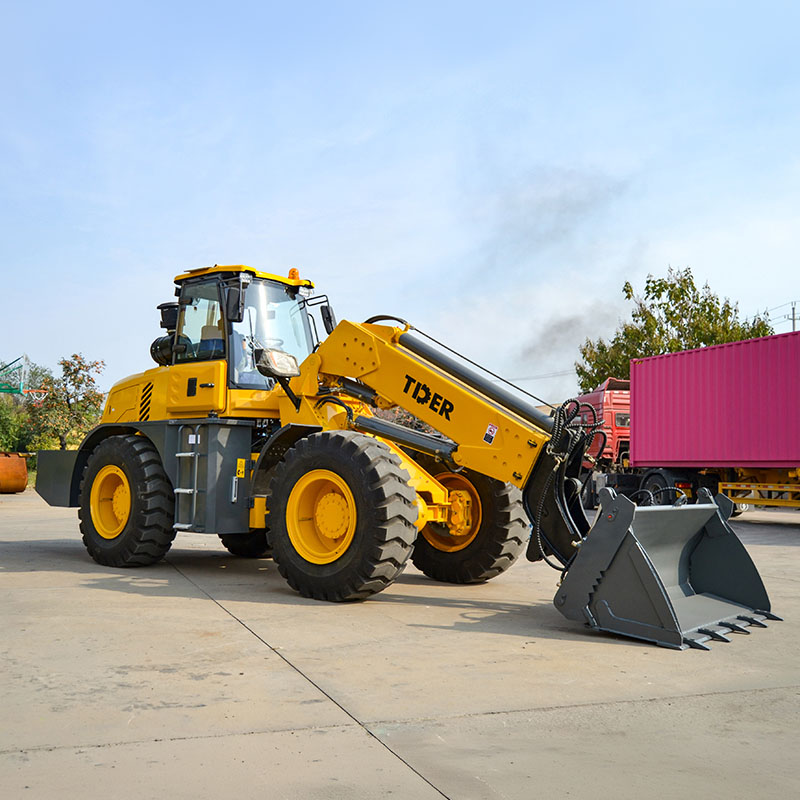

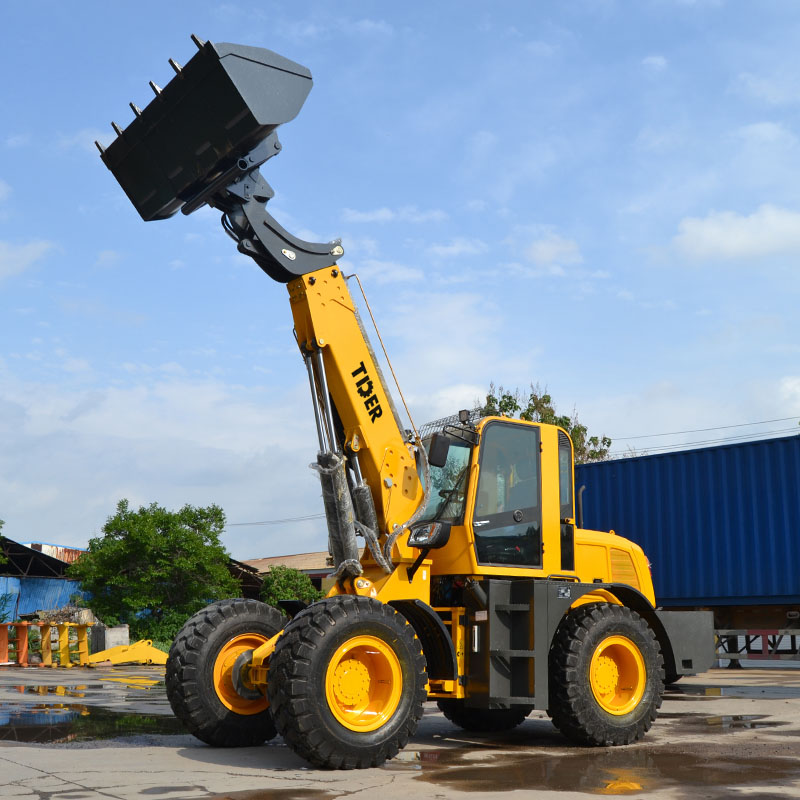

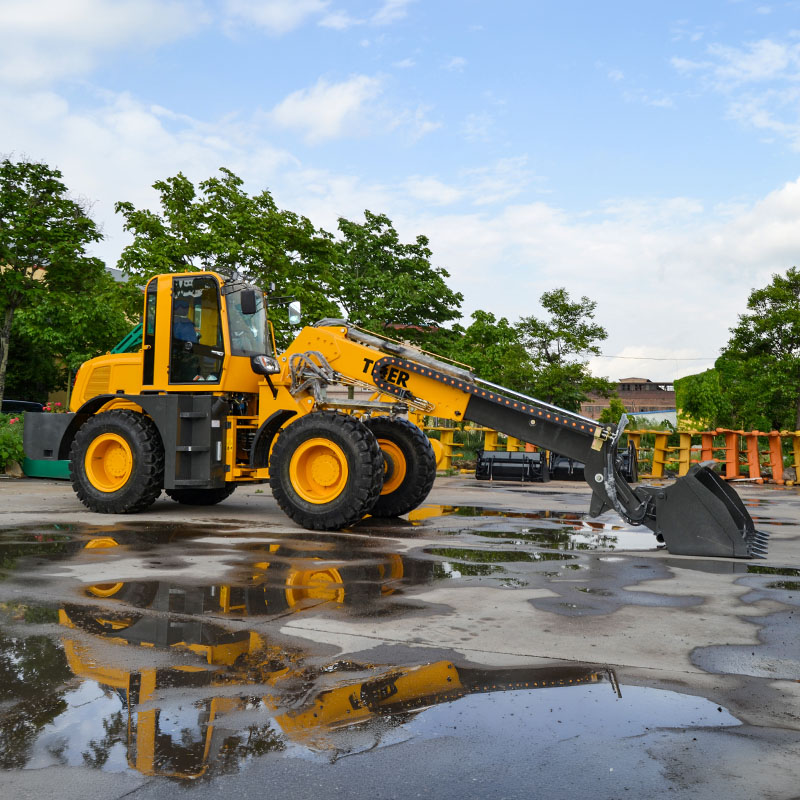

Product Showcase
