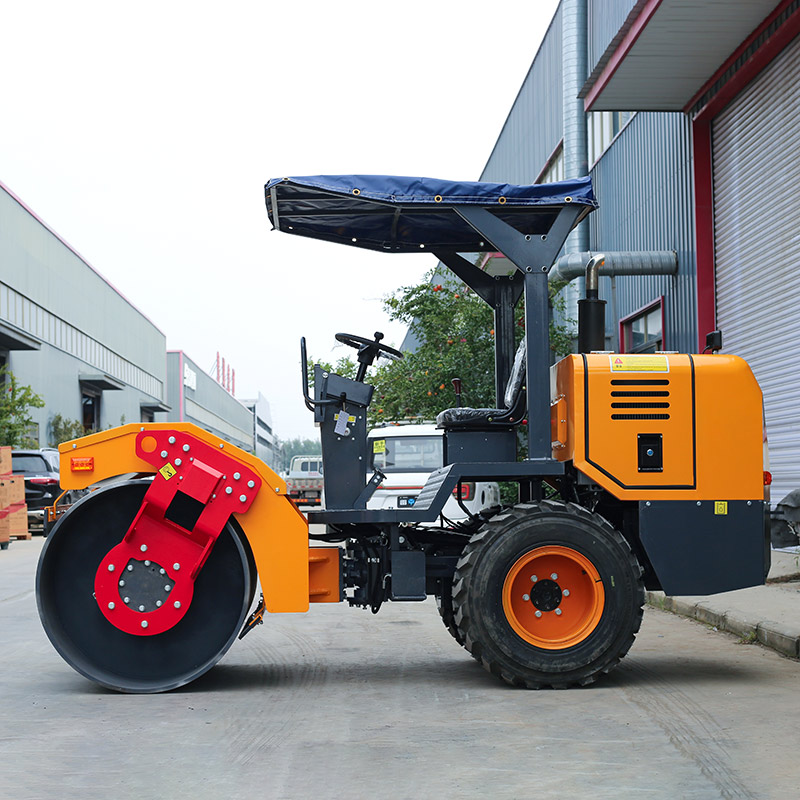

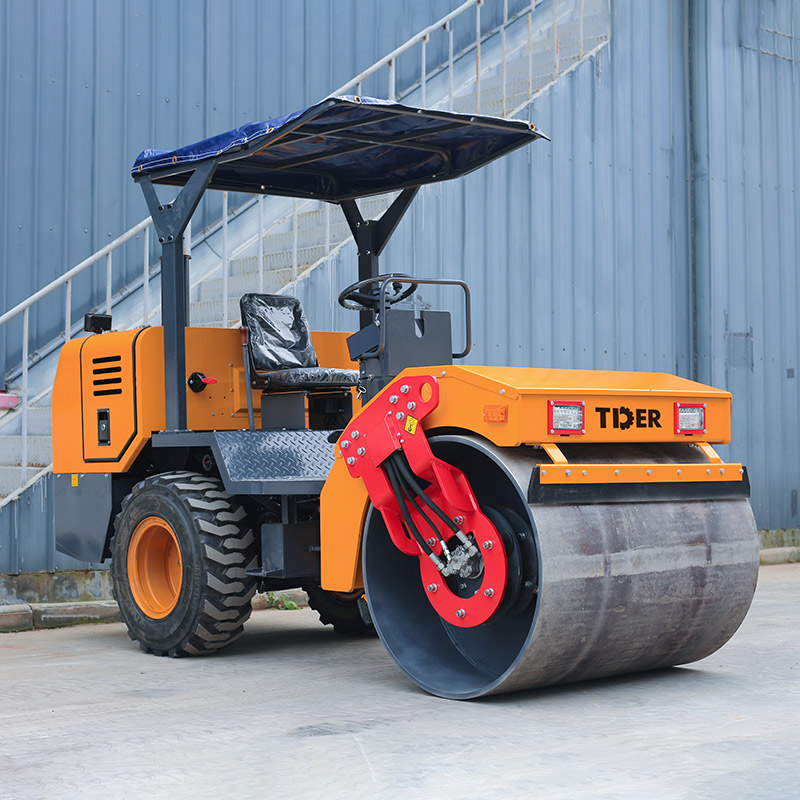

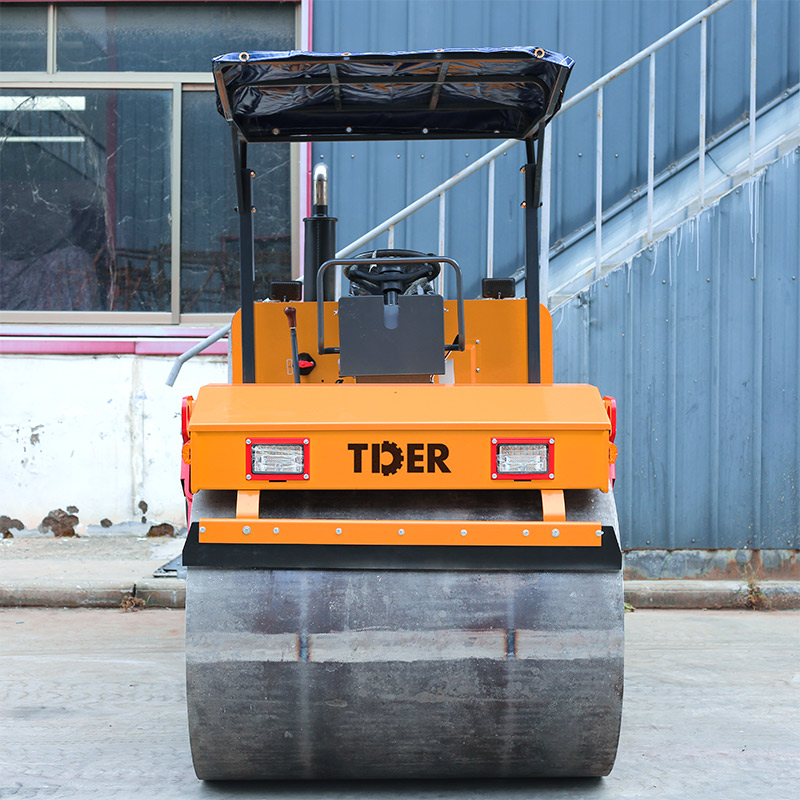

Name: 3.5 Ton Steel Wheeled Roller with Clutch-Free Drive
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Rear-Tire Drive for Direct and Reliable Power Transfer

The TR35 transfers engine power through a mechanical gearbox and rear axle directly to its two 12-16.5 rear tires, eliminating the need for a separate travel motor. This straightforward drivetrain provides reliable traction during forward movement and repeated compaction passes while keeping the propulsion system mechanically simple. With fewer hydraulic components dedicated to travel, the configuration also makes the drive system easier to understand, service, and maintain.

Clutch-Free Mechanical Transmission for Easier Operation

The TR35 combines a mechanical transmission with a clutch-free operating design, so the operator does not need to repeatedly engage a clutch pedal during routine driving. This reduces the number of control actions required when starting, stopping, changing speed, and repositioning the roller. For operators working through repeated compaction cycles, the simplified transmission layout helps make daily driving more straightforward and less physically demanding.

Pin-Type Edge Design for Effective Close-to-Edge Compaction

The TR35 features a pin-type edge design that helps the steel drum work closer to curbs, road shoulders, walls, and other boundaries. This configuration improves access to edge sections where a conventional drum layout may leave narrow strips of material insufficiently compacted. By allowing the steel wheeled roller to work more effectively near boundaries, the design helps achieve more complete compaction coverage across the working area.

Specifications

Travel	Maximum Travel Speed	km/h	0–8
	Gradeability	%	30
	Minimum Turning Radius	mm	4600
Compaction	Static Linear Load	N/cm	125
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	70
	Exciting Force	kN	55
Work	Drive Form	—	Rear-Wheel Drive
	Vibration Form	—	Hydraulic Vibration
	Steering Form	—	Hydraulic Steering
Engine	Engine Model	—	Changchai 390
	Engine Type	—	3-Cylinder, Water-Cooled Diesel Engine
	Output Power	HP / rpm	39 / 2600
	Fuel Tank Capacity	L	60
	Optional Engines & Emission Standards	—	China Stage II / China Stage IV / EPA / Euro V
	Optional Engine Models	—	Changchai 390 / Kubota D1105; Other engines available upon request
Capacity	Hydraulic Oil Tank Capacity	L	48
Dimensions	Front Drum Width	mm	1200
	Front Drum Diameter	mm	920
	Overall Length	mm	3600
	Overall Width	mm	1350
	Overall Height	mm	2300
	Wheelbase	mm	1680
	Overall Dimensions (L × W × H)	mm	3600 × 1350 × 2300
Weight	Net Weight	kg	2750
Weight	Operating Weight	kg	3500

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
