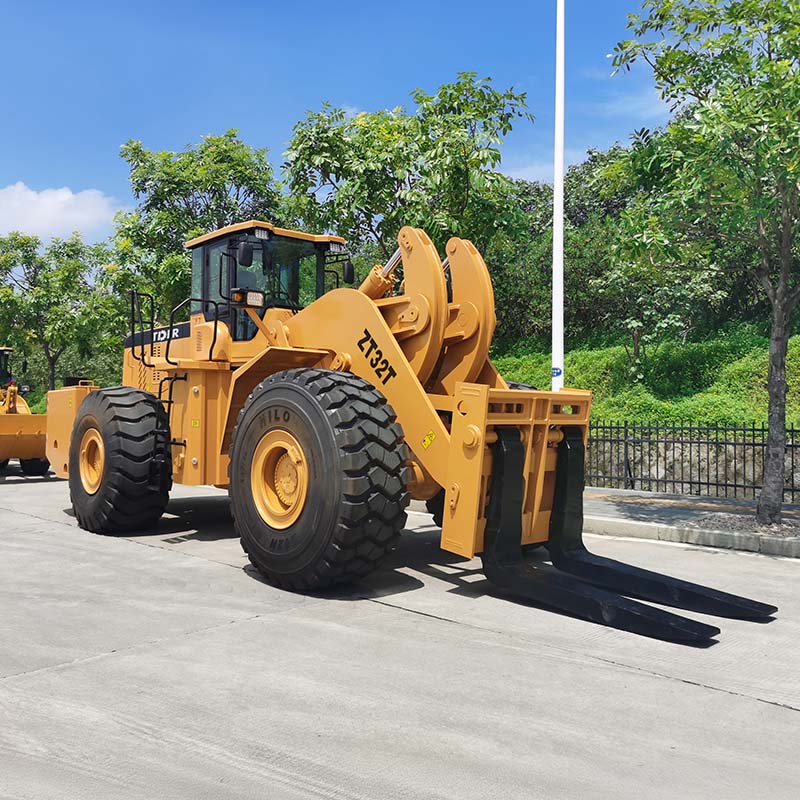

32 Ton Forklift Loader
ZT32T
Features

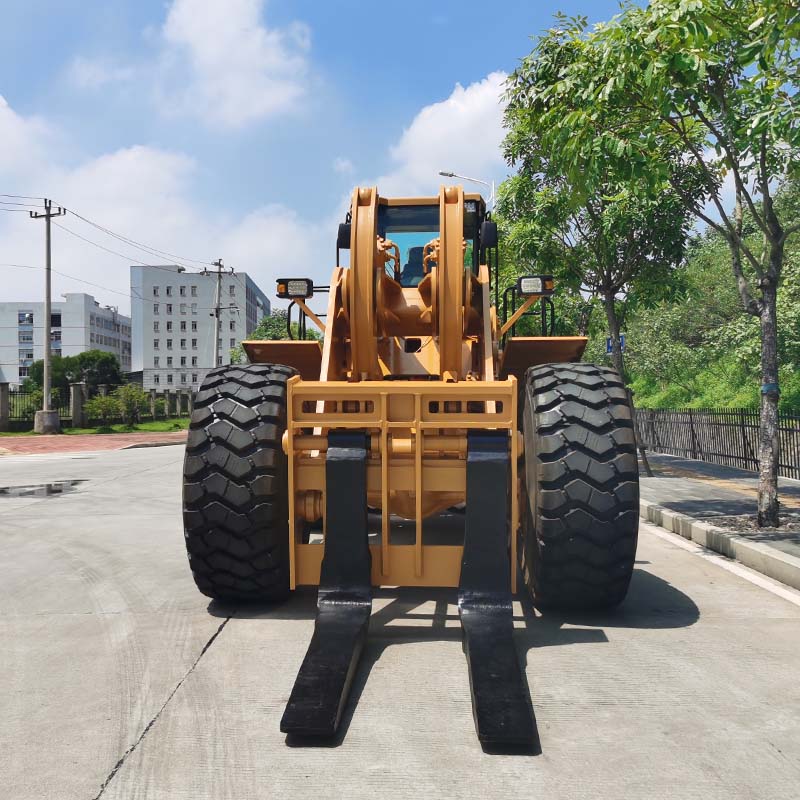

Oversized Fork Structure with Large-Bore Lift Cylinders for Stable Heavy Load Handling
The ZT32T is equipped with 1700×350×142mm heavy-duty forks and large-bore lifting cylinders, providing stronger lifting force and improved load stability when handling oversized industrial materials. The optimized fork and lifting structure reduces load shaking during lifting and positioning, helping operators complete heavy-duty handling tasks with greater confidence.
Weichai Engine Platform with Strong Service Support and Operating Economy
Powered by a Weichai WD10G270E201 engine with 199kW output, the ZT32T adopts a proven industrial power platform widely used in heavy equipment applications. The mature engine design provides efficient fuel utilization, convenient maintenance access, and strong parts availability, helping reduce ownership costs throughout long-term operation.
Large-Size Pneumatic Tire System for Smoother Heavy Load Transport
Equipped with 29.5-25 pneumatic tires, the ZT32T provides enhanced cushioning performance compared with solid tire solutions. The reinforced rubber compound and large contact area help absorb ground impact, improving stability and reducing vibration during heavy material transportation.
LED Lighting System for Efficient Long-Hour Operation
The LED lighting system provides brighter illumination with lower energy consumption and longer service life. This improves visibility during night operations while reducing maintenance frequency for continuous industrial applications.
Specifications
| Engine | — | Weichai |
| Rated Power | kW | 199 |
| Overall Length | mm | 9900 |
| Overall Width (Outside of Tires) | mm | 3300 |
| Overall Height | mm | 3900 |
| Maximum Dumping Height | mm | 3600 |
| Tire Model | — | 29.5-25 |
| Wheelbase | mm | 4400 |
| Wheel Tread | mm | 2700 |
| Fork Dimensions (L × W × H) | mm | 1700 × 350 × 142 |
| Operating Weight | kg | 35000 |
| Rated Loading Capacity | t | 32 |
| Maximum Loading Capacity | t | 35 (at 1800 mm) |
| Maximum Climbing Gradient | ° | 28 |
| Maximum Breakout Force | kN | 331 |
| Maximum Torque | N·m | 920 |
| Rated Speed | rpm | 2200 |
| Lifting Time | s | 6.8 |
| Hydraulic Cylinder Time | s | ≤12.55 |
| Forward Gear I Speed | km/h | 0–11.5 |
| Forward Gear II Speed | km/h | 0–38 |
| Reverse Gear I Speed | km/h | 0–16 |
