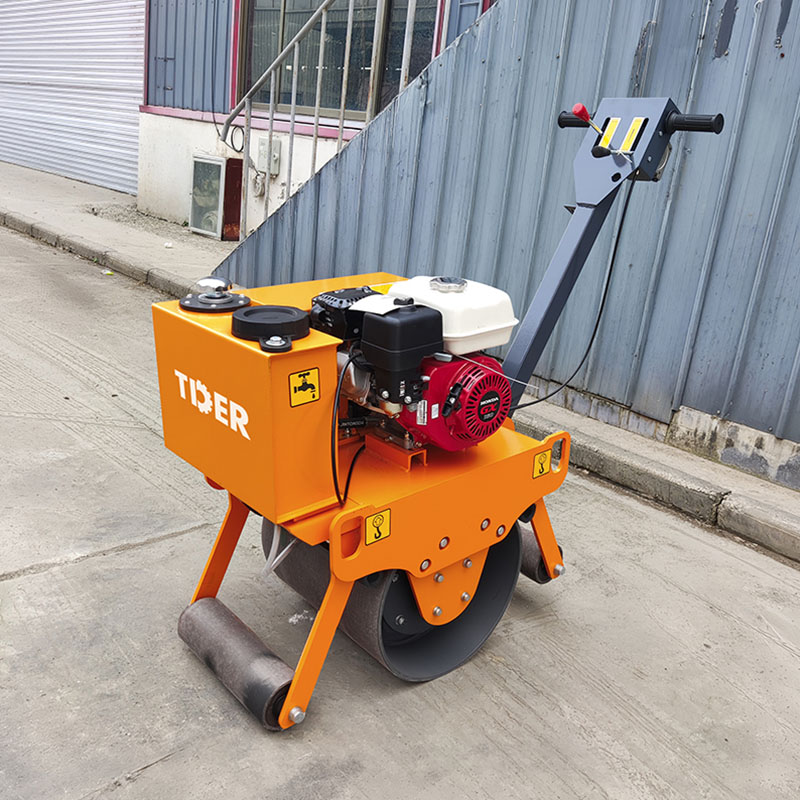

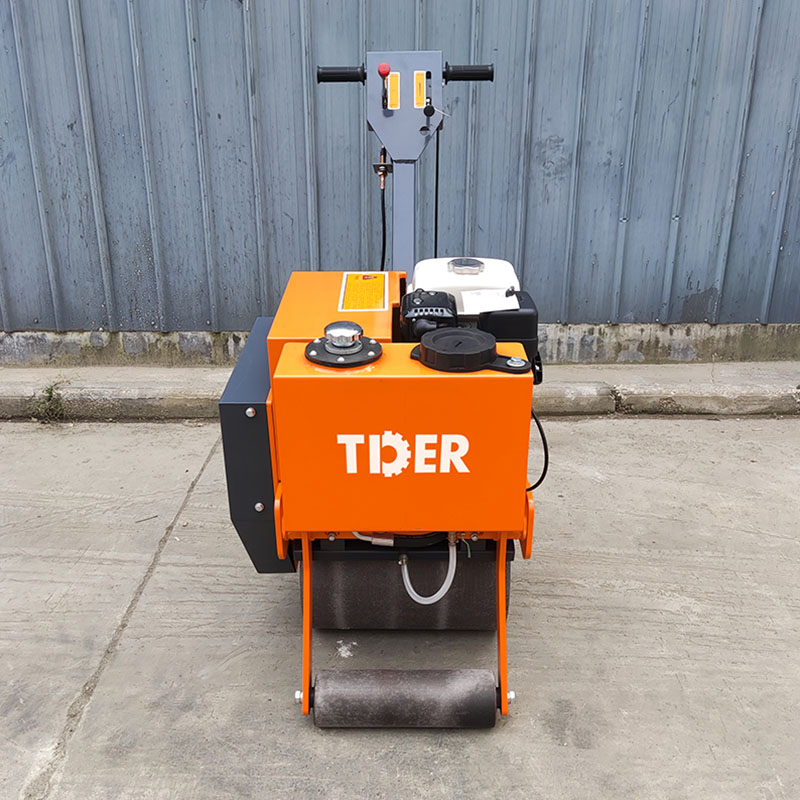

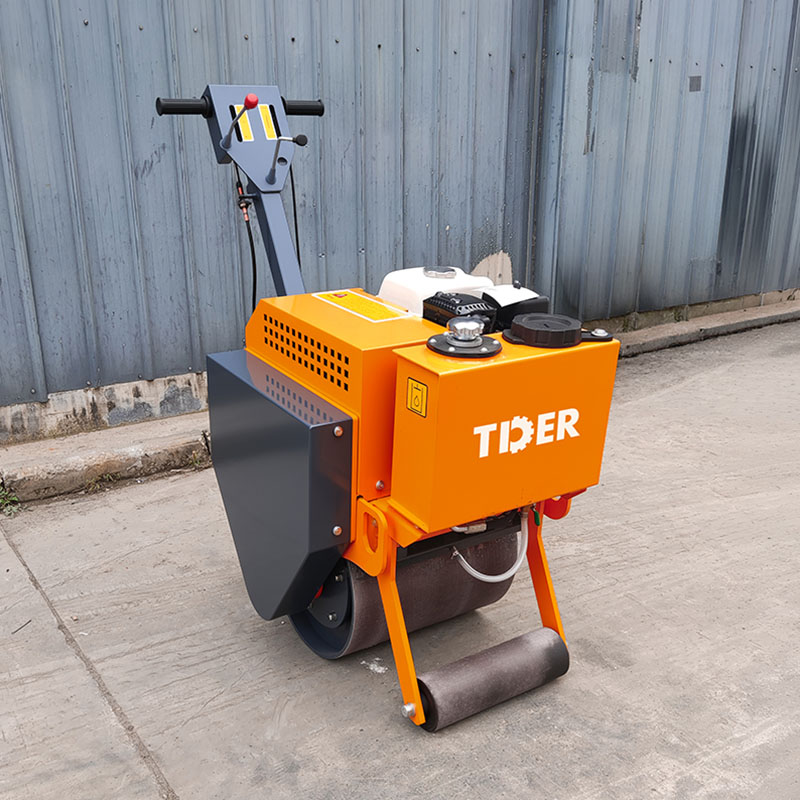

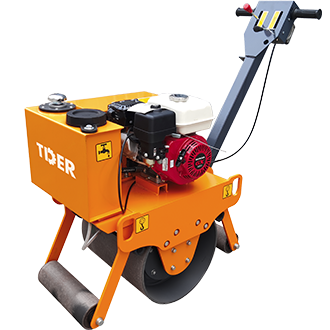

Name: 300kg Walk Behind Roller with Honda GX160 Engine
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Compact Design for Versatile Compaction Applications

The TR03 is designed for asphalt surface compaction, gravel roads, sand and soil foundations, lawns, playgrounds, and other small-scale compaction tasks. With a compact structure and 300kg operating weight, it provides excellent maneuverability and is ideal for working in narrow areas where larger rollers cannot access.

Reliable Honda Power for Easy Operation

Equipped with the original Honda GX160 gasoline engine, the TR03 delivers stable power output, excellent reliability, and easy starting performance. The proven engine design ensures dependable operation with simple maintenance requirements for daily construction tasks.

Flexible Hydraulic Travel for Precise Control

The hydraulic drive system with single drum chain transmission provides smooth forward and reverse movement. The bidirectional hydraulic travel system allows a small turning radius, flexible maneuvering, and easy operation, improving working efficiency in confined spaces.

Durable Components for Long Service Life

The TR03 uses high-precision Japanese YFH mounted spherical bearings on the main shaft to ensure smooth operation and improve overall equipment durability. The hydraulic components, including the Shanghai Dazhong pump and reliable reversing valve system, provide stable performance during continuous compaction work.

Corrosion-Resistant Finish for Outdoor Use

The machine surface adopts powder coating treatment, providing an attractive appearance while improving rust resistance and corrosion protection. This helps maintain equipment durability when operating in outdoor construction environments.

Specifications

Travel System	Engine	—	Honda GX160
	Travel Speed	km/h	0-4
	Gradeability	%	25
Engine	Engine Type	—	Gasoline Engine, Air-Cooled 4-Stroke
	Rated Power	hp/rpm	5.5/3600
	Optional Engines	—	Honda 160 / Briggs & Stratton 5HP (Other engines available upon request)
Compaction Performance	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	75
	Exciting Force	kN	15
	Vibration Type	—	Centrifugal Clutch + Belt-Driven Vibration
Capacity	Fuel Tank Capacity	L	3.5
	Water Tank Capacity	L	12
	Hydraulic Oil Tank Capacity	L	6
Working Specifications	Steel Drum Width	mm	450
	Steel Drum Diameter	mm	426
	Drive System	—	Hydraulic Control with Single Sprocket Chain Drive
Dimensions	Overall Length (Handle Folded)	mm	1650
	Overall Width	mm	590
	Overall Height (Handle Raised)	mm	1350
Weight	Net Weight	kg	260
Weight	Operating Weight	kg	300
Packaging	Fumigation-Free Wooden Case Package	mm	900 × 640 × 1110
Packaging	Steel Frame Stackable Package	mm	900 × 600 × 2050

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
