3.0 Ton Telescopic Loader
ZT930T
Features
High-Efficiency Material Handling with Extended Working Capability

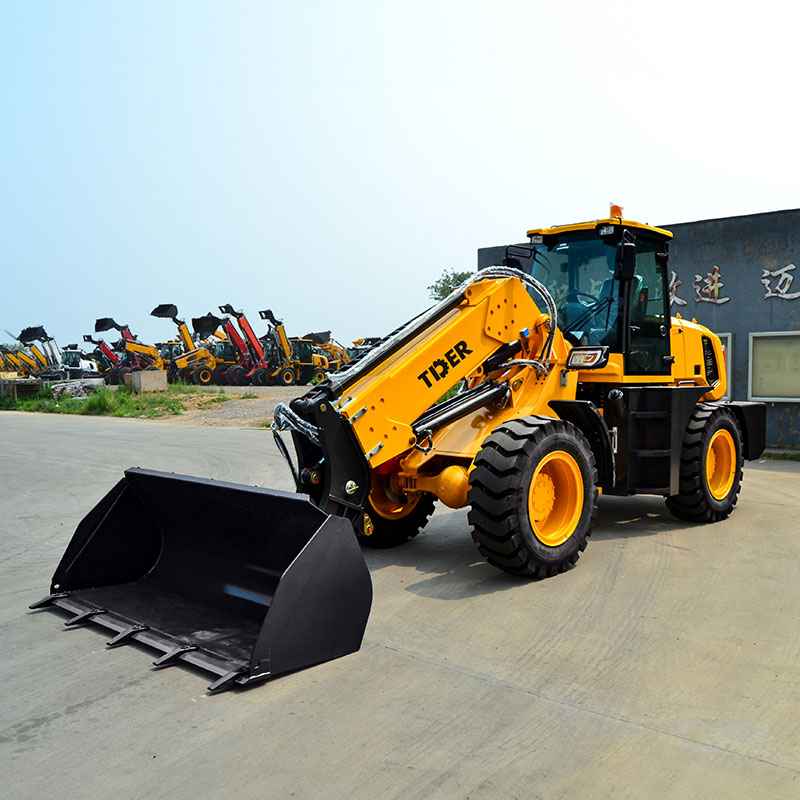

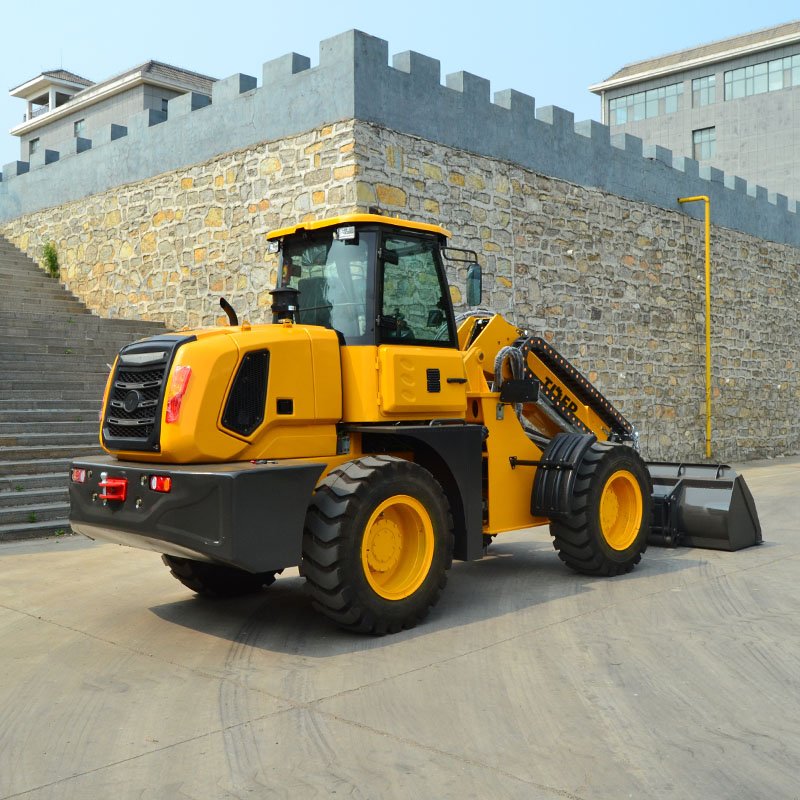

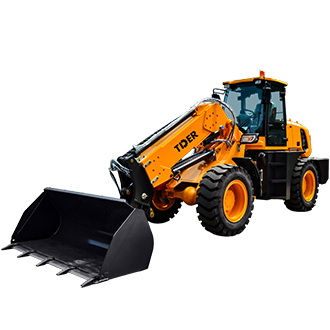

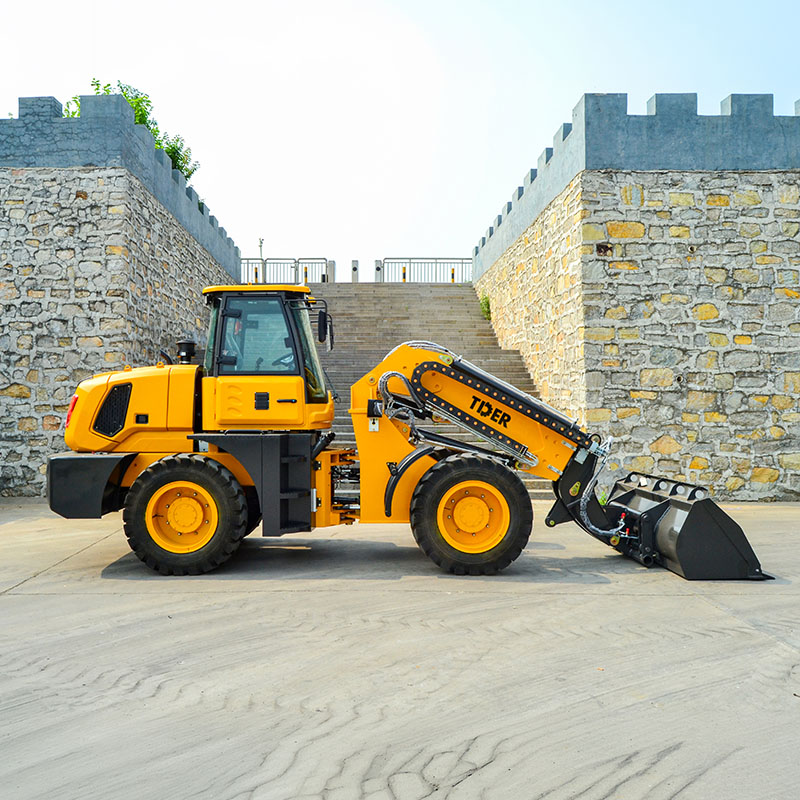

The ZT930T combines a 3-ton lifting capacity, 5,000mm unloading height, and 1.5m³ toothed bucket to improve productivity in daily material handling operations. The optimized loading capacity and working range allow operators to move more material per cycle while maintaining the flexibility required for stacking, loading, and transportation tasks.
Dual-Speed Torque Converter Powertrain for Smooth Heavy-Duty Cycles
Powered by a Yuchai 85kW engine with a 280 dual-speed transmission and hydraulic torque converter system, the ZT930T delivers smooth power response during frequent loading, reversing, and transportation operations. The dual-speed design provides better adaptability between working and traveling conditions, improving efficiency while reducing operator effort.
Stable Load Control with Reinforced Drivetrain and Intelligent Boom Functions
The ZT930T integrates a large wheel-side axle, four-wheel-drive system, 16/70-24 herringbone tires, boom damping, and bucket angle control to improve stability and precision during loaded operations. These systems help reduce vibration, maintain smoother material handling, and improve control accuracy during repeated working cycles.
Pilot Hydraulic Control System and Operator-Focused Cab for Higher Productivity
Equipped with a four-section hydraulic pilot joystick, single-handle control, adjustable LCD display, suspension seat, rear-view camera, LED lighting, and heating system, the ZT930T provides intuitive operation and a comfortable working environment. The ergonomic design helps operators maintain consistent productivity during long working hours.
Specifications
| Rated load | kg | 3000 |
| Engnie | YTO / 4A2Z-G93Q-3 | |
| Rated Power | KW | 85 |
| Overall Length | mm | 7200 |
| Overall Width | mm | 2200 |
| Overall Height | mm | 3000 |
| Max. Discharge height | mm | 5000 |
| Min. Discharge height | mm | 3800 |
| Bucket Capacity | m³ | 1.5 |
| Bucket Type | Heavy-duty bolt on teeth | |
| Max. Load | 3000 including bucket or attachment | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Service Brake | Four wheel disc brake | |
| Parking Brake | Disc brake | |
| Tire Model | 16/70-24 Semi-solid Tyre | |
| Wheel base | mm | 2800 |
| Wheel Track | mm | 1750 |
| System pressure | Mpa | 20 |
| Weight | kg | 7000 |
