Name: 3 Ton Static Asphalt Roller with Dual-Row Pneumatic Tires
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Pneumatic Tire Kneading for Effective Asphalt Compaction

The TR30-III uses nine pneumatic tires to create a flexible kneading action during static rolling. Tire deformation generates vertical as well as lateral forces within the compacted layer, helping aggregate particles interlock and reducing surface voids. This makes the roller particularly effective for asphalt finishing and sealing applications.

Four-Front, Five-Rear Tire Layout for Consistent Coverage

The TR30-III features four front tires with a 1160mm working width and five rear tires covering 1380mm. The staggered multi-tire arrangement provides broad surface coverage and helps distribute rolling pressure across the pavement, supporting uniform results over each pass.

Static Rolling Without Vibration for Controlled Surface Finishing

Designed as a non-vibratory roller, the TR30-III compacts through static tire pressure rather than dynamic vibration. This makes it suitable for applications where controlled surface treatment is required, including asphalt finishing, sealing, and compaction work where excessive vibration is undesirable.

Hydraulic Steering for Easier Directional Control

The hydraulic steering system provides smooth directional changes with reduced steering effort. This allows the operator to make frequent corrections more comfortably when following curves, working along pavement edges, or maneuvering through relatively confined construction areas.

Specifications

Travel	Travel Speed	km/h	0–8
	Turning Radius	mm	3000
	Gradeability	%	30
Engine	Engine Model	—	Changchai 390
	Engine Type	—	Vertical 3-Cylinder, Water-Cooled Diesel Engine
	Output Power	HP / rpm	39 / 2600
	Fuel Tank Capacity	L	36
	Optional Engines & Emission Standards	—	China Stage II / China Stage IV / EPA / Euro V
	Optional Engine Models	—	Changchai 390 / Honda GX690 / Briggs & Stratton / Kubota D1105; Other engines available upon request
Compaction	Static Line Load (Front / Rear)	N/cm	125 / 87
Work	Drive Form	—	Hydraulic Drive
	Steering Form	—	Hydraulic Steering
	Spraying System	—	Electrically Controlled Pressure Atomized Water Spraying
Dimensions	Tires	—	4 Front / 5 Rear
	Overall Length	mm	2700
	Overall Width	mm	1500
	Overall Height (Excluding Bumper)	mm	1900
	Package Dimensions	mm	2800 × 1550 × 1900
Sprinkler System	Water Tank Material	—	Roto-Molded Water Tank
Sprinkler System	Water Tank Capacity	L	180
Capacity	Hydraulic Oil Tank Capacity	L	40
Weight	Net Weight	kg	2320
Weight	Operating Weight	kg	3000

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

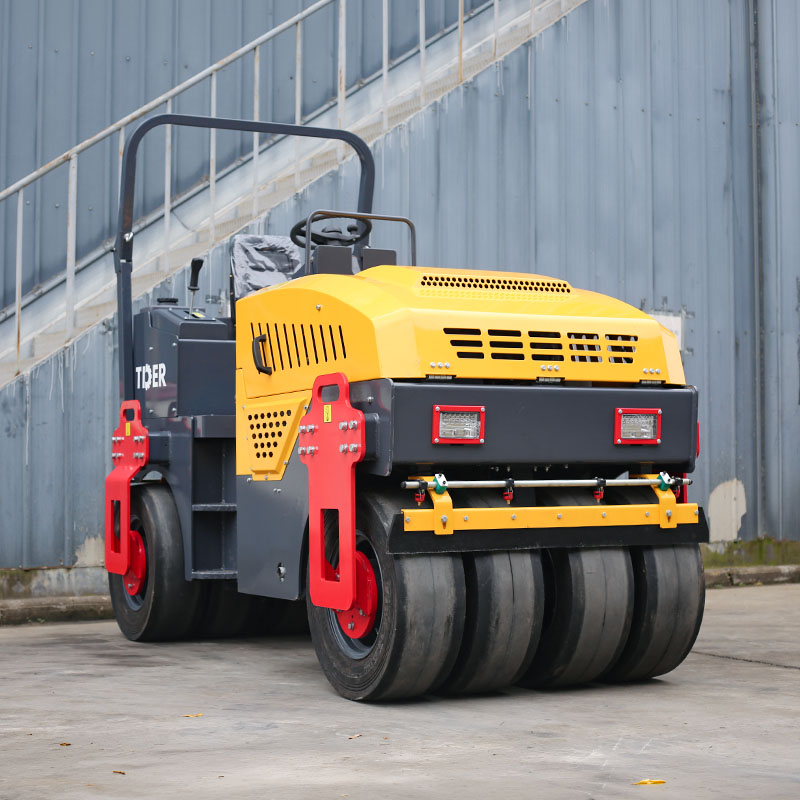

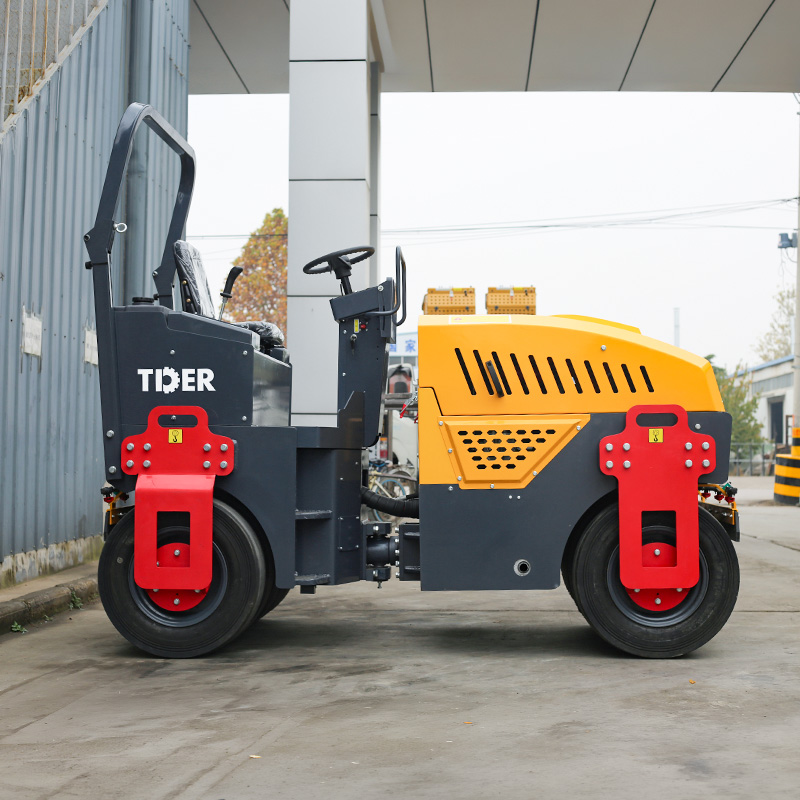

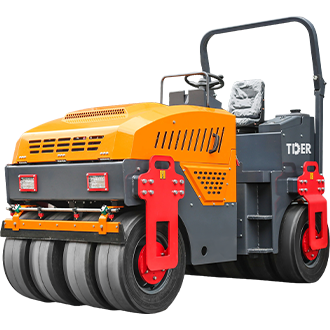

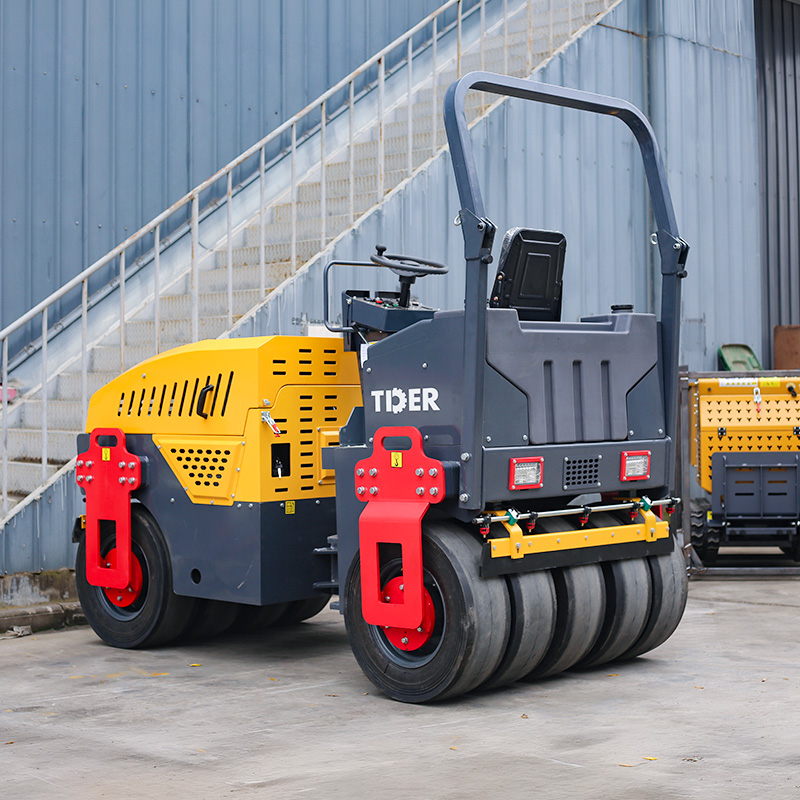

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
