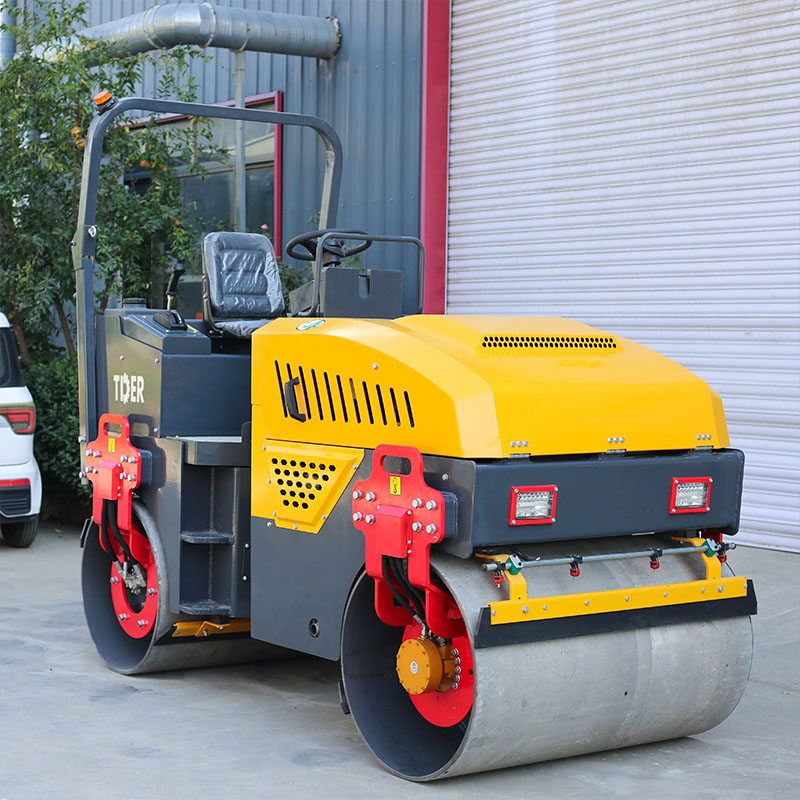

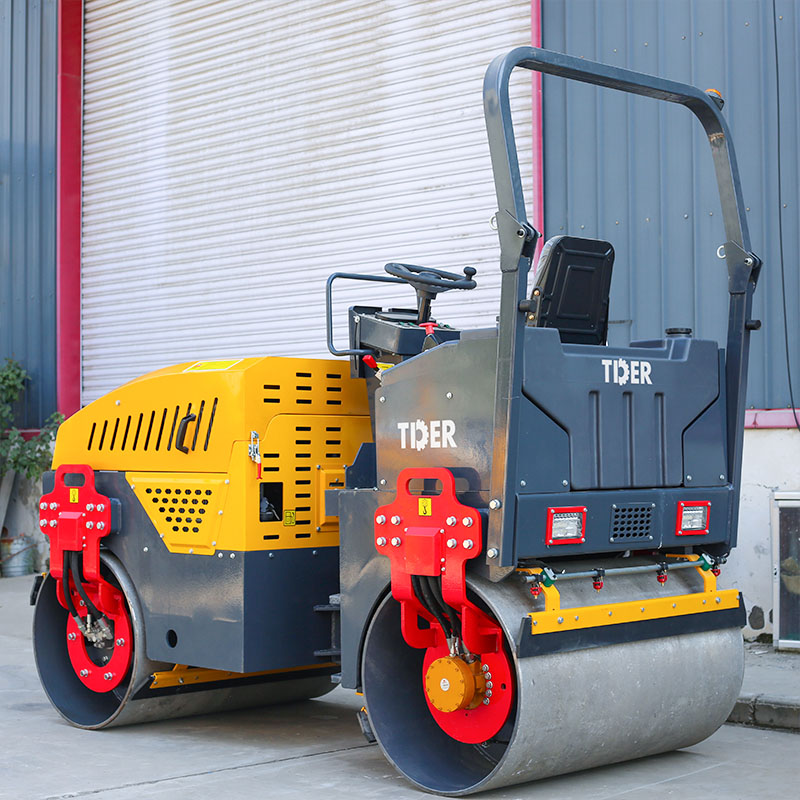

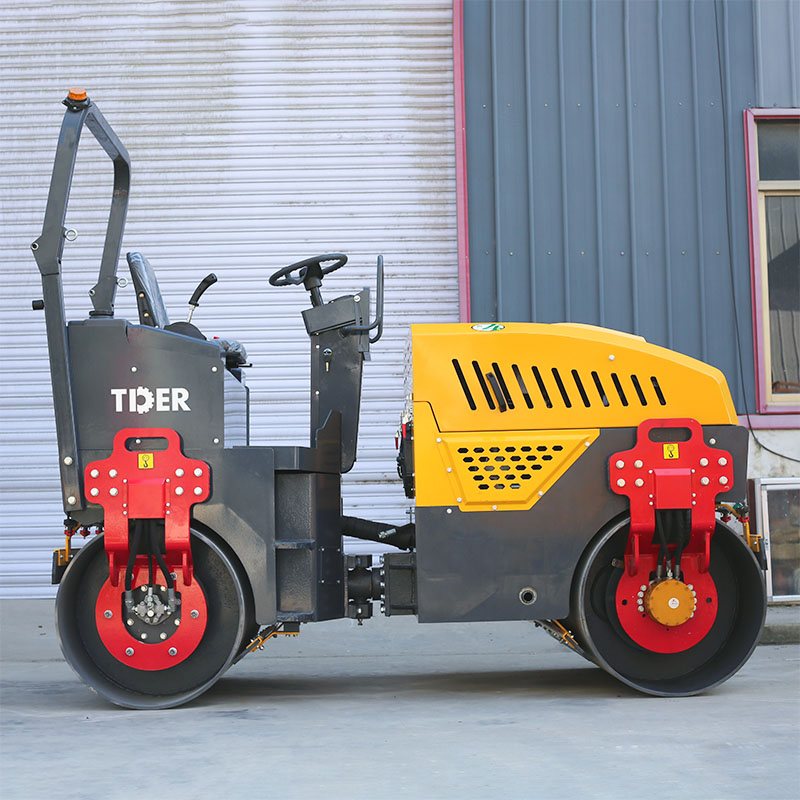

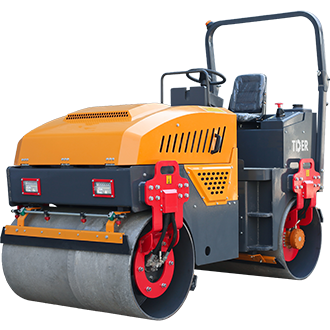

Name: 3 Ton Hydraulic Double Drum Road Roller with Danfoss Pump
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Danfoss Variable Piston Pump for Responsive Hydraulic Power

A Japanese Danfoss high-pressure variable piston pump forms the core of the hydraulic system, delivering hydraulic flow according to working demand. This configuration supports responsive drive and vibration control while providing the pressure capacity required for continuous compaction work.

Articulated Design for Precise Maneuvering

The articulated frame allows the front and rear sections to follow the steering input smoothly, giving the TR30-I a smaller turning path and better maneuverability in confined work areas. Combined with a compact steering wheel, responsive controls, and clear visibility of the drum edges, the articulated design makes it easier to position the roller accurately around building edges, narrow sections, and repair areas.

Independent Hydraulic Drive for Controlled Movement on the Jobsite

The full hydraulic dual-drive system powers both steel drums through hydraulic motors, giving the TR30-I positive traction during forward and reverse travel. Continuously variable speed allows the operator to adjust travel speed according to material conditions and compaction requirements rather than being restricted to fixed mechanical gears.

Specifications

Travel	Travel Speed	km/h	0–12
	Turning Radius	mm	3000
	Gradeability	%	30
Engine	Engine Model	—	Changchai ZN390
	Engine Type	—	Vertical 3-Cylinder, Water-Cooled Diesel Engine
	Output Power	HP / rpm	39 / 2600
	Fuel Tank Capacity	L	36
	Optional Engines & Emission Standards	—	National Stage II / Stage IV / EPA / Euro V
	Optional Engine Models	—	Changchai 390 / Kubota V1505 / Yanmar 386; Other engines available upon request
Compaction	Static Line Load (Front / Rear)	N/cm	125 / 87
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	70
	Exciting Force	kN	45 × 2
Work	Drive Form	—	Hydraulic Dual-Wheel Drive
	Vibration Form	—	Hydraulic Vibration
	Vibrating Drums	—	Dual Drum Vibration
	Steering Form	—	Hydraulic Steering
	Spraying System	—	Electrically Controlled Pressure Atomized Spraying
Dimensions	Drum Width (Front / Rear)	mm	1200
	Drum Diameter (Front / Rear)	mm	710
	Overall Length	mm	2700
	Overall Width	mm	1320
	Overall Height (Excluding Bumper)	mm	1900
	Package Dimensions	mm	2800 × 1350 × 1900
Sprinkler System	Water Tank Material	—	Roto-Molded Water Tank
Sprinkler System	Water Tank Capacity	L	180
Capacity	Hydraulic Oil Tank Capacity	L	40 + 56
Capacity	Parking Brake	—	Hydraulic Locking
Weight	Net Weight	kg	2868
Weight	Operating Weight	kg	3000

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
