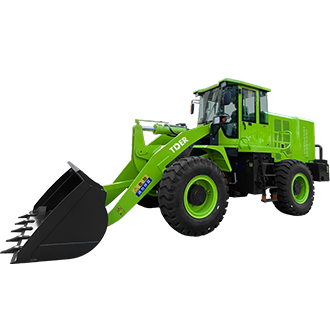

Name: 3 Ton Electric Loader with CATL Battery System
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

CATL Battery Platform for Long Operating Cycles

Equipped with a CATL lithium battery system delivering 139.79kWh capacity, the ZT930EV provides approximately 6–8 hours of operating time under rated conditions. The high-capacity battery design reduces charging interruptions and supports continuous loading operations in construction sites, yards, and industrial applications.

Dual-Motor Electric Drive with Flexible Power Configuration

The ZT930EV adopts an independent electric drive architecture with separate motors for travel and hydraulic operations, enabling efficient power distribution according to different working conditions. A three-motor configuration is also available for customers requiring higher working output and stronger operational performance. The permanent magnet synchronous motor system provides quick response, high efficiency, and smooth power delivery during repeated loading cycles.

Compact Electric Powertrain for Lower Operating Complexity

The integrated electric power system eliminates traditional fuel engine-related maintenance requirements while providing smooth power delivery. The compact motor layout improves system efficiency and simplifies daily maintenance for operators.

Optimized Wet Axle System for Reliable Daily Operation

The reinforced wet axle structure improves durability under repeated loading cycles. The optimized axle design provides stable torque transmission and reliable performance for daily material handling applications.

Dual-Gun Fast Charging for Improved Equipment Availability

The dual-gun fast charging system shortens charging time and improves machine utilization. The charging technology maintains stable performance across different temperature environments, helping operators maximize working time.

Specifications

Rated Load		kg	3000
Bucket Capacity		m³	2
Operating Weight		kg	10500
Dumping Height		mm	3200
Dumping Reach		mm	1250
Wheelbase		mm	2840
Wheel Tread		mm	1900
Max. Traction Force		kN	170
Max. Rising Power		kN	98 ± 5
Max. Climbing Angle		°	28
Turning Angle		°	35 ± 1
Forward Gear I/II		km/h	46376
Reverse Gear I/II		km/h	46376
Overall Dimensions (L × W × H)		mm	7200 × 2250 × 3220
Drive Axles		-	Wet Drive Axle
Service Brake		-	Hydraulic Brake
Hand Brake		-	Clamp Type
Air Conditioning System		-	Electric Heating and Cooling
System Voltage		V	DC 24
Tire Model		-	17.5-25
Battery System	Battery Type	-	Lithium Battery
	Rated Capacity	-	624V / 230Ah
	Energy Storage Capacity	kWh	143.52
	Nominal Voltage	V	3.7
	Protection Class	-	IP65 Control Box / IP67 Control Box
	Battery Life	h	4–5
	Charging Time	min	30–40 (Standard Charger, 300kW Charging Pile)
Power System	Hydraulic Working System Type	-	Double Pump Confluence
Power System	Operation Method	-	Pilot Control

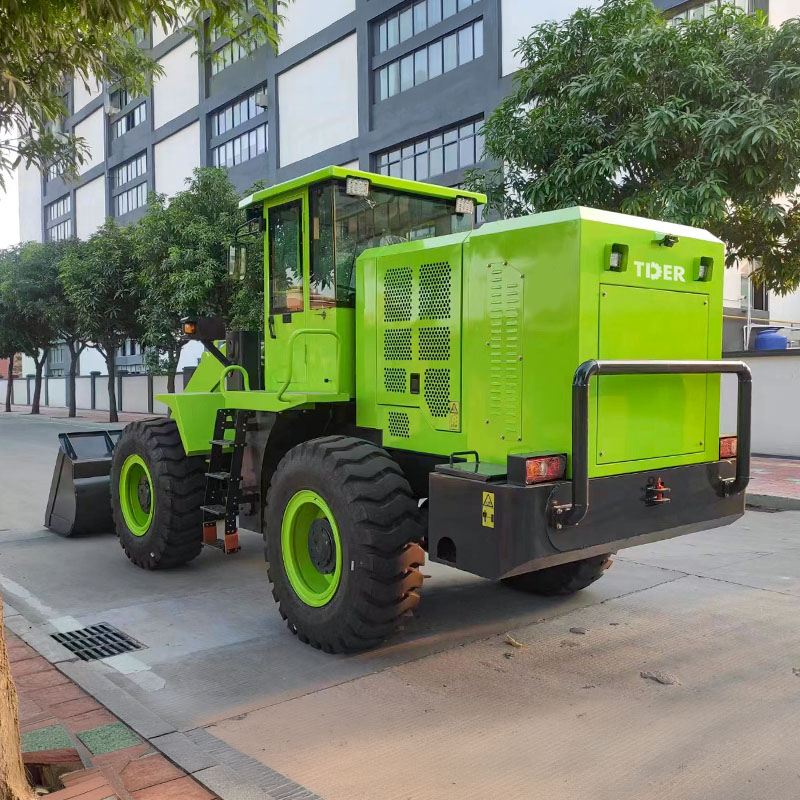

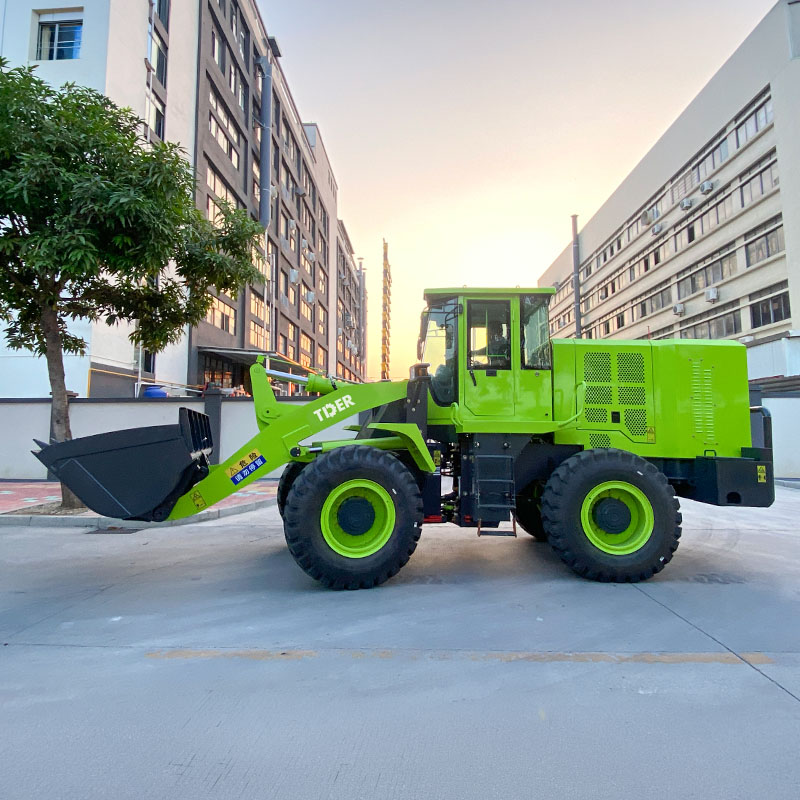

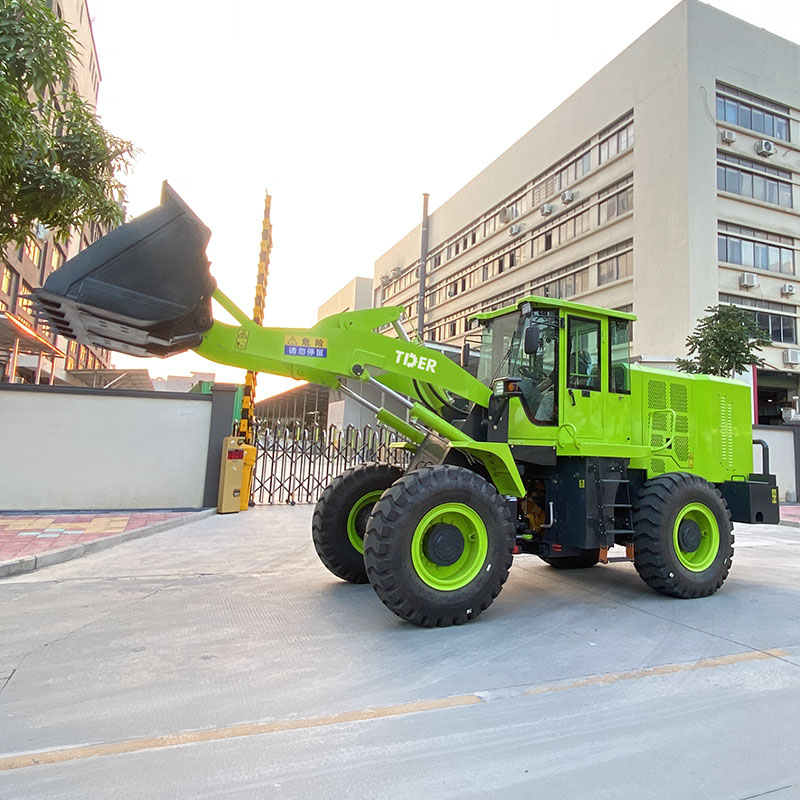

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
