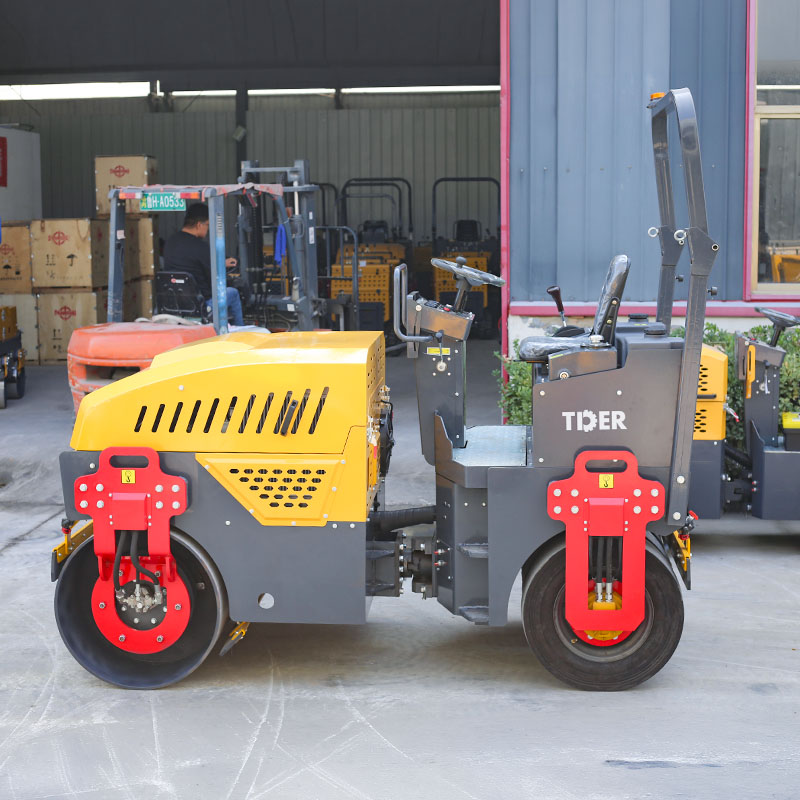

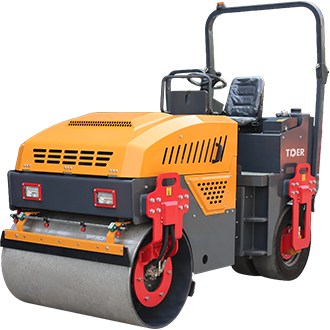

Name: 3 Ton Diesel Road Roller with Steel Drum & Pneumatic Tires
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

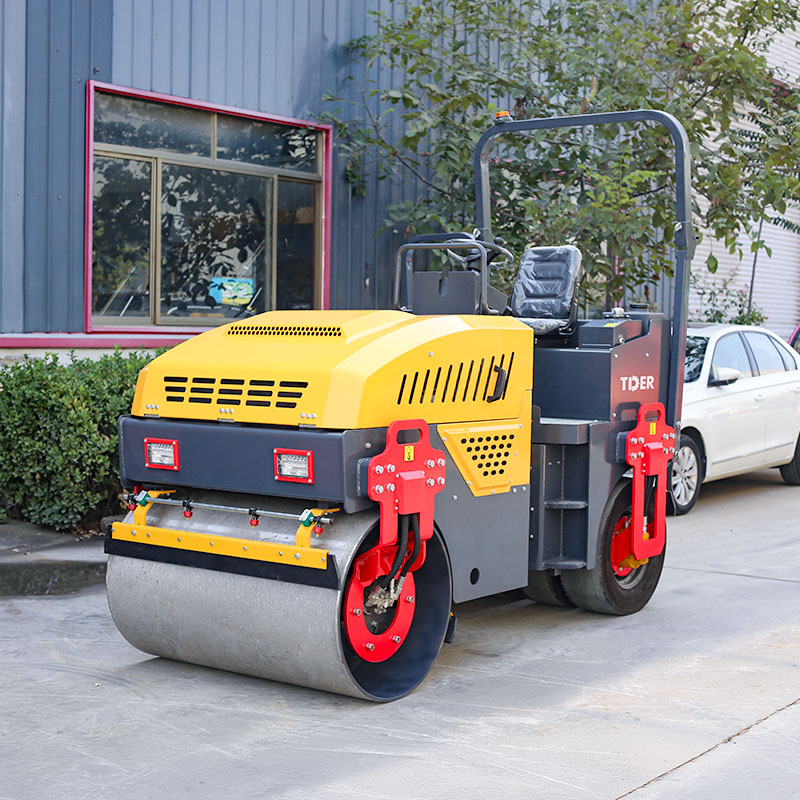

Combination Drum and Pneumatic Tires for Versatile Compaction

The TR30-II combines a 1200mm-wide, 710mm-diameter front steel drum with four 9.5/65-15 pneumatic tires at the rear. This configuration combines the concentrated compaction effect of a steel drum with the flexible contact characteristics of pneumatic tires, making the roller suitable for different stages of road and asphalt compaction.

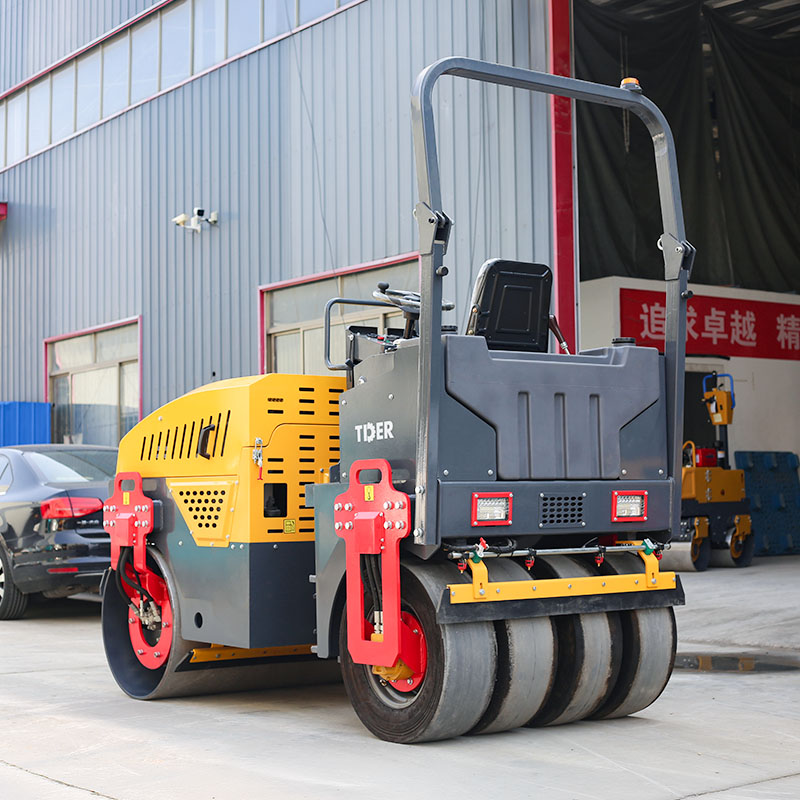

Pneumatic Tire Support for Improved Surface Conformity

The four rear pneumatic tires provide a flexible contact area that follows minor surface variations during operation. This helps distribute rolling pressure across the finished surface and makes the TR30-II particularly suitable for asphalt and roadwork where surface conformity and finishing quality are important.

Front-Drum Hydraulic Vibration for Controlled Compaction

Hydraulic vibration is applied directly to the front steel drum, allowing the operator to engage the compaction force where it is most effective. The vibration system is controlled by a hydraulic solenoid valve, providing direct response during different working passes.

Hydraulic Self-Locking Parking for Secure Machine Holding

The hydraulic self-locking parking system helps keep the roller securely held when parked, providing additional safety when the machine is stopped on the jobsite. This feature is especially useful when the roller needs to be left temporarily between working passes or during operator changes.

Integrated Water and Oil Spraying for Asphalt Applications

The TR30-II comes standard with a plastic water tank and electronically controlled pressure atomizing spray system. Its integrated water and oil spraying functions help condition the drum and support asphalt compaction by reducing material adhesion and maintaining a cleaner working surface.

Specifications

Travel	Travel Speed	km/h	0–12
	Turning Radius	mm	3000
	Gradeability	%	30
Engine	Engine Model	—	Changchai 390
	Engine Type	—	Vertical 3-Cylinder, Water-Cooled Diesel Engine
	Output Power	HP / rpm	39 / 2600
	Fuel Tank Capacity	L	36
	Optional Engines & Emission Standards	—	China Stage II / China Stage IV / EPA / Euro V
	Optional Engine Models	—	Changchai 390 / Kubota V1505 / Yanmar 386; Other engines available upon request
Compaction	Static Line Load (Front / Rear)	N/cm	125 / 87
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	70
	Exciting Force	kN	45
Work	Drive Form	—	Hydraulic Dual-Wheel Drive
	Vibration Form	—	Hydraulic Vibration
	Vibrating Drum	—	Front Drum
	Steering Form	—	Hydraulic Steering
	Spraying System	—	Electrically Controlled Pressure Atomized Water/Oil Spraying
Dimensions	Front Drum Width	mm	1200
	Front Drum Diameter	mm	710
	Tires	—	9.5/65-15 × 4
	Overall Length	mm	2700
	Overall Width	mm	1320
	Overall Height (Excluding Bumper)	mm	1900
	Package Dimensions	mm	2800 × 1350 × 1900
Sprinkler System	Water Tank Material	—	Roto-Molded Water Tank
Sprinkler System	Water Tank Capacity	L	180
Capacity	Hydraulic Oil Tank Capacity	L	40 + 56
Capacity	Parking Brake	—	Hydraulic Locking
Weight	Net Weight	kg	2620
Weight	Operating Weight	kg	3000

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
