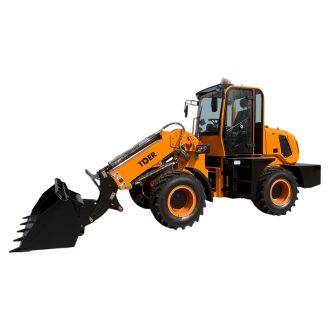

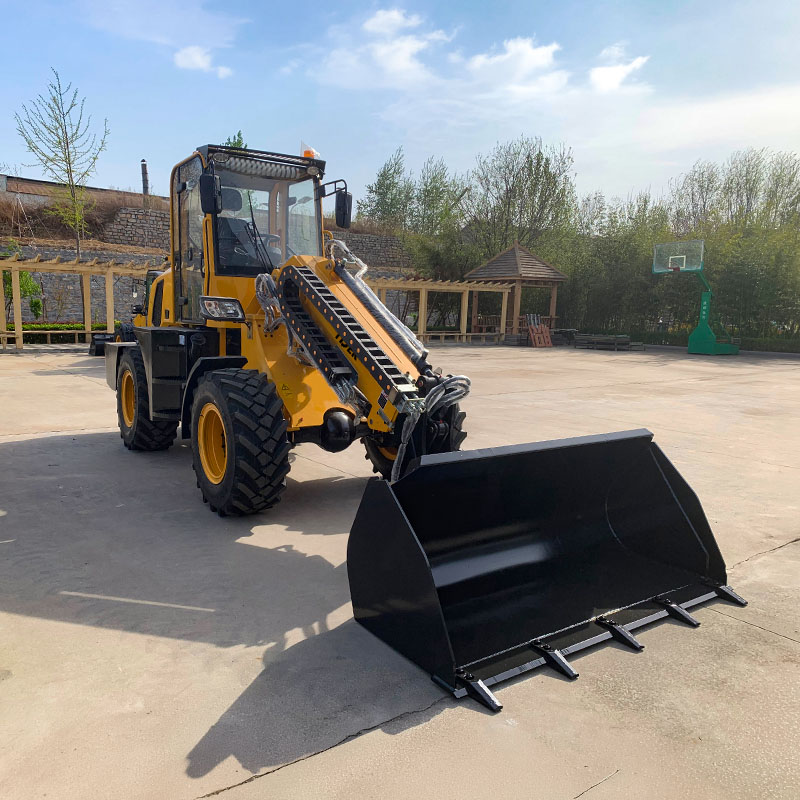

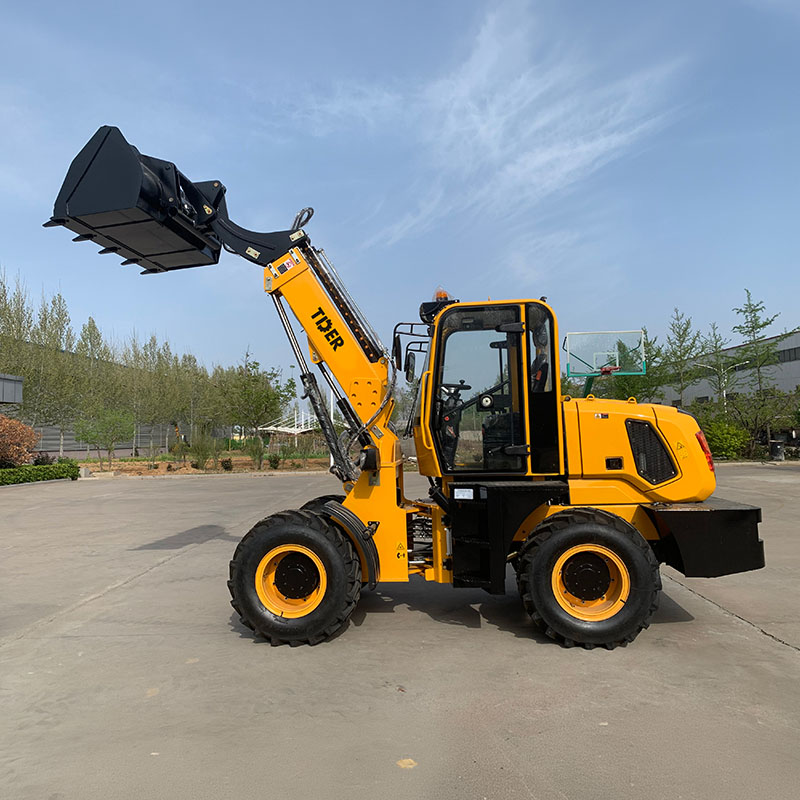

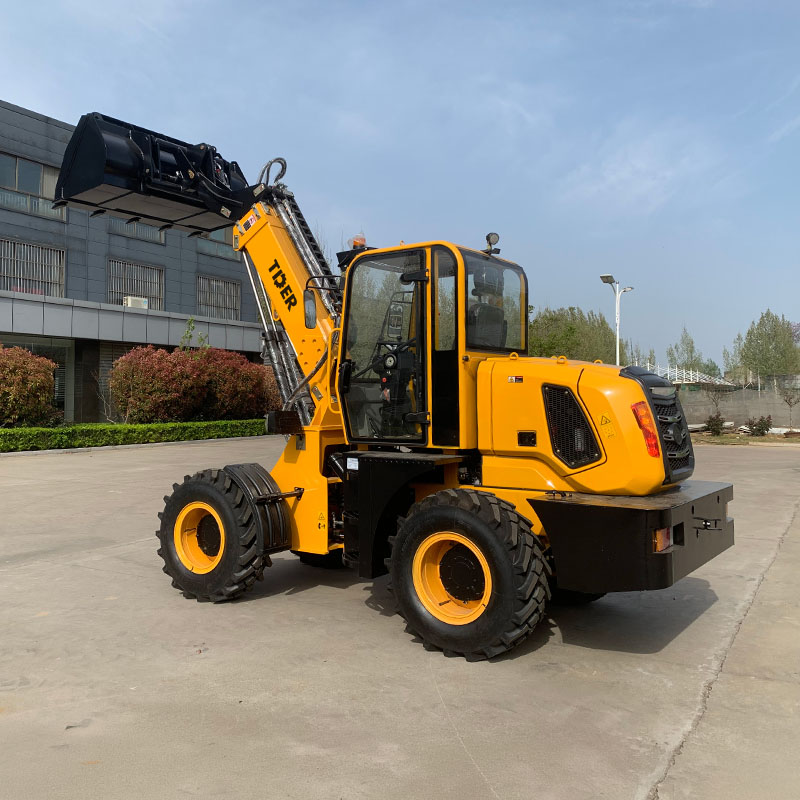

2.5 Ton Telescopic Loader
ZT925T
Features
High-Capacity Telescopic Boom for Efficient Material Handling
The 2.5-ton lifting system combined with a 1.2m³ bucket and 4500mm lifting height provides strong cycle efficiency, enabling fast loading and stacking operations in construction, agriculture, and material yard applications.
Boom Damping System for Stable Load Control
The integrated boom damping system reduces vibration during lifting and loading operations, improving material stability and control precision while enhancing operator comfort and reducing structural stress during continuous heavy-duty cycles.
Low Cost Engine Platform for Efficient Operation
The ZT925T offers multiple well-known engine options with strong global service support, ensuring wide availability of spare parts and maintenance networks. This reduces repair downtime and shortens service cycles, helping operators control long-term operating costs while maintaining stable productivity in continuous jobsite applications.
Premium Cab Design with Customized Visual Identity
The full-view operator cabin features a customized visual identity exterior design, combining modern styling with a clean and professional appearance. The panoramic structure enhances overall visibility and operator awareness, while reinforcing brand recognition and improving jobsite presence in demanding working environments.
Specifications
| Rated load | kg | 2500 |
| Engnie | Yunnei YN38GBZ | |
| Rated Power | KW | 76 |
| Overall Length | mm | 6500 |
| Overall Width | mm | 2000 |
| Overall Height | mm | 2860 |
| Max. Discharge height | mm | 4500 |
| Min. Discharge height | mm | 3500 |
| Bucket Capacity | m³ | 1.2 |
| Bucket Type | Heavy-duty bolt on teeth | |
| Max. Load | 2500 including bucket or attachment | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Service Brake | Four wheel disc brake | |
| Parking Brake | Disc brake | |
| Tire Model | 16/70-24 | |
| Wheel base | mm | 2550 |
| Wheel Track | mm | 1600 |
| System pressure | Mpa | 20 |
| Weight | kg | 6000 |
