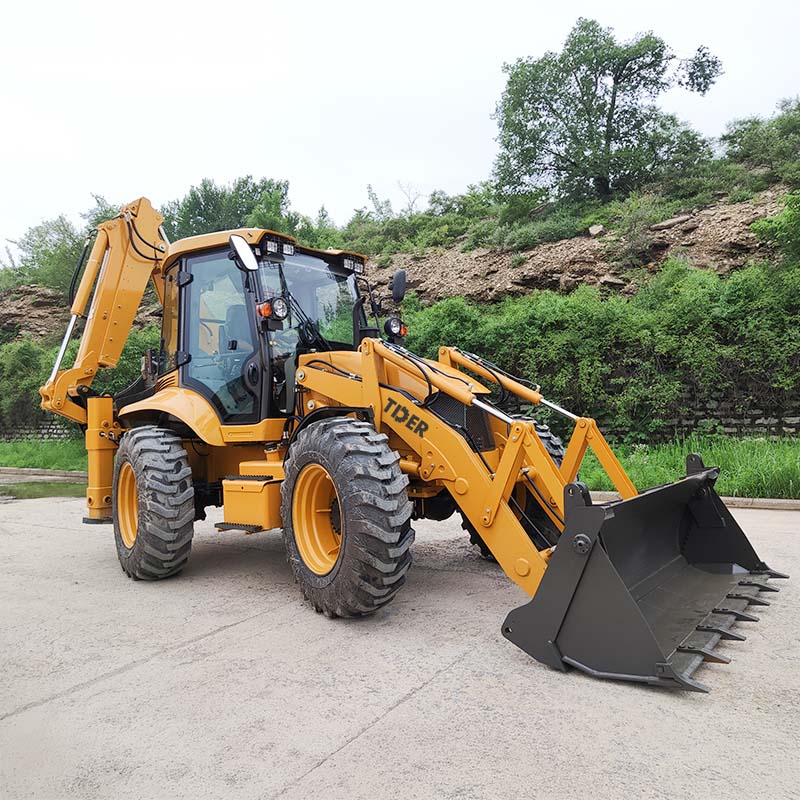

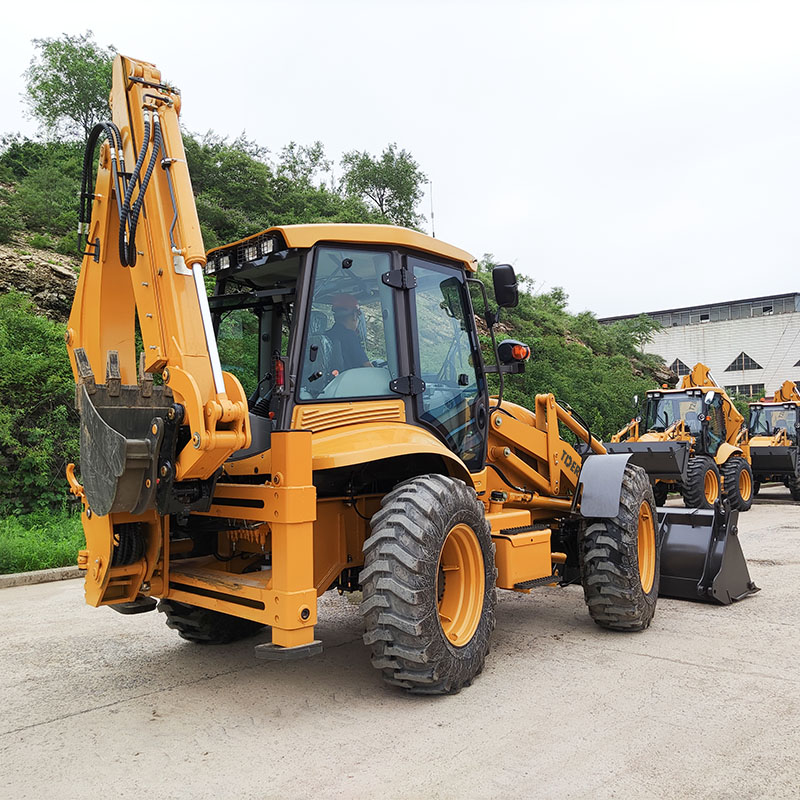

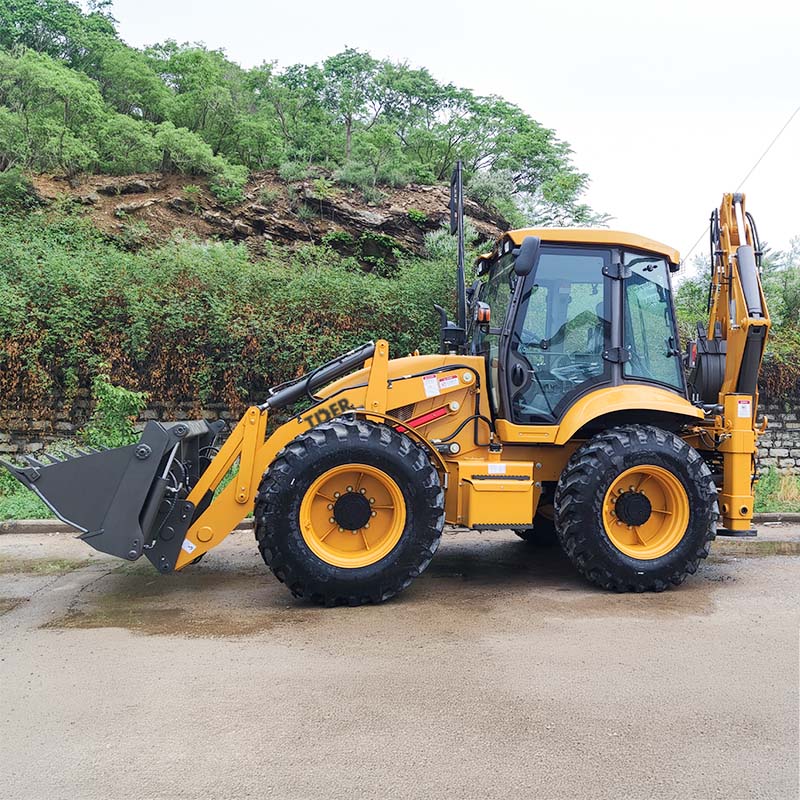

Name: 2.5 Ton Backhoe Loader with Three Steering Modes
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Upgraded Engine Power for Stronger Loading and Digging Performance

The ZT388H is equipped with an upgraded 81 kW Yuchai or 82 kW Weichai engine, providing the power needed for both loading and excavation work. The higher-output engine configuration helps the machine maintain productive performance when handling material, digging, or moving between work areas.

Load-Sensing Hydraulics for Responsive Machine Control

The standard Danfoss load-sensing hydraulic system delivers hydraulic flow according to working demand, helping the machine respond smoothly during loading, excavation and steering operations. This configuration supports more precise control while making better use of available hydraulic power.

Three Steering Modes for Greater Jobsite Maneuverability

The ZT388H offers three steering modes to adapt the machine to different working conditions. Operators can select the appropriate steering configuration for conventional travel, tighter maneuvering or lateral positioning, improving flexibility when working in confined areas or around obstacles.

Hydraulic Sliding Backhoe for Faster Work Positioning

The rear excavating attachment uses a hydraulic sliding mechanism, allowing the backhoe working position to be adjusted hydraulically instead of relying on manual repositioning. This makes it easier to align the digging equipment with the work area and improves operating convenience during repeated excavation tasks.

FOPS & ROPS Cab with Flexible Operator Control Options

The integrated FOPS & ROPS cab provides a protective operating environment while maintaining practical visibility around the machine. An optional rotating seat with integrated work control levers can further improve the operator's working position, making it easier to switch between loading and excavation tasks.

Stabilized Ride for Greater Operator Comfort

A dedicated body stability system helps reduce pitching and bouncing while the machine is traveling, particularly when moving across uneven ground. By improving ride stability, the system helps create a more comfortable working environment during longer operating cycles.

Versatile Configuration for Loading, Excavation and Site Work

The ZT388H combines a 1.2 m³ loader bucket, 0.3 m³ backhoe bucket, four-wheel steering, crab steering and multiple auxiliary hydraulic configurations in one machine. Standard features such as loader bucket float, rear-view camera, LCD display, engine preheating and rear hammer piping preparation further support its use across different construction and material-handling tasks.

Specifications

Overall Dimensions	Total Length (Bucket at Ground)	mm	6450 ± 80
	Total Width	mm	2650 ± 20
	Bucket Width	mm	2620
	Total Height (Cabin Top)	mm	3120 ± 10
	Total Height (Digging Boom Top)	mm	3940 ± 20
	Wheelbase	mm	2335 ± 10
	Wheel Tread	mm	2139 ± 10
Loading System	Rated Load	kg	2500
	Operating Weight	kg	10400
	Rated Bucket Capacity	m³	1.2
	Max. Dumping Height (41° Dumping Angle)	mm	3050 ± 50
	Dumping Distance	mm	870 ± 20
	Turning Radius (Outside of Tires)	mm	5750 ± 50
Digging System	Rated Digging Bucket Capacity	m³	0.3
	Max. Digging Depth	mm	3820 ± 20
	Max. Digging Radius	mm	5345 ± 20
	Max. Loading Height	mm	3740 ± 20
	Max. Digging Force	kgf	5100
	Max. Digging Height	mm	5470 ± 20
	Lifting Force at Max. Digging Radius	kg	1220
	Max. Digging Depth with Extended Boom (Telescopic Arm)	mm	4970 ± 20
	Max. Loading Height with Extended Boom (Telescopic Arm)	mm	4983 ± 20
	Max. Digging Height with Extended Arm (Telescopic Arm)	mm	6680 ± 20
Engine	Engine Model	—	YC4A105Z-T20
	Cooling Type	—	Water Cooling
	Rated Power	kW	75
	Displacement	L	4.8
	Rated Speed	rpm	2200
	Max. Torque	N·m	400
	Manufacturer	—	YUCHAI
Transmission	Torque Converter Type	—	Hydraulic Torque Converter
	Torque Converter Model	—	315
	Cooling Method	—	Pressurized Oil Circulation
	Gearbox Model	—	28
	Gearbox Type	—	Mechanically Operated Hydraulic Synchronized Shift
	Driving Axle Model	—	WZL100
	Gear Shift	—	4 Forward / 4 Reverse
	Forward Speed 1	km/h	5
	Forward Speed 2	km/h	10
	Forward Speed 3	km/h	18
	Forward Speed 4	km/h	32
	Reverse Speed 1	km/h	5
	Reverse Speed 2	km/h	10
	Reverse Speed 3	km/h	18
	Reverse Speed 4	km/h	32
	Tire Model	—	16.9-28
Hydraulic System	Working Pump Displacement	mL/r	63
	Working Pump Pressure	MPa	20
	Diverter Model	—	BZZ5-250
Hydraulic Hammer Attachment	Rod Diameter	mm	68–70
	Working Pressure	MPa	11–14
	Impact Frequency	bpm	500–900
	Flow Range	L/min	25–45
	Kinetic Energy	kN	49
Oil Capacities	Hydraulic Oil Tank	L	125
Oil Capacities	Fuel Tank	L	125
Standard Equipment	Engine	—	Yuchai
	Engine Emission Standard	—	China Stage II
	Cabin	—	With Rollover Protection Design
	Air Conditioning	—	Yes; Mechanically Operated
	Transmission	—	SHANMON
	Axle	—	SHANMON
	Hydraulic Pump	—	Jinan Quancheng
	Diverter and Priority Valve	—	Jining Eaton
	Hydraulic Breaker Hoses	—	Set
	Carriage	—	Hydraulic
	Tires	—	4-Wheel Drive, 16.9-28

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
