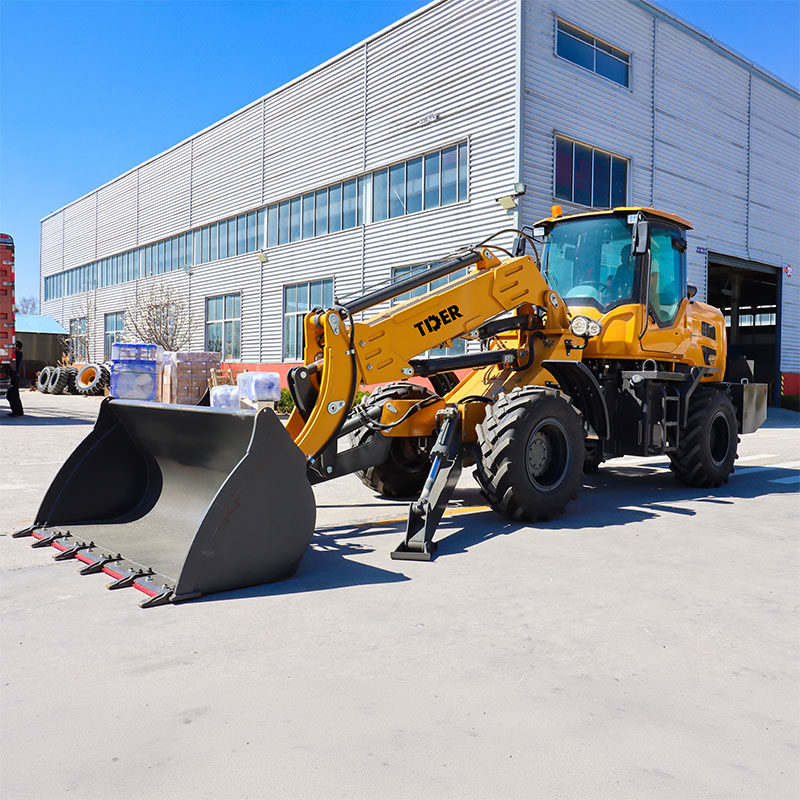

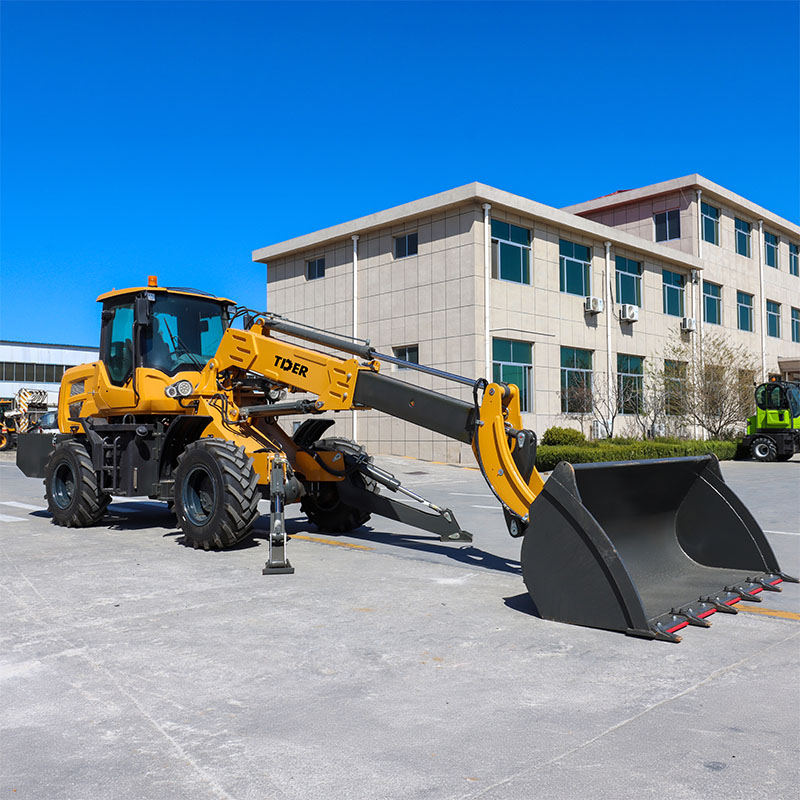

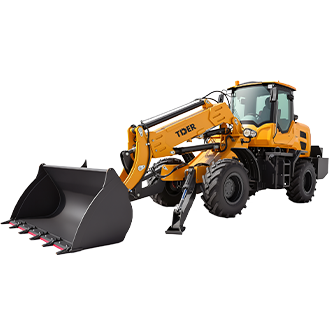

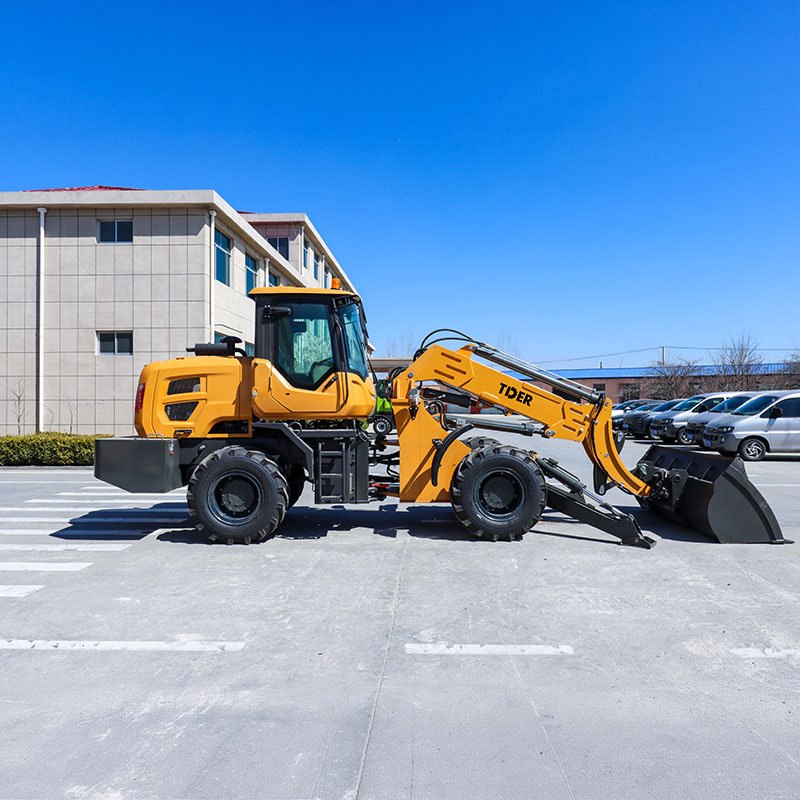

2.5 Ton Telescopic Loader
ZT925T
Features

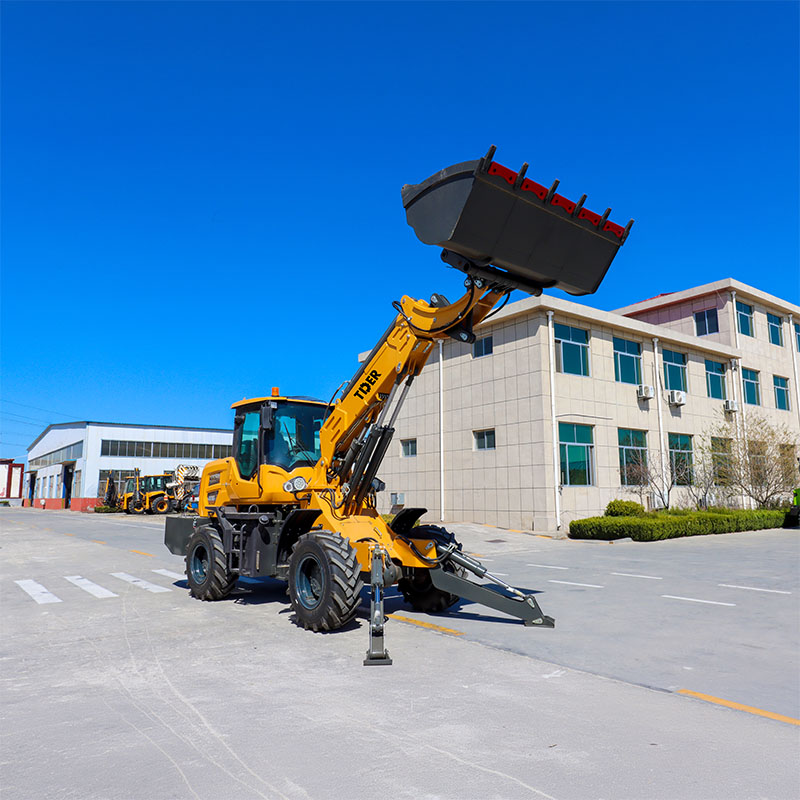

Telescopic Boom Extends The Working Range
The ZT925T combines the maneuverability of an articulated wheel loader with the extended reach of a telescopic boom. The 2.5-ton machine can achieve greater lifting height and working radius than conventional wheel loaders, making it suitable for applications where both reach and loading performance are important.
Robust Telescopic Boom Built For Demanding Work
The telescopic boom features a strong and durable structure designed to handle demanding lifting operations. Its combination of telescopic reach and articulated machine characteristics provides greater flexibility when positioning materials at height or farther from the machine.
Compact Dimensions For High Maneuverability
The ZT925T is designed with compact overall dimensions to maintain excellent mobility in confined working areas. Its directional stability and agile handling make it easier to maneuver through tight spaces while maintaining effective working performance.
Central Operator Position For A Clearer Working View
The centrally positioned operator seat provides a wide field of view around the machine and working area. This layout gives the operator a clearer perspective when maneuvering, positioning the boom and handling materials, helping improve confidence during daily operations.
Integrated Seat And Joystick Console For Operator Comfort
The joystick console is mounted together with the operator's seat and supported by vibration-damping mounts. When the seat is adjusted to the operator's preferred position, the controls remain optimally positioned, keeping the arm position consistent during operation and helping the operator work comfortably and stay focused for longer periods.
Specifications
| Main Technical Specifications | Total Weight | kg | 6700 |
| Maximum Speed | km/h | 35 | |
| Maximum Gradeability | ° | 35 | |
| Maximum Load | kg | 2500 | |
| Engine Model | — | Yunnai YN4102 Supercharged | |
| Rated Power | kW | 76 | |
| Gearbox | — | Front 2 / Rear 2 | |
| Drive Type | — | Four-Wheel Drive | |
| Service Brake | — | Air-Over-Hydraulic Caliper Disc Brake | |
| Working Range | Maximum Lifting Height | mm | 7000 |
| Maximum Unloading Height | mm | 4800 | |
| Maximum Unloading Distance | mm | 1600 | |
| Dimensions | Overall Dimensions (L × W × H) | mm | 7350 × 2000 × 2850 |
| Minimum Ground Clearance | mm | 320 | |
| Minimum Turning Radius | mm | 5330 | |
| Attachment | Bucket Width | mm | 2000 |
| Chassis | Tire Specifications | — | 16/70-20 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.
