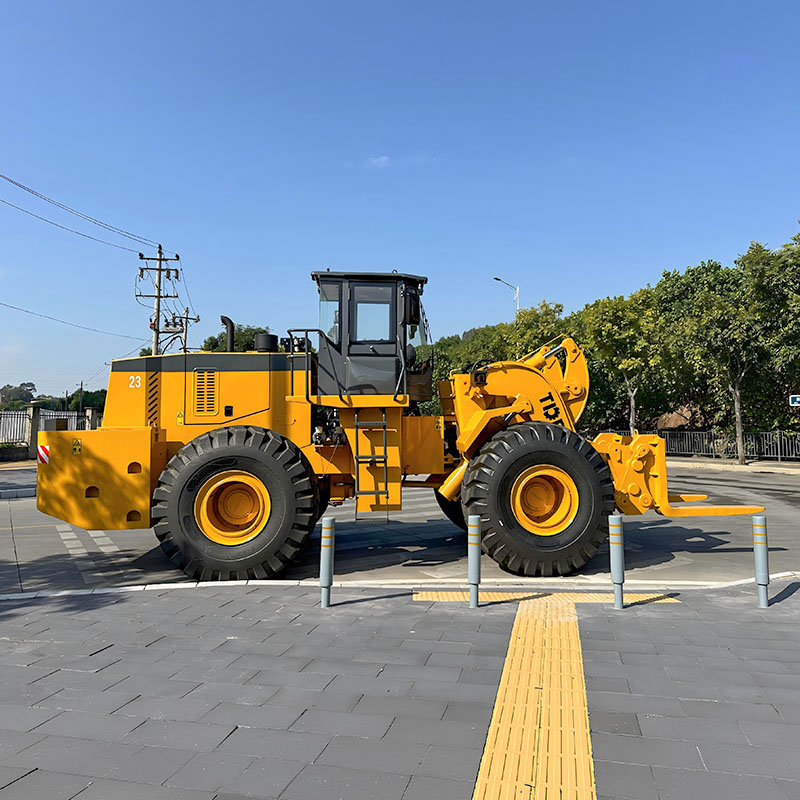

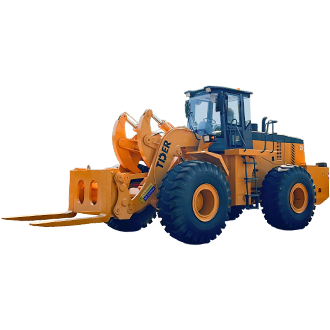

23 Ton Forklift Loader
ZT23T
Features
High-Torque Weichai Engine for Powerful and Efficient Operation
Powered by a 178kW Weichai engine, the machine delivers strong torque output with optimized fuel efficiency, low noise, and reliable performance under continuous heavy-load working conditions.
Reinforced Fork System with High-Lift Cylinder Design
Equipped with a large-diameter lifting cylinder and heavy-duty fork structure, the machine provides stronger lifting force and improved load stability, ensuring efficient handling of heavy and bulky materials.
Heavy-Duty Welded Drive Axle for Structural Strength
The self-developed reinforced welded drive axle features a compact and optimized structure, improving load distribution and durability for stable performance in harsh working environments.
Durable Hydraulic Lines for Long Service Life
DIN-standard hydraulic piping with O-ring sealing and protective hose jackets enhances sealing reliability and wear resistance, reducing leakage risk and extending hydraulic system service life under continuous operation.
Comfort Cab with Rear Camera for Safe Operation
The integrated air-conditioned cab with rear-view camera improves operator visibility and comfort, enhancing safety and control during reversing and loading operations in complex industrial environments.
Specifications
| Engine | — | Weichai |
| Rated Power | kW | 178 |
| Overall Length | mm | 8350 |
| Overall Width (Outside of Tires) | mm | 3210 |
| Overall Height | mm | 3690 |
| Maximum Dumping Height | mm | 3250 |
| Tire Model | — | 26.5-25 |
| Wheelbase | mm | 3350 |
| Wheel Tread | mm | 2480 |
| Fork Dimensions (L × W × T) | mm | 1500 × 250 × 120 |
| Operating Weight | kg | 23500 |
| Rated Loading Capacity | t | 23 |
| Maximum Climbing Gradient | ° | 28 |
| Rated Speed | rpm | 2200 |
| Lifting Time | s | ≤6.8 |
| Hydraulic Cylinder Time | s | ≤12.55 |
| Forward Gear I Speed | km/h | 0–11.5 |
| Forward Gear II Speed | km/h | 0–38 |
| Reverse Gear I Speed | km/h | 0–16 |

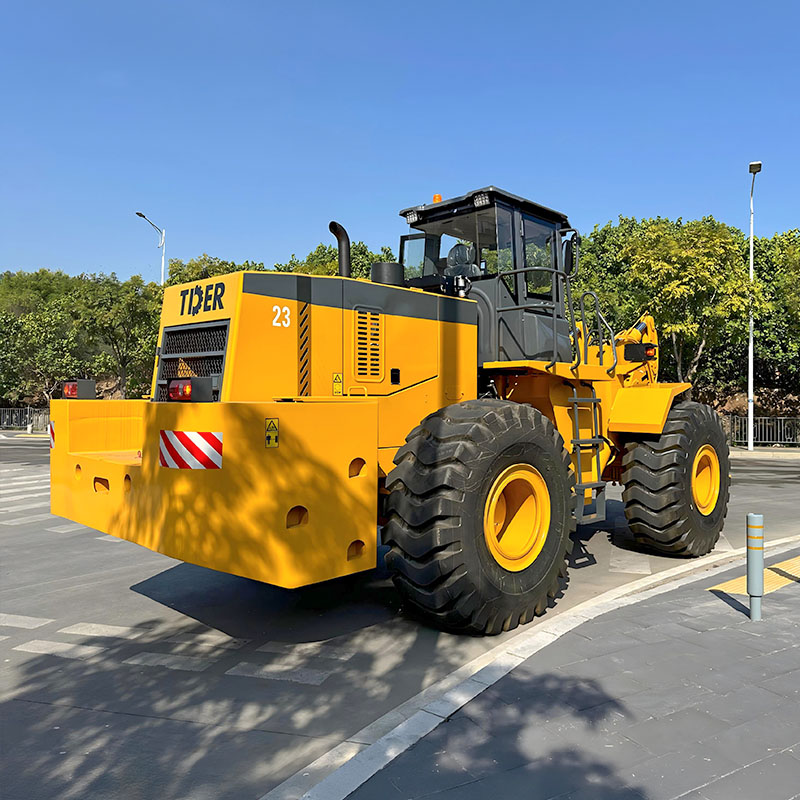

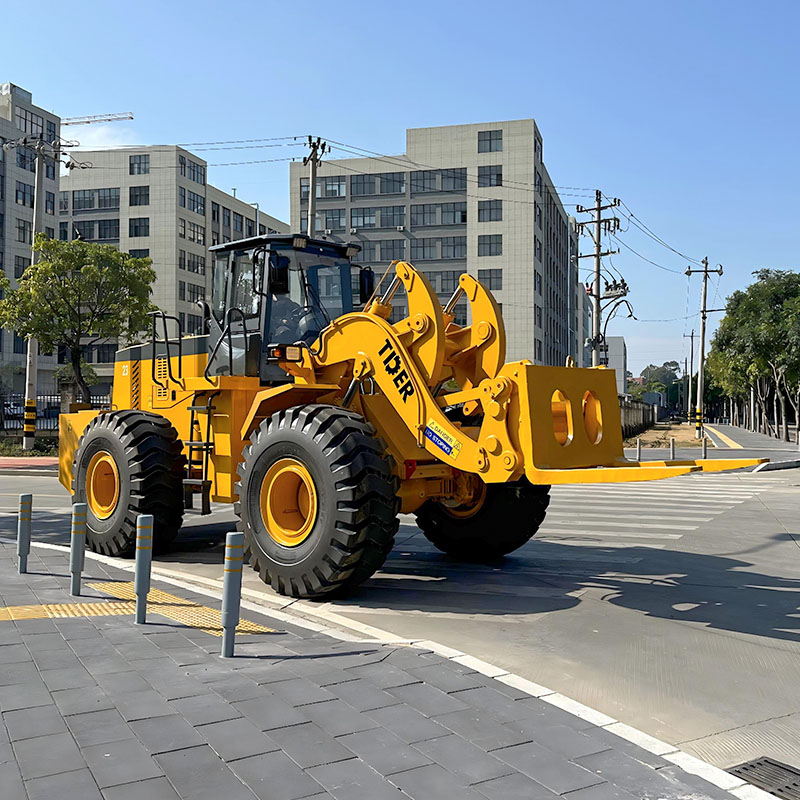

Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
