Name: 20 Ton Single Drum Road Roller with Linde Hydraulics
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

20-Ton Working Weight for Large-Scale Foundation Compaction

With a 20,000 kg working weight and strong hydraulic vibration, the TR200 is built for demanding foundation compaction over large working areas. This ultra-heavy roller is well suited to highways, mining roads, large dams, ports and industrial sites, where high compaction performance and efficient coverage are essential.

Linde Hydraulic System for Precise Travel and Vibration Control

The TR200 uses Linde travel motors, vibration motors, travel pumps and vibration pumps as key hydraulic components. The full-hydraulic rear-wheel-drive system combines continuously variable travel, frequency and amplitude adjustment, and hydraulic articulated steering, giving the operator precise control over machine movement and compaction settings.

High-Altitude Diesel Power for Demanding Job Sites

Powered by a 140 kW Weichai WP6G China III diesel engine, the TR200 provides a high power reserve for demanding working conditions, including construction at elevations above 4,000 meters. This makes the machine suitable for infrastructure projects where both compaction force and engine performance must be maintained in high-altitude environments.

Flexible Drum Options for Different Soil Conditions

For projects requiring deeper or more aggressive soil compaction, the TR200 can be equipped with an optional removable padfoot drum. This configuration expands the machine's working range beyond standard smooth-drum applications and makes the single drum road roller more adaptable to different soil conditions.

Smart Compaction Management for Data-Based Operation

An optional intelligent compaction management system can be installed to support more systematic control of the compaction process. This option provides additional technology for projects where monitoring and managing compaction quality are important.

Specifications

Weight	Operating Mass	kg	20000
Compaction	Static Linear Load	N/cm	500
	Vibration Amplitude	mm	1.9 / 0.95
	Vibration Frequency	Hz	28 / 35
	Exciting Force	kN	395 / 290
Travel	Travel Speed	km/h	11
	Gradeability	%	30
	Turning Radius	mm	7500
Drum	Vibrating Drum Width	mm	2130
Dimensions	Overall Dimensions (L × W × H)	mm	6665 × 2340 × 3250
Dimensions	Wheelbase	mm	3500
Engine	Diesel Engine Model	—	WP6G190
	Diesel Engine Manufacturer	—	Weichai
	Diesel Engine Model	—	WP6G190E330
	Diesel Engine Power	kW	140
Configuration	Travel System	—	Linde
Configuration	Vibration System	—	Linde

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

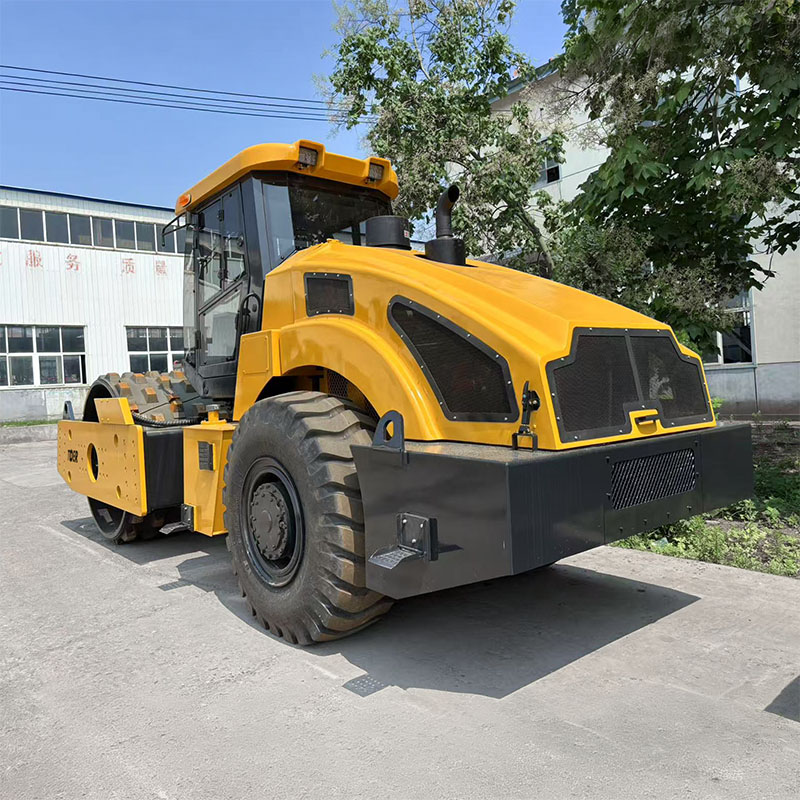

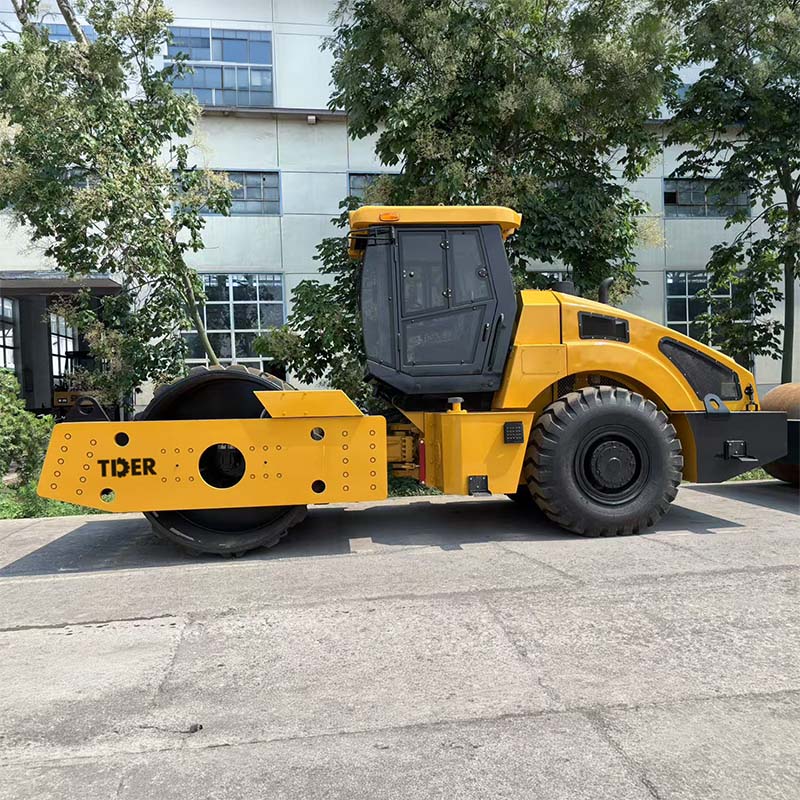

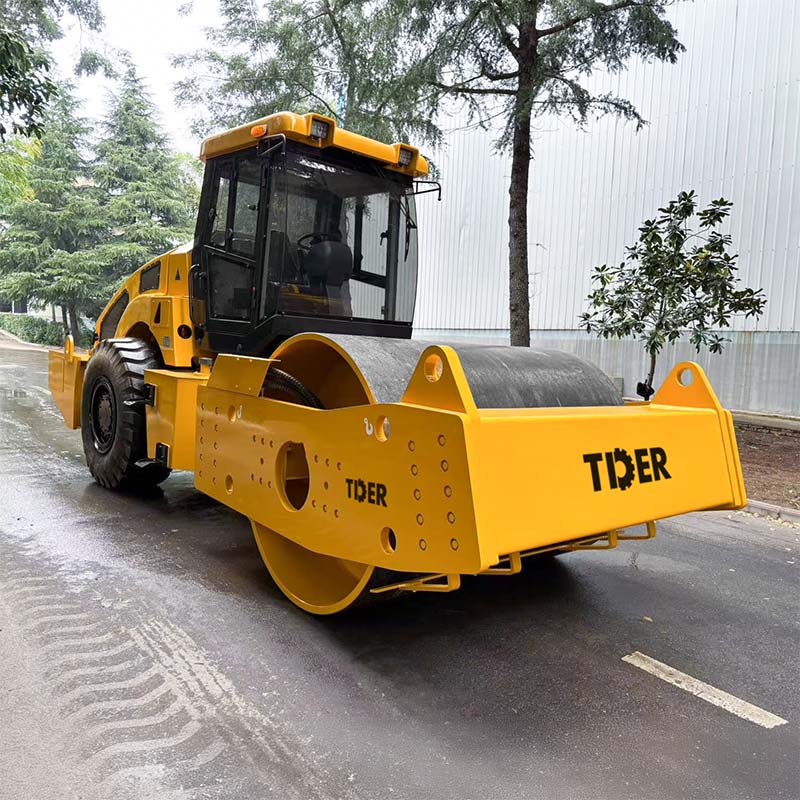

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
