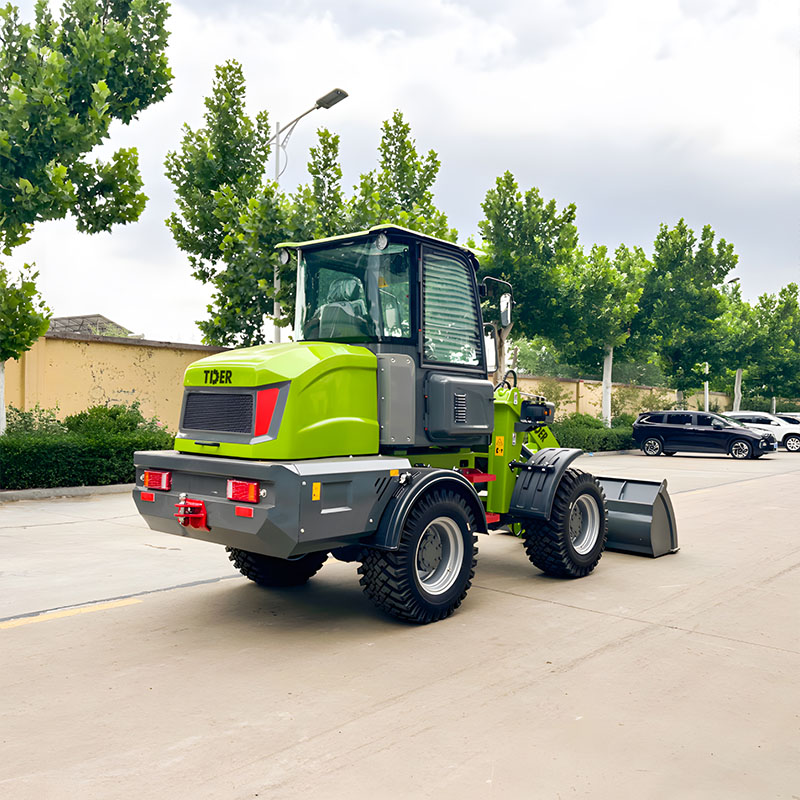

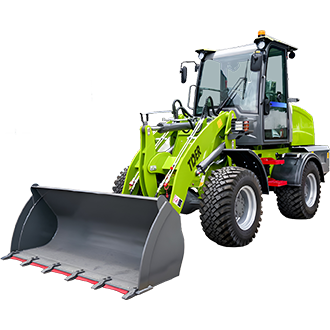

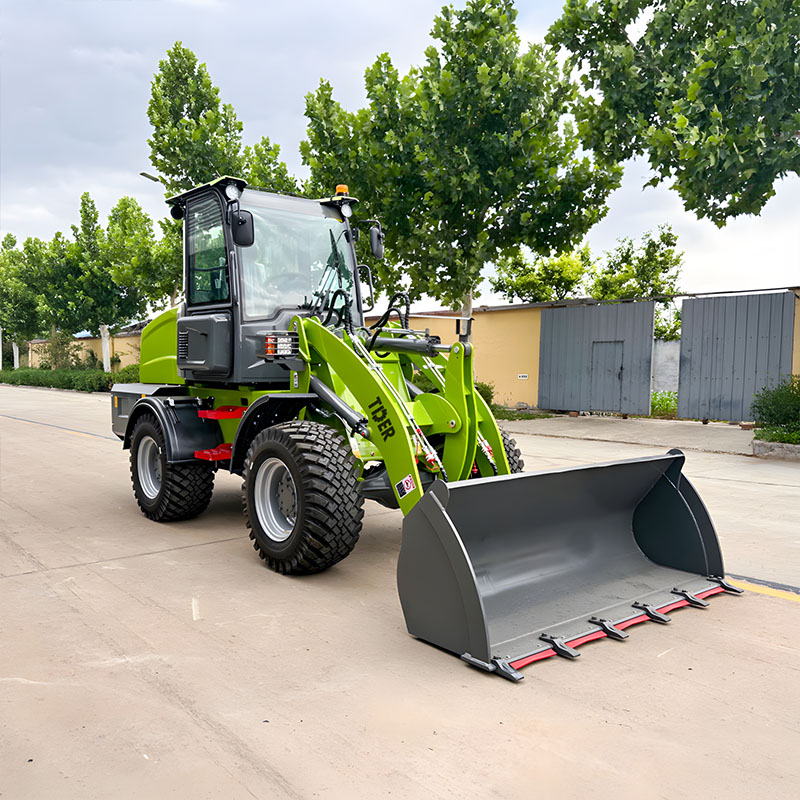

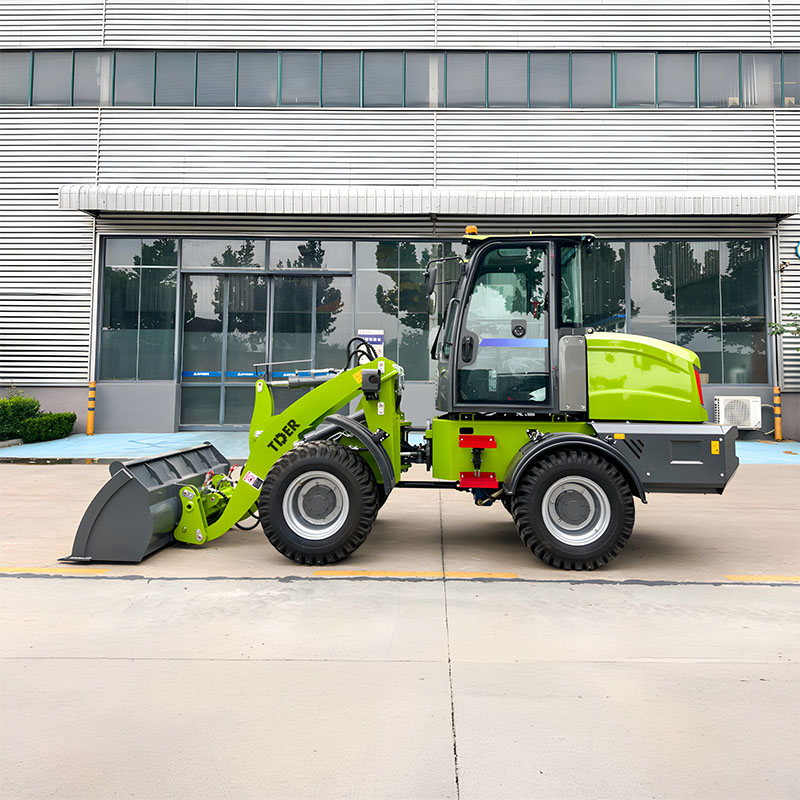

1.5 Ton Electric Loader
ZT915EV
Features
5-Hour Working Capability for Daily Electric Applications
The ZT915EV provides up to 5 hours of theoretical working time on a single charge, supporting continuous operation across typical daily loading tasks. Combined with an international-standard charger, the machine offers a practical electric solution for customers seeking predictable charging and operating schedules.
Dual Electric Motor Layout for Independent Working Performance
The ZT915EV adopts separate electric motors for travel and lifting functions, with a 20kW travel motor and 15kW lifting motor. This independent power layout allows efficient energy distribution between driving and loading operations, improving response consistency during repeated working cycles.
Full-Time 4WD Configuration for Reliable Jobsite Adaptability
The ZT915EV features a full-time four-wheel-drive layout designed for consistent traction during daily material handling tasks. This configuration improves operational confidence when working across mixed surfaces such as concrete floors, gravel paths, and agricultural areas.
Maintenance-Friendly Hydraulic Working System
The ZT915EV integrates a three-section hydraulic valve and full hydraulic steering system, providing smooth working control with a simplified maintenance structure. The optimized hydraulic configuration helps operators complete loading tasks with easier handling and lower service requirements.
Specifications
| Rated Loading Capacity | kg | 1500 |
| Operating Weight | kg | 4750 |
| Bucket Capacity | m³ | 0.7 |
| Max. Steering Angle | ° | ±35 |
| Min. Steering Radius | mm | 4440 |
| Rear Axle Oscillation Angle | ° | 20 |
| Total Working Cycle Time | s | 9 |
| Working Time | h | 5 |
| Traveling Speed | km/h | Low Speed: 6 / High Speed: 16 |
| Dumping Height | mm | 2570 |
| Lifting Height | mm | 3270 |
| Overall Dimension (L × W × H) | mm | 5360 × 1970 × 2720 |
| Dumping Distance | mm | 945 |
| Bucket Width | mm | 1970 |
| Wheelbase | mm | 1975 |
| Wheel Tread | mm | 1510 |
| Min. Ground Clearance | mm | 250 |
| Battery Model | TEV12-180 | |
| Battery Type | Lead-acid Maintenance-free Battery | |
| Battery Quantity | pcs | 20 |
| Battery Capacity | kWh | 45 |
| Rated Voltage | V | 120 |
| Charging Time | h | 8 |
| Traveling System Voltage | V | 120 |
| Traveling System Power | kW | 20 |
| Motor Quantity | pcs | 1 |
| Tire Model | 15.5/60-18 | |
| Service Brake | Hydraulic Disc Brake | |
| Parking Brake | Clamp Hand Brake |
