Name: 1.5 Ton Electric Articulated Loader with Fast Charging
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

High-Efficiency Electric Drive System with Independent Motor Control

Powered by a Huichuan electric drive system with a 65kW travel motor and 30kW hydraulic motor, the ZT916EV adopts an independent dual-motor architecture to optimize energy distribution between travel and working functions. The drive motor delivers direct power response without a traditional gearbox, enabling stepless speed adjustment and smoother operation, while the demand-controlled hydraulic motor reduces unnecessary energy consumption for improved overall efficiency.

Safe Lithium Battery System with Intelligent Energy Management

Equipped with a 345.6V 175Ah lithium battery pack from Yijiatong, the ZT916EV integrates a battery management system (BMS) to monitor key battery conditions and improve operational safety. The high-protection electrical connectors, clearly marked high-voltage wiring, and accessible battery compartment design simplify inspection and maintenance while supporting reliable operation in demanding working environments.

Regenerative Braking System for Longer Operating Efficiency

The ZT916EV features an energy recovery braking system that converts braking energy into usable electrical power during deceleration. By reducing reliance on mechanical braking components, the system helps extend component service life while improving energy utilization. The integrated hydraulic braking and energy storage braking systems provide additional safety protection during operation.

Compact Articulated Design for Flexible Jobsite Maneuverability

The articulated steering system provides a smaller turning radius and improved maneuverability in confined areas. Combined with a rear oscillating axle, the ZT916EV maintains better ground contact and ride comfort when traveling across uneven surfaces, making it suitable for farms, landscaping, warehouses, and compact construction sites.

Operator-Focused Cab with Enhanced Visibility and Easy Control

The spacious cab features a suspension seat, wide windows, panoramic visibility, and a rear-view camera to improve operator awareness around the machine. The fully electric drive system simplifies operation by eliminating traditional gear shifting, allowing operators to quickly adapt and complete loading tasks with reduced effort.

Reinforced Structure with Multi-Function Attachment Capability

The strengthened frame and working device provide reliable support for different operating conditions. Compatible with various attachments and boom configurations, the ZT916EV can perform loading, material handling, and specialized tasks with one machine, helping users reduce equipment investment and improve utilization efficiency.

Efficient Charging System for Flexible Energy Management

The ZT916EV supports multiple charging configurations with adaptable charging connectors and automatic power adjustment based on plug type and voltage conditions. Equipped with a standard DC fast-charging port, the machine allows convenient charging solutions for different regional power standards and operational requirements.

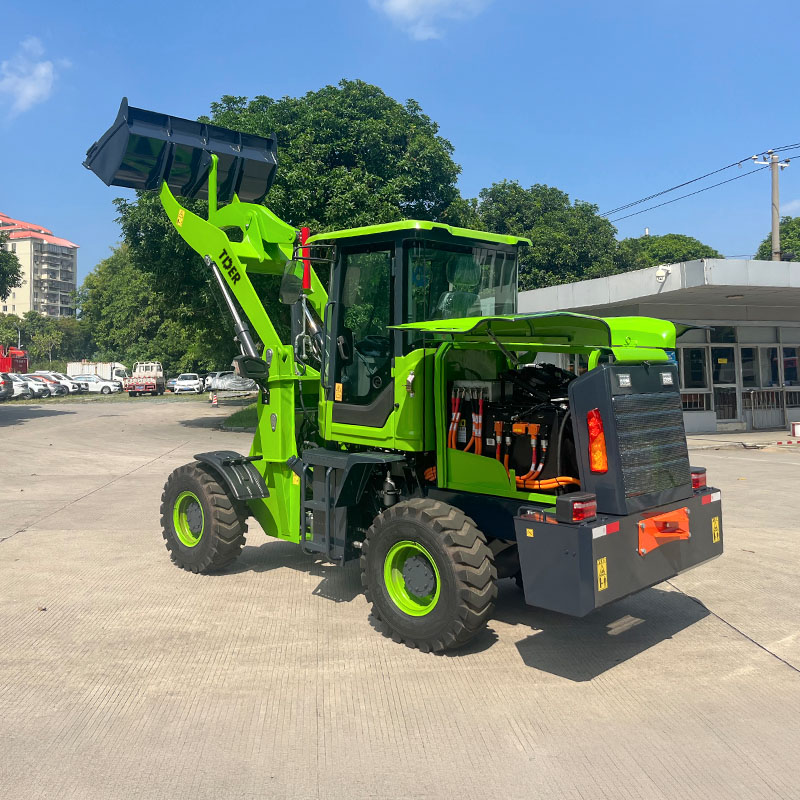

Simplified Maintenance with Accessible Electrical Components

The open maintenance area, visible orange high-voltage wiring, and protected aviation connectors make daily inspection easier and safer. The accessible battery compartment allows operators to quickly check electrical components, reducing maintenance complexity and improving machine availability.

Specifications

Emission Level	-	Zero Emission
Working Equipment Type	-	Z-Kinematics
Rated Loading Capacity	kg	1600
Bucket Capacity	m³	1
Operating Weight	kg	3970
Travel Speed	km/h	0-20
Rated Load Capacity	kg	1625
Tipping Load	kg	4425
Bucket Lifting Capacity	kg	3250
Bucket Breakout Force	kg	3800
Power Battery
Battery Type	-	Lithium Iron Phosphate Battery (LFP)
Battery Voltage	V	355
Battery Capacity	kWh	60
Operating Duration	h	6-8*
Charging System
DC Charging Time	h	1-2**
Transmission System
Motor Type	-	Permanent Magnet Synchronous Motor
Motor Power	kW	60
Control Mode	-	Stepless speed control, forward and reverse gear control
Driving System	-	Regenerative braking and hydraulic braking
Parking System	-	Disc Brake
Hydraulic System
Hydraulic Motor Type	-	Permanent Magnet Synchronous Motor
Hydraulic Motor Power	kW	30
Hydraulic Flow Rate	L/min	105
Rated Pressure	bar	160 / 180
Steering System	-	Load-Sensing Steering
Tire Size	-	23.5-16
Dimensions
Overall Length (with Standard Bucket)	mm	5600
Overall Width (Bucket)	mm	1900
Overall Height (Driving Position)	mm	2720
Wheelbase	mm	2250
Track Width	mm	1400
Overall Operating Height	mm	4030
Maximum Bucket Pin Height Above Ground	mm	3671
Dumping Height	mm	3200-3400
Dumping Distance	mm	800

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
