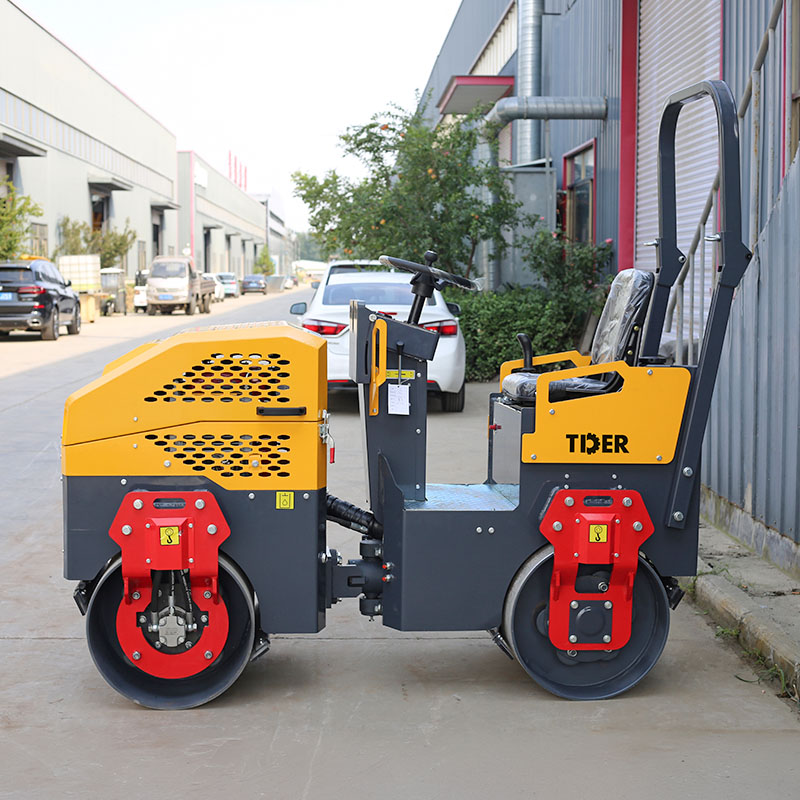

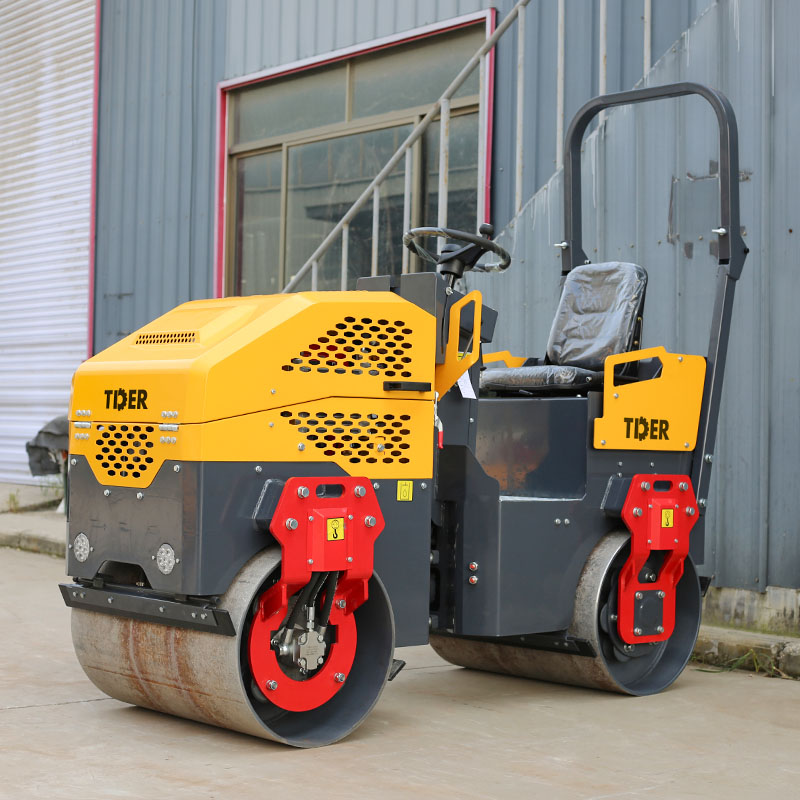

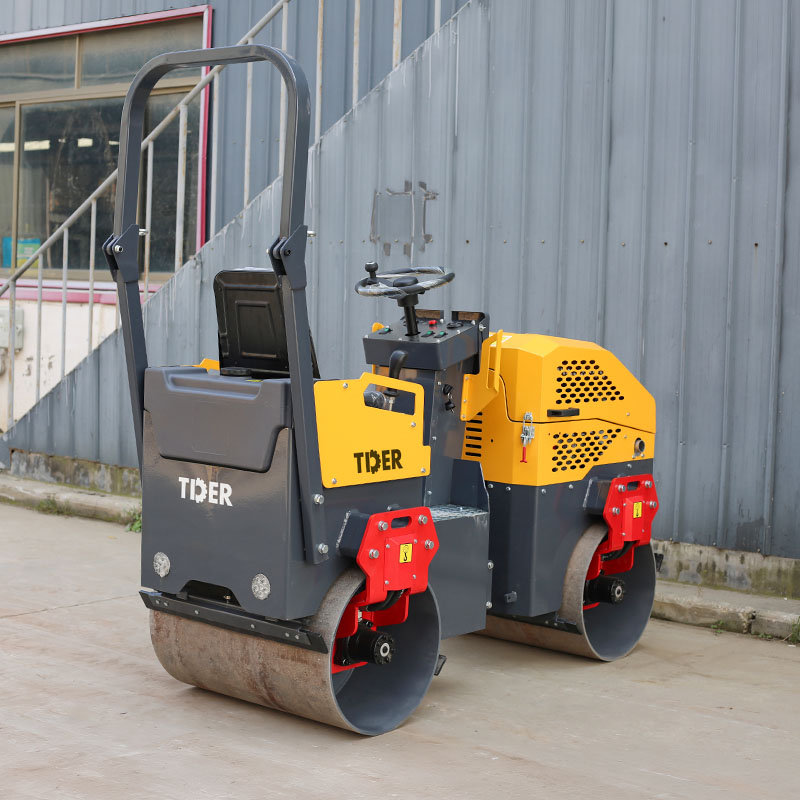

Name: 1.5 Ton Double Drum Roller with Full Hydraulic Drive
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Full Hydraulic Drive for Smooth Power Delivery

The TR15 features a full hydraulic dual-drive system with a variable piston pump, hydraulic travel components, and dedicated vibration control valves. This hydraulic architecture provides smooth power transmission, stepless speed adjustment, and improved control precision during continuous compaction work.

Hydraulic Vibration System with Precise Control

The TR15 adopts a hydraulic front drum vibration system controlled by a vibration solenoid valve, providing stable vibration output and more precise control during compaction operations. Compared with traditional mechanical vibration systems, the hydraulic configuration simplifies operation and helps maintain consistent compaction performance across different working conditions.

Safe Parking with Mechanical Handbrake

The TR15 is equipped with a parking handbrake system to improve machine stability during stopping and parking. The reliable braking design helps prevent unintended movement and enhances jobsite safety.

Specifications

Travel	Travel Speed	km/h	0-8
	Turning Radius	mm	2100
	Gradeability	%	30
Compaction	Static Line Load (Front / Rear)	N/cm	83 / 72
	Nominal Amplitude	mm	0.5
	Vibration Frequency	Hz	75
	Exciting Force	kN	30
Work	Drive Form	—	Hydraulic Dual-Wheel Drive
	Vibration Form	—	Hydraulic Vibration
	Vibrating Drum	—	Front Drum
	Steering Form	—	Hydraulic Steering
Sprinkler System	Sprinkler Type	—	Electrically Controlled Pressure Spraying
	Water Tank Material	—	Roto-Molded Water Tank
	Water Tank Capacity	L	95
	Hydraulic Oil Tank Capacity	L	34
	Parking Brake	—	Manual Brake
Engine	Engine Model	—	Changchai 192
	Engine Type	—	Diesel, Air-Cooled 4-Stroke
	Output Power	HP / rpm	11 / 3600
	Fuel Tank Capacity	L	5.5
	Optional Engines	—	Changchai 192 / Honda GX390 / Briggs & Stratton 25T2 / KIPOR 192
Dimensions	Front / Rear Drum Width	mm	800
	Front / Rear Drum Diameter	mm	530
	Overall Length	mm	2200
	Overall Width	mm	920
	Overall Height (Excluding Bumper)	mm	1470
	Fumigation-Free Wooden Case	mm	2250 × 990 × 1650
	Steel Frame Stacking Package	mm	2280 × 1000 × 2560
Weight	Net Weight	kg	1060
Weight	Operating Weight	kg	1500

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
