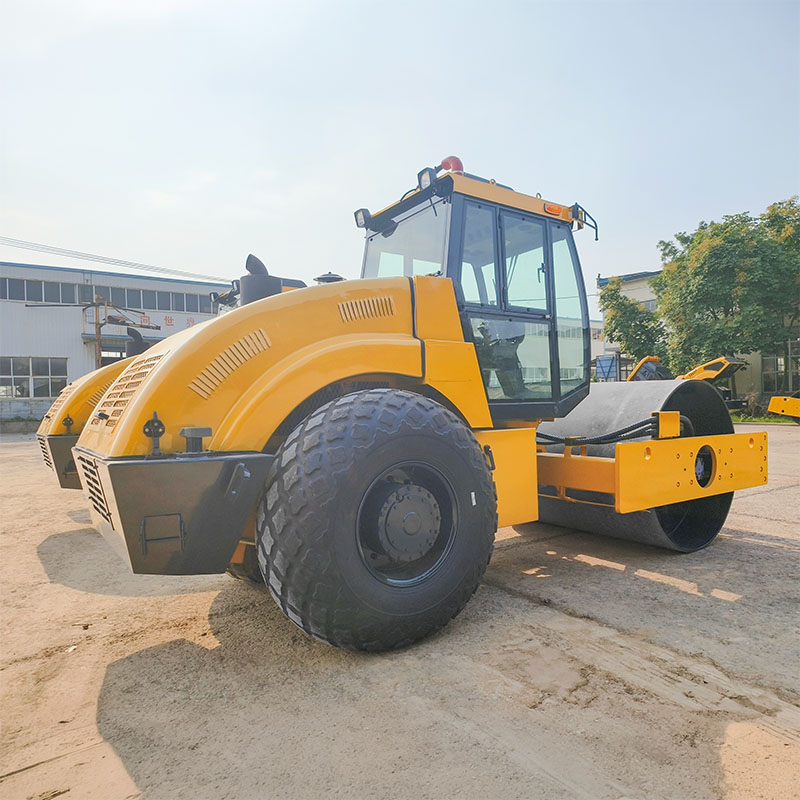

Name: 14 Ton Single Drum Roller with PERMCO Hydraulic Components
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Danfoss and PERMCO Hydraulic Components

The TRS214H uses Danfoss travel motors and a Danfoss travel pump, together with PERMCO vibration motors and a PERMCO vibration pump. These established American and European hydraulic brands bring proven component technology to the machine's travel and vibration systems, giving contractors access to internationally recognized hydraulic components.

Large Drum and Pneumatic Tires for Large-Scale Compaction

The machine combines a large front steel drum with two 23.1-26 pneumatic tires at the rear. The large drum and tire configuration provide a substantial working footprint, making the TRS214H suitable for extensive road construction and foundation compaction.

Human-Centered Design for Comfortable Long-Hour Operation

The TRS214H is designed around the operator’s working experience, combining an air-conditioned cab, UV-resistant glass and a curved windshield for a more comfortable and open working environment. The articulated steering and CVT further reduce the effort required for maneuvering and speed control, making the roller easier and more comfortable to operate during extended compaction shifts.

Specifications

Weight	Operating Mass	kg	14000
Compaction	Static Linear Load	N/cm	326
	Vibration Frequency	Hz	29 / 35
	Exciting Force	kN	290 / 180
	Vibration Amplitude	mm	1.7 / 0.8
Travel	Maximum Travel Speed	km/h	12
	Gradeability	%	30
	Turning Radius	mm	7000
Drum	Drum Width	mm	2100
Dimensions	Overall Dimensions (L × W × H)	mm	5900 × 2280 × 3050
	Wheelbase	mm	3185
	Minimum Ground Clearance	mm	400
Engine	Diesel Model	—	Cummins 6BT5.9
Engine	Diesel Power	kW	110

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.

Hot Tags :

14 Ton Single Drum Roller with PERMCO Hydraulic Components

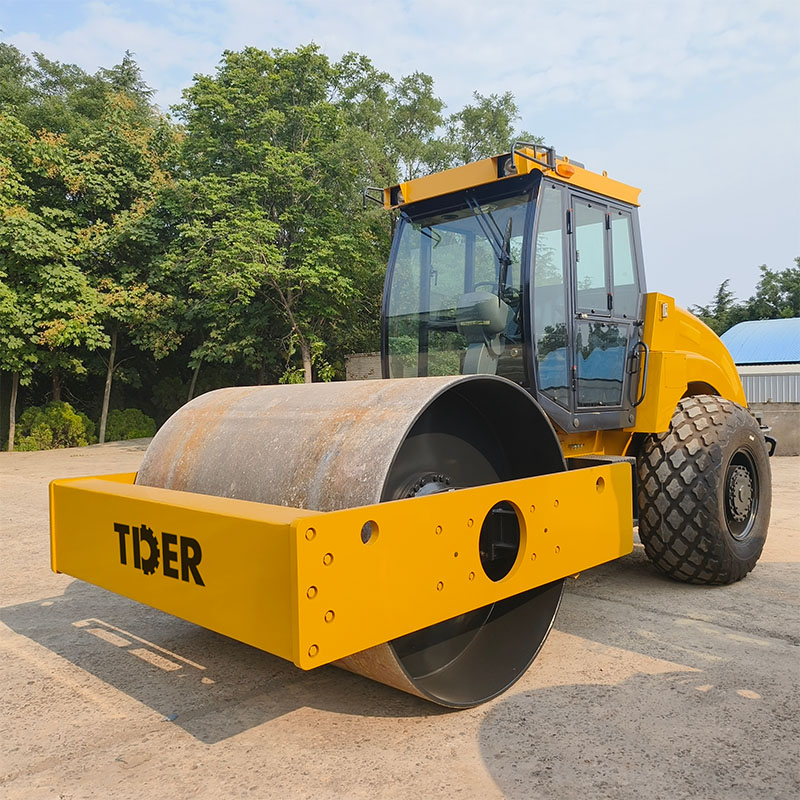

Single Drum Roller Compactor

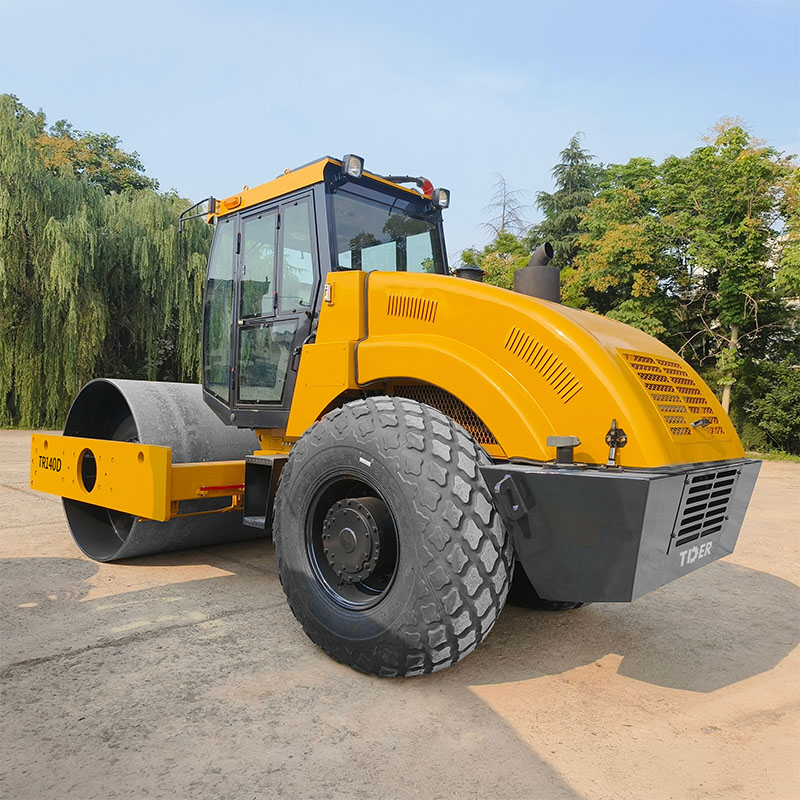

Single Smooth Drum Roller
