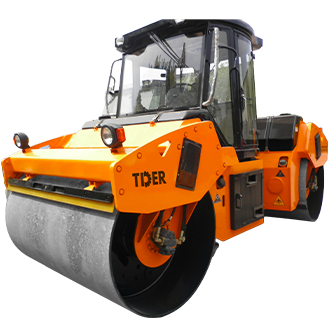

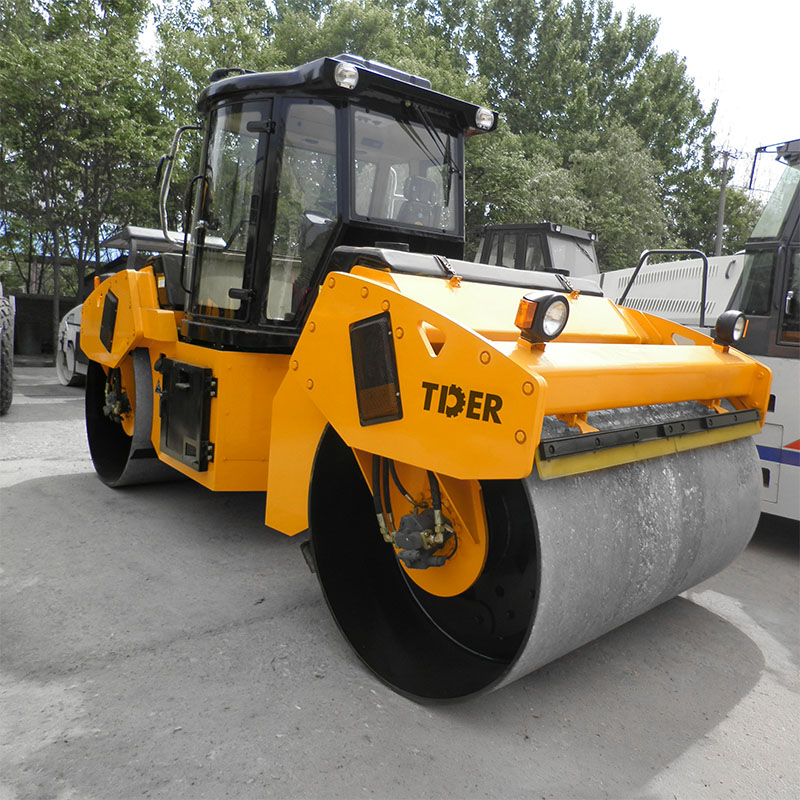

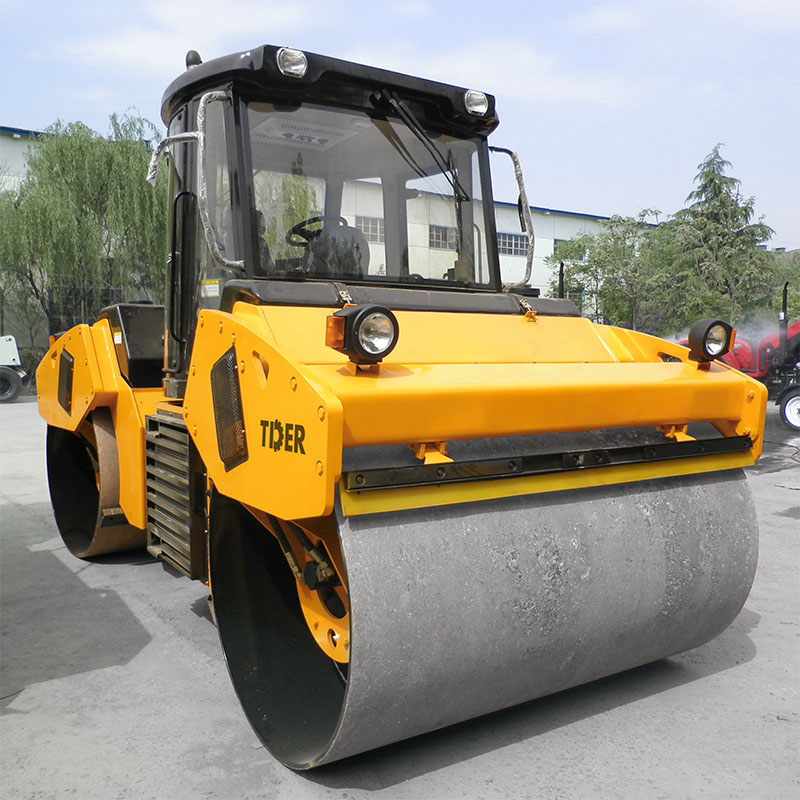

Name: 12 Ton Double Drum Asphalt Roller
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Double-Frequency, Double-Vibration System

Both front and rear drums are equipped with hydraulic vibration, while the double-frequency and variable-amplitude system allows the operator to select different vibration settings according to the material and compaction requirements. This gives the double drum asphalt roller greater flexibility across different stages of roadwork.

Hydrostatic Articulated Steering with Patented Crab Mechanism

The TR120C uses hydrostatic center-articulated steering together with a patented crab mechanism. This steering configuration allows the machine to adjust its working position more flexibly, which is particularly useful when following road edges, working in confined areas or maintaining a consistent compaction path.

Spacious Air-Conditioned Cab with Flexible Steering Seat

The air-conditioned operator's cab provides a spacious working environment, while the flexible steering seat allows the operator to adjust the seating position according to the working direction. This makes the TR120C a practical double drum ride on Roller for extended road construction operations.

Tilting Cab for Easier Maintenance Access

The entire driver's cab can be tilted to one side, opening access to the components underneath. This design makes inspection and routine maintenance more convenient and reduces the difficulty of reaching key service areas.

Fork-Type Frame for Stable Drum Loading

The fork-type frame provides a solid structural connection around the drums and supports stable load transfer during compaction. This helps the machine maintain consistent drum contact and working stability while operating on road surfaces.

Specifications

Weight	Operating Mass	kg	12000
	Front Axle Load	kg	6000
	Rear Axle Load	kg	6000
	Static Linear Load	N/cm	286
Frame	Frame Type	—	Fork-Type
Capacity	Water Tank Capacity	L	2 × 600
	Fuel Tank Capacity	L	154
	Hydraulic Tank Capacity	L	65
Compaction	Vibration Amplitude	mm	0.4 / 0.8
	Vibration Frequency	Hz	40 / 46
	Exciting Force	kN	90 × 2 / 160 × 2
Travel	Travel Speed	km/h	0–12
	Turning Radius	mm	7000
	Gradeability	%	40
Drum	Drum Diameter	mm	1350
	Drum Width	mm	2100
	Drum Rim Thickness	mm	20
Chassis	Wheelbase	mm	3717
Chassis	Ground Clearance	mm	324
Dimensions	Overall Dimensions (L × W × H)	mm	5056 × 2250 × 3300
Engine	Diesel Model	—	Cummins 6BT5.9
	Diesel Power	kW	110
	Diesel Rated Speed	rpm	2300

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
