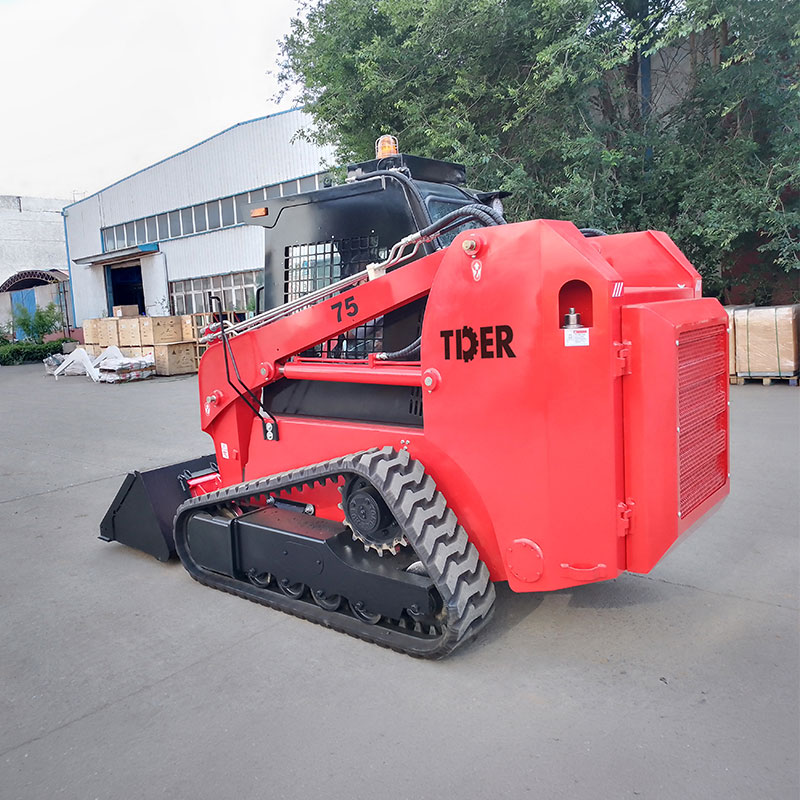

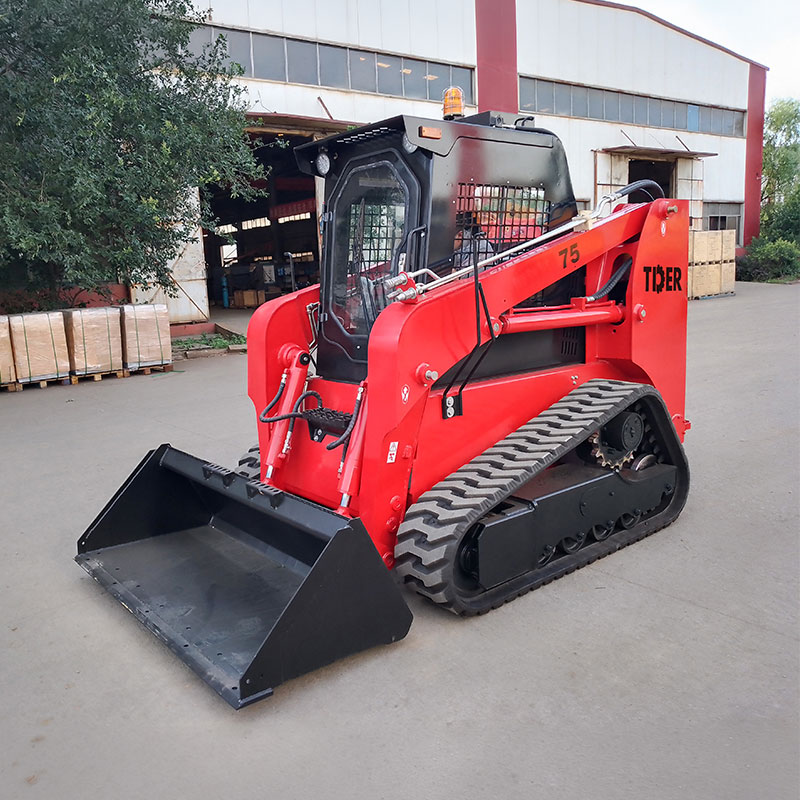

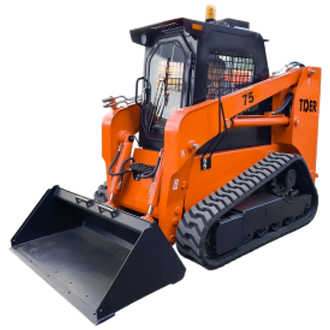

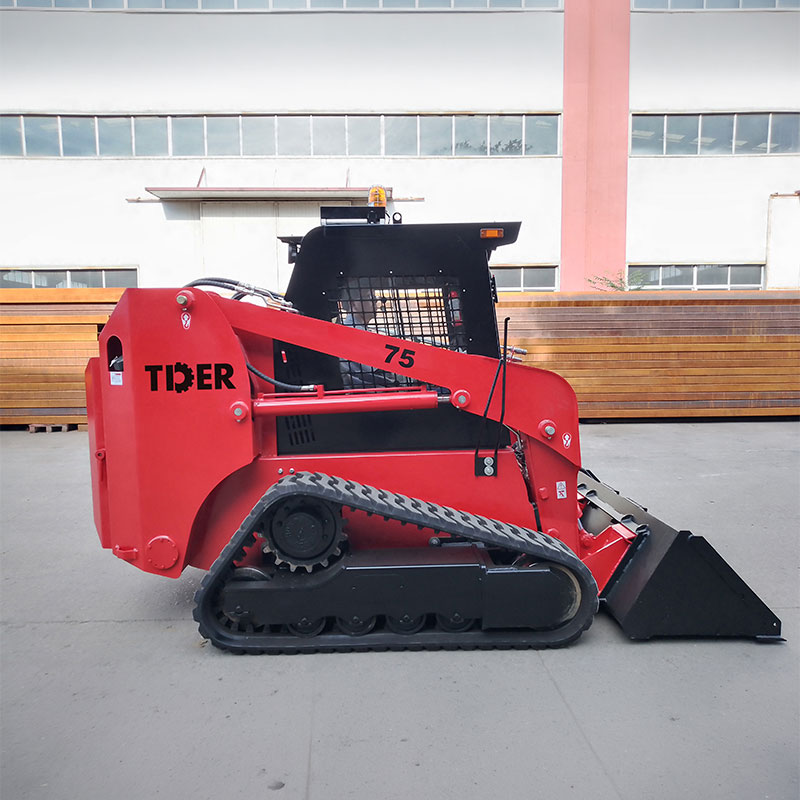

1050kg Track Skid Steer Loader
DS75
Features
High-Flow Hydraulic Interface for Professional Attachments
DS75 features a standard high-flow hydraulic interface, enabling stable operation of high-demand attachments such as cold planers, trenchers, grinding tools, and drilling equipment. This expands the machine from a loader into a multi-function jobsite power platform, capable of handling specialized industrial applications.
Track Undercarriage for Zero-Turn Maneuverability
The skid steer track system enables zero-radius turning capability, allowing the DS75 to operate efficiently in confined spaces such as urban construction sites, indoor demolition zones, and narrow jobsite corridors. Compared with wheeled machines, the track design provides better traction, reduced slippage, and higher stability on loose surfaces.
Industrial-Grade Lighting System for Night Operation
A high-intensity LED lighting cluster with forward-facing beam design provides daylight-quality illumination, ensuring safe and productive operation during night shifts or low-visibility working conditions. This reduces downtime and supports 24-hour jobsite productivity.
Air Filtration System Designed for Harsh Working Environments
The DS75 is equipped with a heavy-duty air filtration system, designed to protect the engine in dusty, sandy, or construction-heavy environments. This helps maintain engine cleanliness, improves combustion efficiency, and extends service intervals, reducing long-term operating costs.
High Output Powertrain for Sustained Jobsite Performance
DS75 integrates a 55 kW Xinchai industrial engine platform, optimized for maintaining consistent working output under extended load cycles. Instead of peak-only performance, the engine is tuned for stable power delivery during repetitive loading and material movement operations, where thermal stability and torque retention are more critical than short bursts of power.
Specifications
| Operating Load | Kg | 1050 |
| Max Speed | Km/H | 12\18 |
| Rated Flux | L/Min | 80 |
| High Flow Flux | L/Min | / |
| Tire Model | 320X86 | |
| Self Weight Bucket | Kg | 4200 |
| Bucket Capacity | M³ | 0.5 |
| Overall Operating Height | mm | 3480 |
| Hheight To Top Of Cab | mm | 2150 |
| Without Bucket Length | mm | 2750 |
| Overall Length With Bucket | mm | 3500 |
| Dumping Height | mm | 2230 |
| Width | mm | 1782 |
| Bucket Width | mm | 1830 |
| Height To Bottom Of Level Bucket | mm | 2730 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 2900 |
| Dumping Reach | mm | 715 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1500 |
| Ground Clearance | mm | 200 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1298 |
| Front Tuning Radius | mm | 2010 |
| Rear Tuning Radius | mm | 1714 |
| Rear Axle To Bumper | mm | 890 |
| Tread Width | mm | 1462 |
| Engine | Xinchai A498BGZ/T | |
| Rated Power | Kw | 55 |
| Fuel Tank Capacity | L | 90 |
