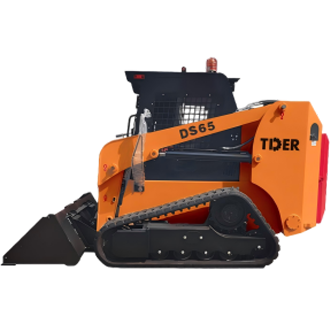

Name: 1000kg Tracked Skid Steer with Rexroth Hydraulic System
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Engine Choice Built for Jobsite Conditions and Operating Strategy

DS65 is designed with a multi-engine selection system, offering Xinchai, Yanmar, Kubota, Cummins, and LS power units. Instead of a one-size-fits-all configuration, this approach allows users to match the machine with the actual working environment, workload intensity, and maintenance conditions on site.

For operators working in remote or high-utilization projects, engine selection becomes a key factor in downtime control, fuel efficiency balance, and long-term machine availability, making the DS65 adaptable across different ownership and rental scenarios.

High-Flow Rexroth Hydraulic System for Advanced Attachment Performance

DS65 features a Rexroth hydraulic system with travel motors and main pump components, combined with Italian HB control valves, delivering stable and responsive hydraulic performance. With up to 120 L/min high-flow output, the system supports continuous operation of demanding attachments such as augers, breakers, and industrial tools, extending the machine’s capability to demolition, drilling, forestry, and material handling applications.

Intelligent Operator Cabin with Digital Control System

The enclosed cab features a multi-function digital display interface and ergonomic control layout, allowing centralized monitoring of machine status and performance data. This improves operational efficiency by reducing manual checks and ensuring real-time system awareness during complex jobsite operations.

Optional 360° Camera System for Enhanced Jobsite Safety

When equipped with an optional wide-angle HD camera system, blind spots are eliminated by displaying full surround views directly on the cabin monitor. This significantly improves safety during reversing, loading, and operation in congested or high-traffic environments.

Large-Scale Machine Geometry for Industrial Applications

With an overall operating weight of 4200 kg and optimized wheelbase of 1500 mm, the DS65 delivers a strong balance between lifting power and structural stability. This geometry ensures controlled performance during high-reach dumping and heavy bucket loading cycles.

Fast Cycle Height and Efficient Material Discharg

A dumping height of 2230 mm and optimized reach of 715 mm allow the DS65 to load trucks and containers efficiently. Combined with a 40° dumping angle and fast hydraulic response, this ensures smooth material flow and reduced cycle time per operation.

Specifications

Operating Load	Kg	1000
Max Speed	Km/H	12\18
Rated Flux	L/Min	80
High Flow Flux	L/Min	120
Tire Model		320X86
Self Weight Bucket	Kg	4200
Bucket Capacity	M³	0.5
Overall Operating Height	mm	3480
Hheight To Top Of Cab	mm	2150
Without Bucket Length	mm	2750
Overall Length With Bucket	mm	3500
Dumping Height	mm	2230
Width	mm	1782
Bucket Width	mm	1830
Height To Bottom Of Level Bucket	mm	2730
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	2900
Dumping Reach	mm	715
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	104
Wheelbase	mm	1500
Ground Clearance	mm	200
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	1298
Front Tuning Radius	mm	2010
Rear Tuning Radius	mm	1714
Rear Axle To Bumper	mm	890
Tread Width	mm	1462
Engine		Xinchai A498BGZ/T
Rated Power	Kw	55
Fuel Tank Capacity	L	90

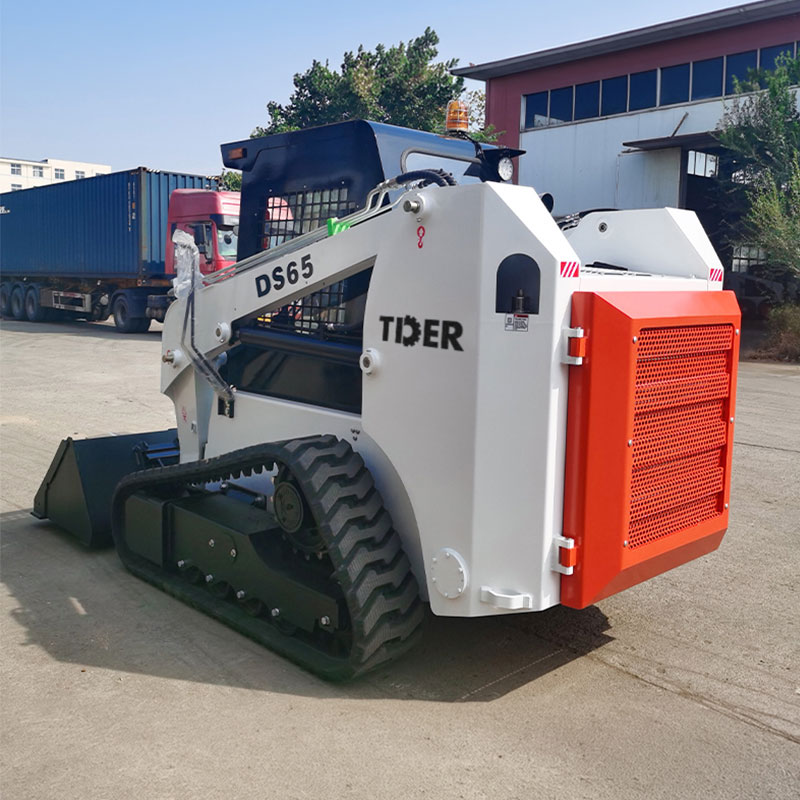

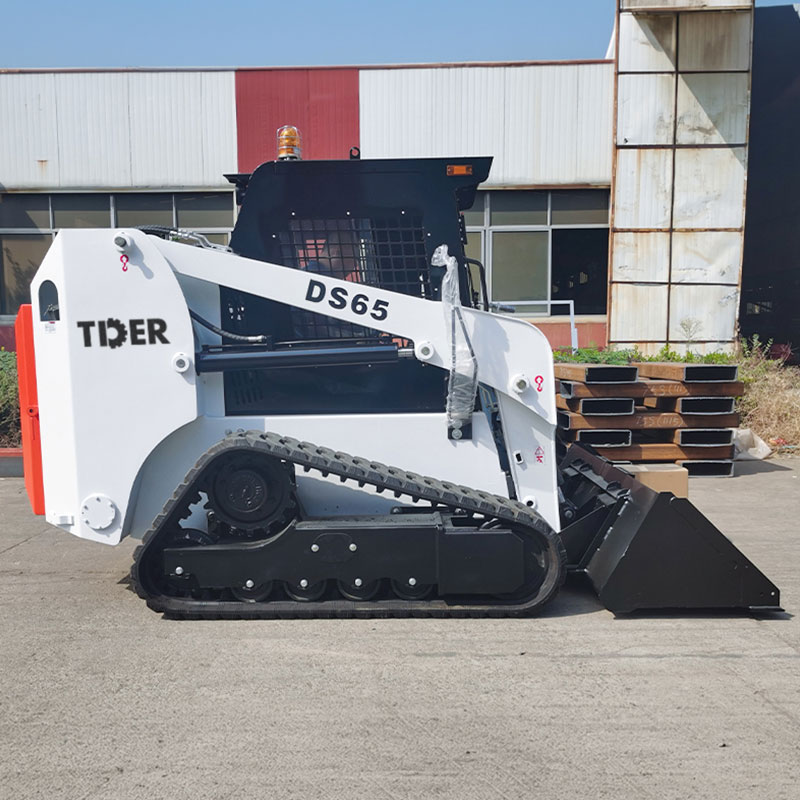

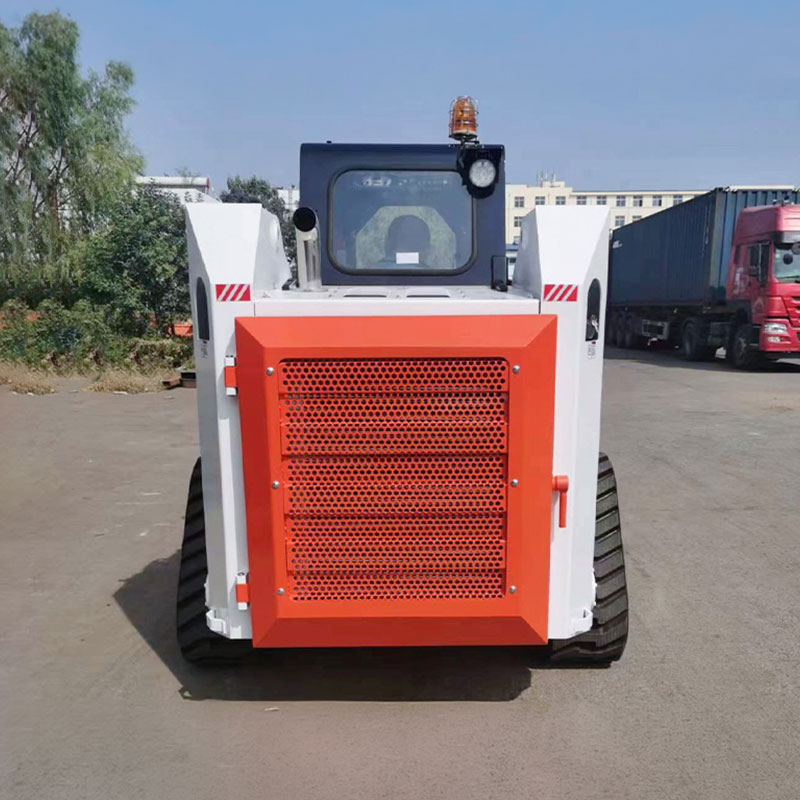

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
