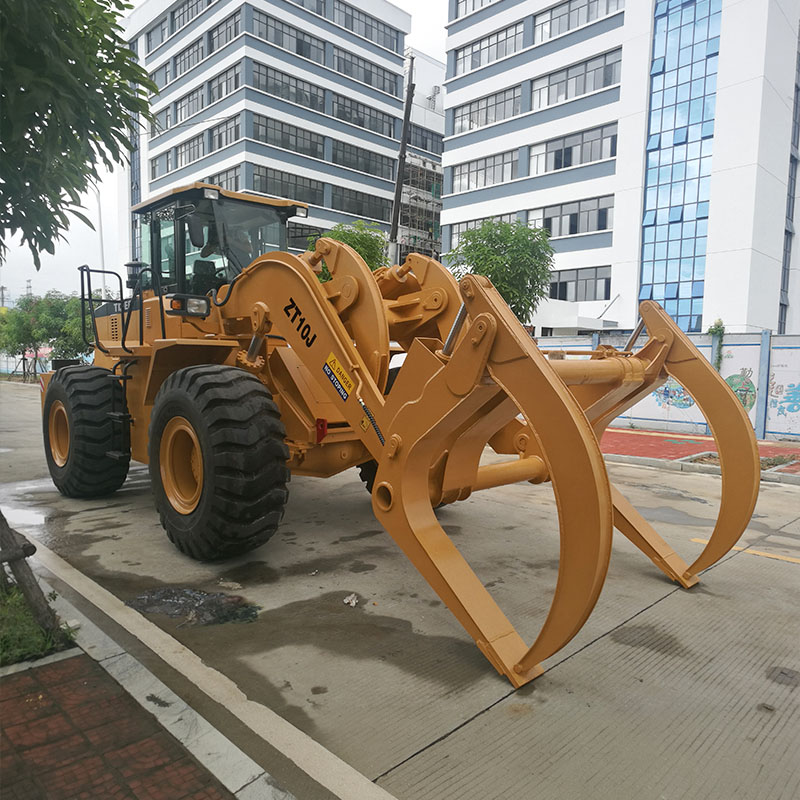

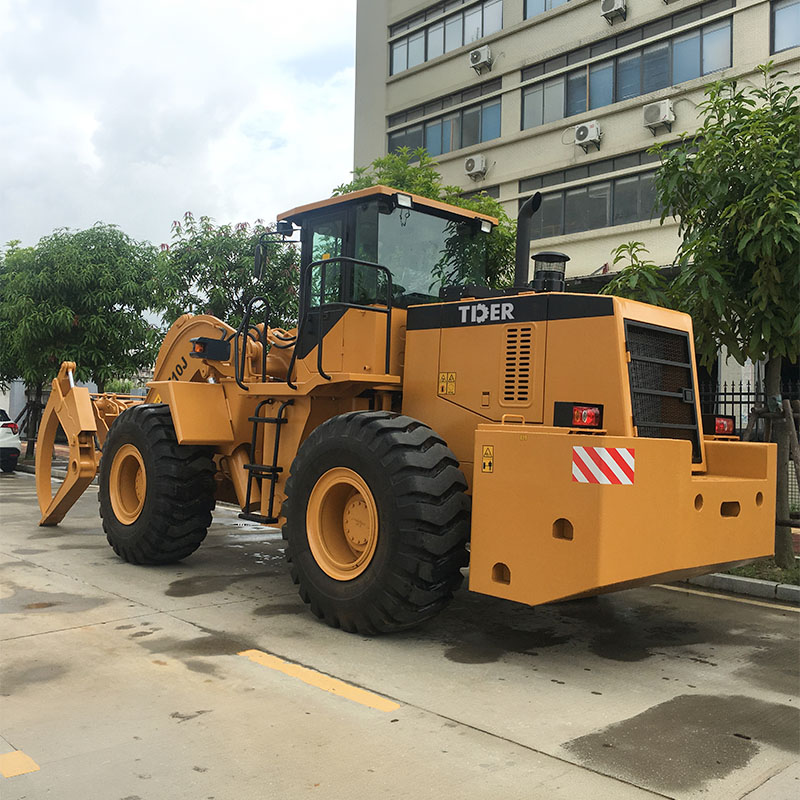

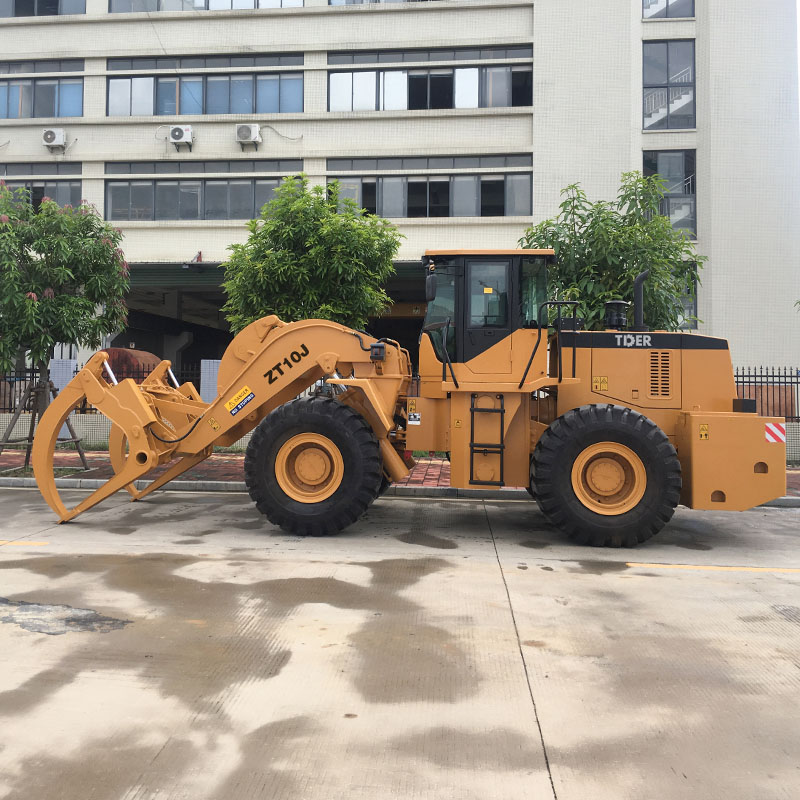

10 Ton Log Loader
ZT10J
Features
Weichai Industrial Engine Platform with Proven Service Availability
Powered by a Weichai WD10G220E21 engine delivering 162kW output, the ZT10J uses a mature industrial power platform with extensive application experience. The engine design provides reliable operation and convenient access to maintenance resources, helping customers reduce downtime during long-term timber handling operations.
Caterpillar Technology Transmission for Better Overload Adaptation
The ZT10J adopts a Beilian countershaft transmission featuring Caterpillar technology, providing efficient power delivery and improved adaptability under changing load conditions. The transmission system is designed to maintain smooth operation during frequent acceleration, reversing, and heavy timber transportation.
Forestry-Ready Chassis Design for Uneven Ground Conditions
The ZT10J combines a heavy counterweight, extended wheelbase, and increased ground clearance to improve machine balance when operating on soft ground, muddy roads, and uneven forestry sites. The chassis design helps maintain reliable movement when transporting irregular timber loads.
Dual-Line Disc Brake System Designed for Safer Timber Transport
The four-wheel dual-line caliper disc braking system with air-assisted storage provides dependable braking control during loaded travel. The design improves safety when carrying heavy timber materials across slopes, yards, and outdoor working areas.
Low-Maintenance Structure for Outdoor Working Environments
The ZT10J features sealed articulation points and protective design elements to reduce dust and contamination impact during outdoor operation. This structure helps extend component service life and supports reliable use in forestry and industrial environments.
Specifications
| Operating Weight | kg | 20,000 |
| Rated Loading Capacity | kg | 10,000 |
| Engine Model | Weichai | |
| Rated Power | kW | 162 |
| Rated Speed | r/min | 2000 |
| Max. Torque | N·m | ≥920 |
| Forward Gear I Speed | km/h | 0-11.5 |
| Forward Gear II Speed | km/h | 0-38 |
| Reverse Gear I Speed | km/h | 0-16 |
| Gradeability | ° | ≥25 |
| Overall Length | mm | 8000 |
| Overall Width | mm | 2870 |
| Overall Height | mm | 3300 |
| Turning Angle | ° | 35 |
| Wheelbase | mm | 3550 |
| Wheel Tread | mm | 2510 |
| Working Cycle Time | s | 16 |
| Tire Model | 23.5-25 |
