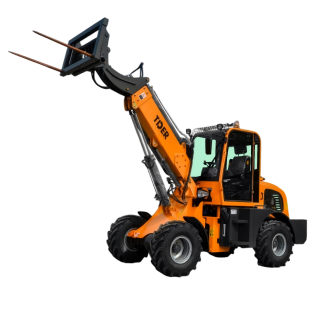

1 Ton Telescopic Loader
ZT910T
Features
Spacious Cab Designed For Operator Comfort
The ZT910T features an optimized operator cab with more interior space, additional storage options and a wider entrance. The improved layout gives operators easier access to the controls and creates a more comfortable working environment for long operating hours.
Better Temperature Control For Year-Round Operation
An optimized air circulation and heating system helps maintain a comfortable cab temperature, while an optional air-conditioning system provides additional climate control. This allows operators to work more comfortably across different weather conditions.
Ergonomic Controls With Reduced Noise And Vibration
The ZT910T combines ergonomically arranged controls with a refined interior design to make daily operation more intuitive. Reduced vibration, noise and heat inside the cab further improve the operator experience and help reduce fatigue during extended work.
Easy-Access Maintenance To Maximize Machine Availability
The ZT910T features an optimized component layout with all key maintenance points positioned for easy access. This design simplifies routine inspection and servicing, reduces maintenance time and helps minimize downtime, keeping the machine available for work while supporting more efficient operating costs.
Specifications
| Main Technical Specifications | Rated Load | kg | 1000 |
| Engine | — | Changchai | |
| Rated Power | kW | 25 | |
| Operating Weight | kg | 3800 | |
| Bucket Capacity | m³ | 0.5 | |
| Bucket Type | — | Heavy-Duty Bolt-On Teeth | |
| Maximum Load | kg | 1000, Including Bucket or Attachment | |
| Steering System | — | Articulated Frame with Hydraulic Power Steering | |
| Driving System | — | Hydraulic Converter, Four-Wheel Drive | |
| Service Brake | — | Four-Wheel Expanding-Shoe Drum Brake | |
| Parking Brake | — | Hand-Operated | |
| Overall Dimensions | Overall Length | mm | 4900 |
| Overall Width | mm | 1600 | |
| Overall Height | mm | 2700 | |
| Working Range | Maximum Discharge Height | mm | 4500 |
| Minimum Discharge Height | mm | 3500 | |
| Dimensions & Chassis | Wheelbase | mm | 2355 |
| Wheel Track | mm | 1415 | |
| Tire Model | — | 20.5/70-16 | |
| Hydraulic System | System Pressure | MPa | 16 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

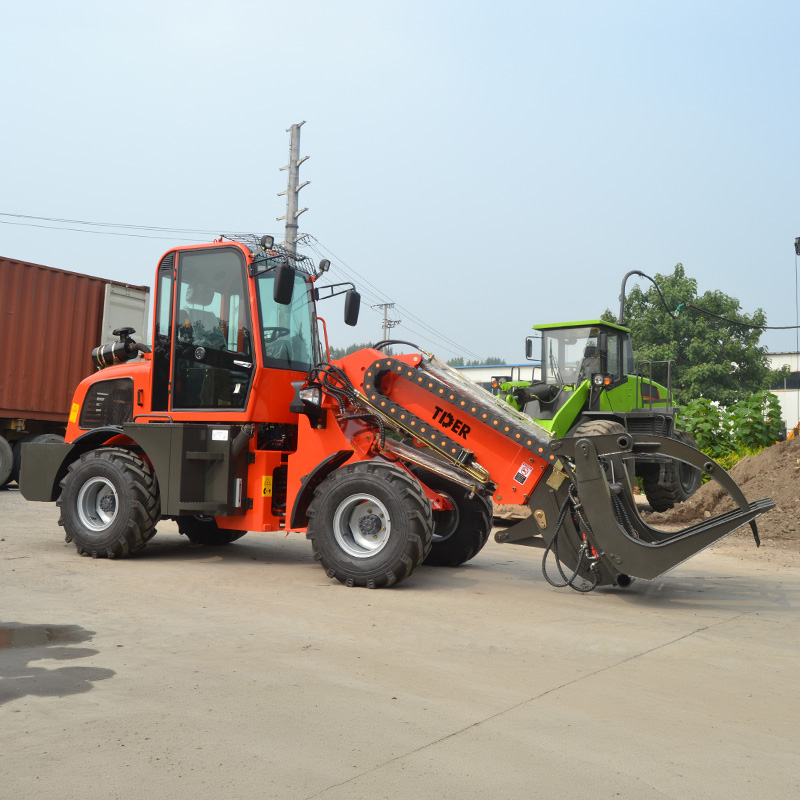

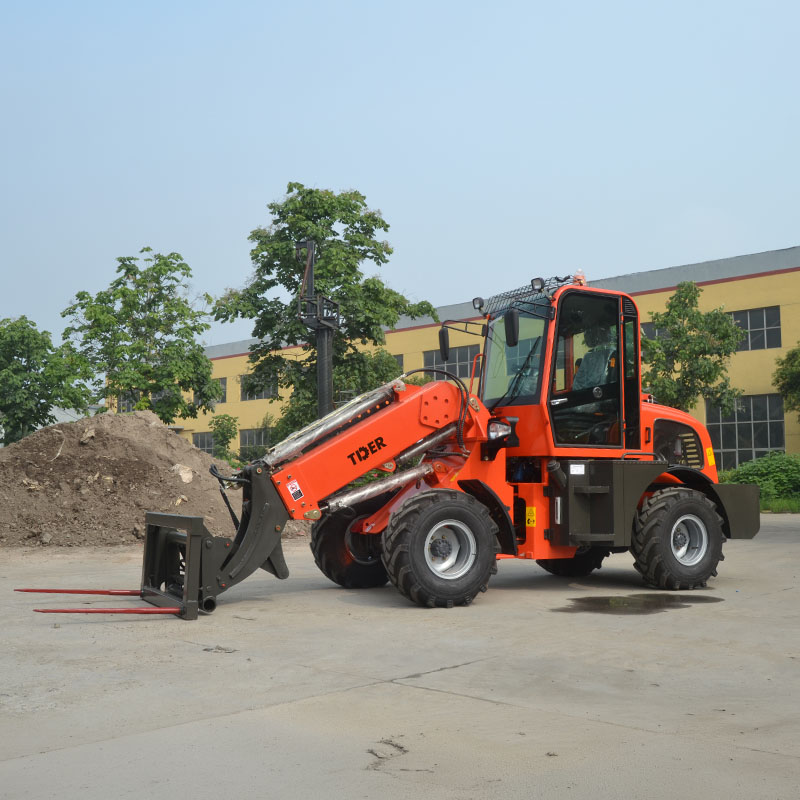

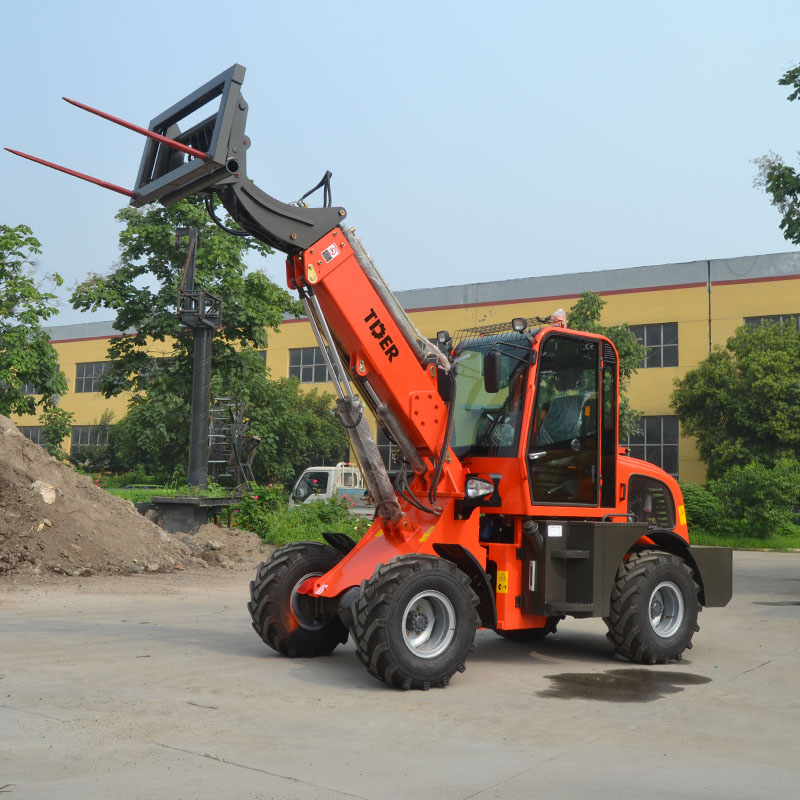

Product Showcase
