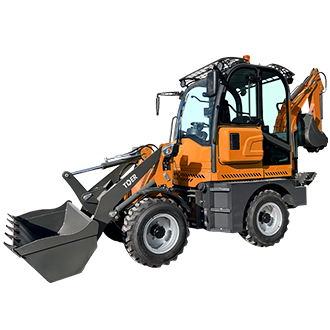

Name: 1 Ton Backhoe Loader with ISUZU Axle
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Multiple Engine Configurations for Greater Flexibility

For international markets and higher emission requirements, ZT15-20 supports engine options from globally recognized brands such as Kubota, Yanmar, and Perkins. These options are available with Euro V and EPA-compliant configurations, ensuring the machine meets strict environmental regulations while maintaining strong performance and reliability.

Axle Design Inspired by ISUZU Engineering

The axle system is developed based on proven ISUZU engineering concepts, ensuring stable load-bearing performance, smooth power transmission, and long-term durability under continuous operation.

Comfortable Operation with User-Oriented Cabin Design

The European-style cabin, combined with an adjustable control dashboard, provides a more ergonomic and comfortable operating environment, reducing operator fatigue during long working hours and improving overall productivity.

Versatile Working Capability for Multi-Function Applications

With 180° excavator rotation, loader dumping function, and a maximum digging depth of 2.35m, the machine is capable of handling loading, digging, and various construction tasks efficiently.

The pre-installed breaker pipeline further expands functionality, allowing quick adaptation to breaking and demolition work without additional modification.

Stable Structure with Enhanced Safety & Traction

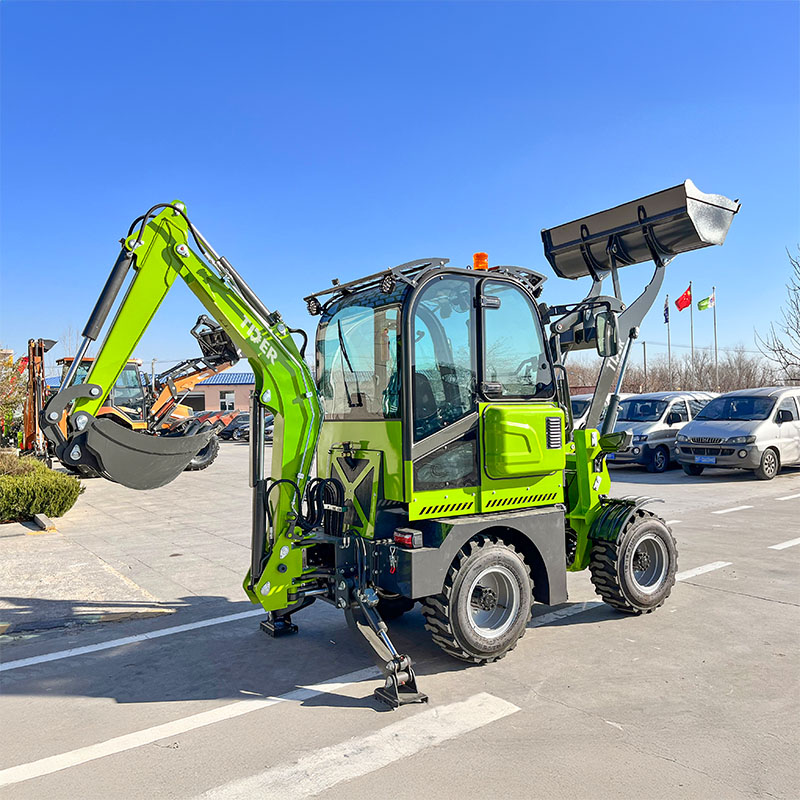

The A-frame outrigger system provides stable ground support during excavation, ensuring reliable operation across different working conditions.

Combined with articulated full hydraulic steering, the machine maintains flexible maneuverability, while the air-over-hydraulic disc braking system and 4WD configuration improve braking reliability, traction, and overall operational safety.

Specifications

Overall Dimensions	Overall Dimensions (L × W × H)	mm	5200 × 1600 × 2560
	Minimum Ground Clearance	mm	220
	Wheelbase	mm	1120
Performance Parameters	System Pressure	MPa	16
	Operating Weight	kg	2800
	Maximum Travel Speed	km/h	25
	Maximum Gradeability	°	25
	Minimum Turning Radius	mm	2310
Loader Parameters	Maximum Lifting Height	mm	3100
	Maximum Dumping Height	mm	2430
	Maximum Load Capacity	kg	1000
	Bucket Width	mm	1600
	Bucket Capacity	m³	0.6
Backhoe Parameters	Bucket Capacity	m³	0.12
	Bucket Width	mm	475
	Boom Length	mm	1860
	Maximum Digging Radius	mm	3500
	Maximum Digging Depth	mm	2350
	Maximum Digging Height	mm	3360
	Dumping Height	mm	2280
	Swing Angle	°	180
Steering System	Steering Type	—	Articulated Fully Hydraulic Steering
Steering System	Steering Angle	°	38
Engine	Engine Model	—	Yunnei 490
	Rated Power	kW	37
	Rated Speed	rpm	2400
	Number of Cylinders × Bore	mm	4 × 90
Axle	Axle Type	—	ISUZU 50
Tires & Brakes	Tire Size	—	12-16.5
	Service Brake	—	Air-over-Hydraulic Caliper Disc Brake
	Parking Brake	—	Manual
Other Specifications	Drive Type	—	4-Wheel Drive (4WD)
	Transmission Type	—	Hydrodynamic Transmission
	Diesel Tank Capacity	L	47.5
	Hydraulic Oil Tank Capacity	L	47.5

*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

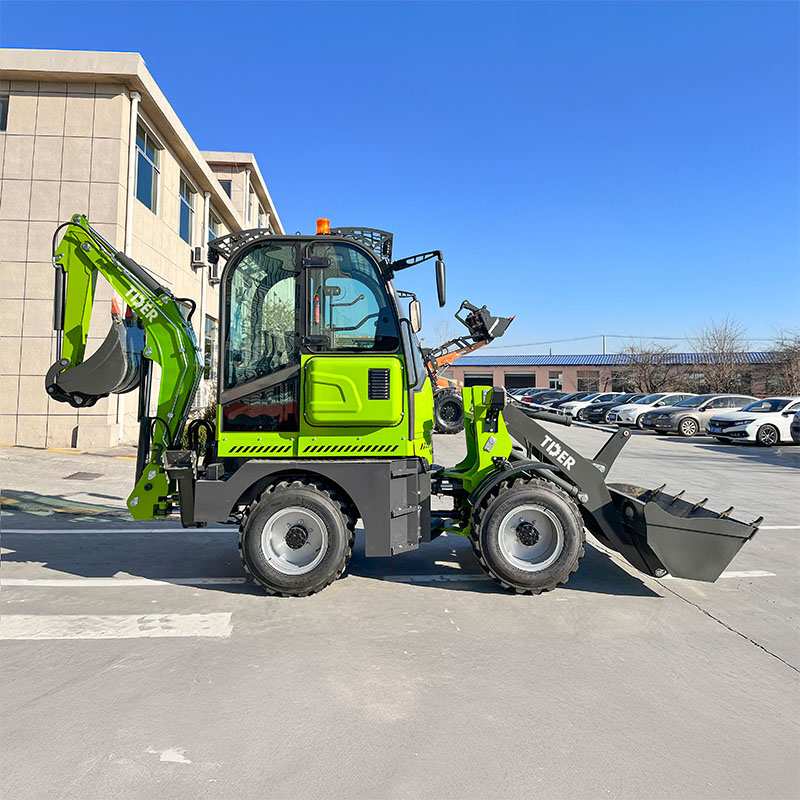

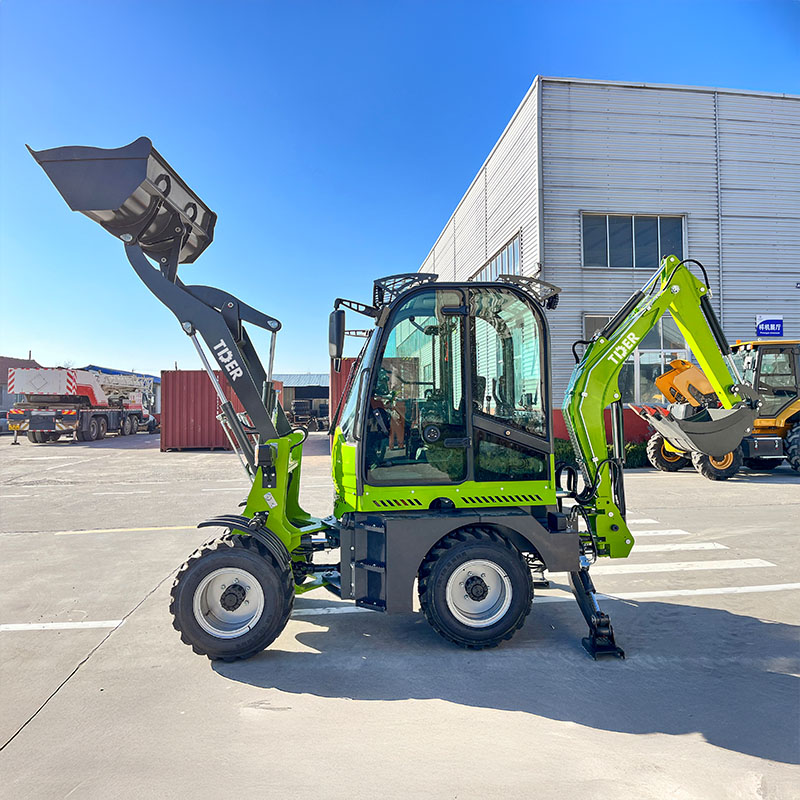

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
