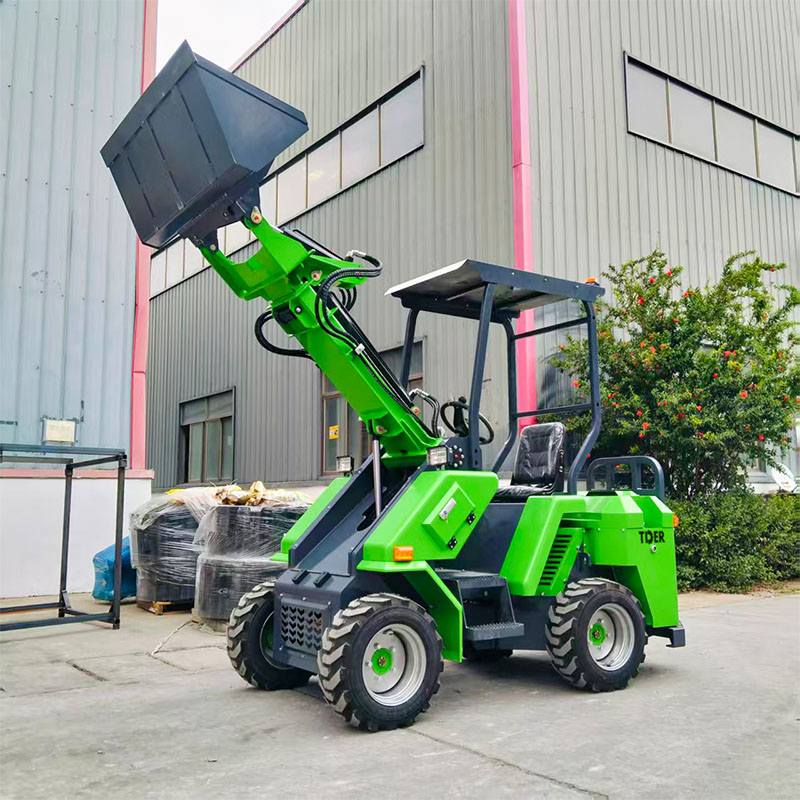

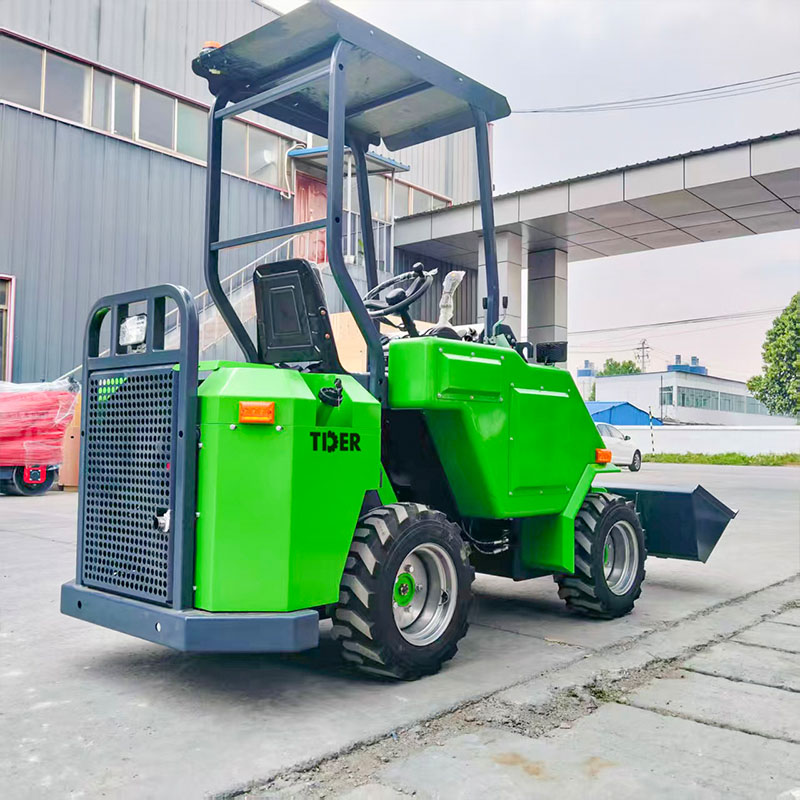

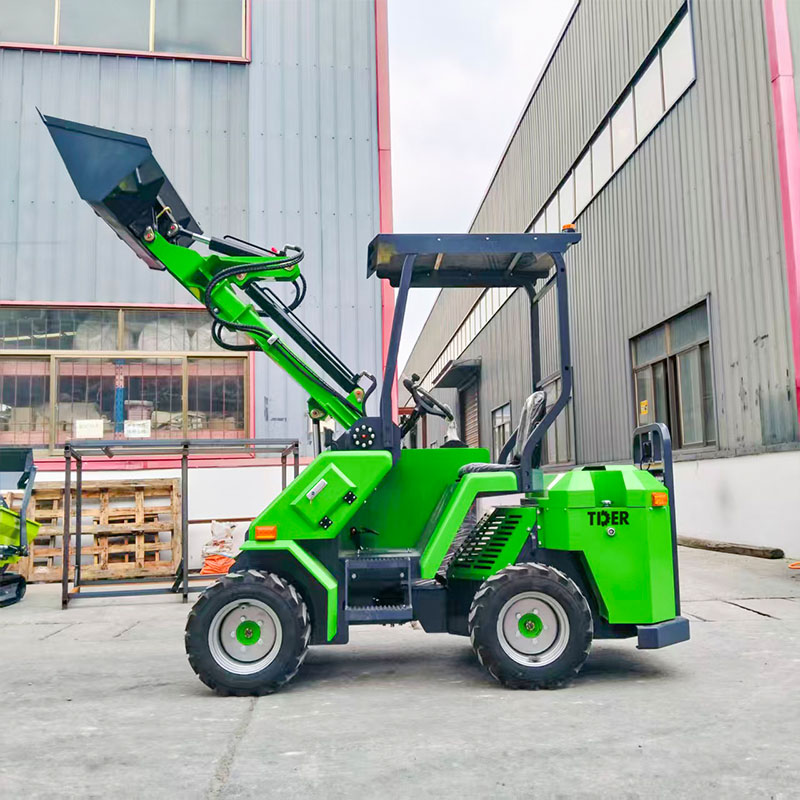

0.5 Ton Telescopic Loader
ZT905T
Features
EPA Stage V Engine Options for Clean and Reliable Power
Powered by a Turbofan 739 16.8kW EPA Stage V engine, the ZT905T delivers reliable power with cleaner emissions, efficient fuel consumption, and stable performance for daily operations. Multiple engine options, including Kubota, Briggs & Stratton, Honda, and Kohler EPA Stage V engines, are available to meet different market regulations and customer performance requirements.
Telescopic Boom Design Expands Working Range and Improves Versatility
The ZT905T combines a 3,350mm lifting height telescopic boom, compact structure, and hydraulic attachment capability to achieve greater working flexibility than conventional compact loaders. With a 0.5-ton lifting capacity and 0.3m³ bucket, it can efficiently handle loading, stacking, feeding, and material transfer tasks in farms, landscaping, construction sites, and other confined areas, helping customers maximize equipment utilization with one machine.
Hydrostatic Drive System for Precise Control and Easier Operation
The ZT905T features a hydrostatic travel system with direct motor drive, providing smooth power transmission and excellent maneuverability. Combined with stepless speed control and electronic joystick operation, operators can easily manage travel speed, boom movement, bucket operation, telescopic functions, and attachments with greater precision, reducing training requirements and improving working efficiency.
Custom Color Solutions for Dealer and Project Requirements
The ZT905T supports customized color options without additional cost, with standard choices including gray, white, green, yellow, and red. Customers can also provide their own color code for personalized designs, allowing dealers, rental companies, and contractors to match equipment with their brand identity or project requirements.
Specifications
| Dimensions | ||
| Maximum Lifting Height | mm | 3350 |
| Maximum Hook Height | mm | 2680 |
| Main Boom Lifting Height (45° Tilt Angle) | mm | 2000 |
| Main Boom Tilting Range | mm | 1240 |
| Maximum Load Capacity of Main Boom | kg | 800 |
| Small Arm Lifting Height | mm | 2680 |
| Small Arm Tilting Height (45° Tilt Angle) | mm | 2300 |
| Maximum Load Capacity of Small Arm | kg | 600 |
| Overall Length (Bucket on Ground, Small Arm Retracted) | mm | 3380 |
| Small Arm Extension Length | mm | 570 |
| Overall Width | mm | 1240 |
| Overall Height | mm | 2250 |
| Wheel Track | mm | 1360 |
| Minimum Ground Clearance | mm | 190 |
| Turning Radius | mm | 2600 |
| Hydraulic System | ||
| System Pressure | MPa | 25 |
| Standard Flow Rate | L/min | 33 |
| Engine | ||
| Engine Brand | — | Runto 739 |
| Engine Power | kW | 16.8 |
| Fuel Tank Capacity | L | 30 |
| Hydraulic Oil Tank Capacity | L | 30 |
| Optional Engines | — | Runto 739 / Koop 292 / Heli 3864 / Honda GX690 / Kubota D1105 |
| Emission Options | — | China Stage II / EPA / Euro V |
| Performance Parameters | ||
| Loading Capacity | kg | 500 |
| Bucket Capacity | m³ | 0.3 |
| Maximum Speed | km/h | 9 |
| Net Weight | kg | 1450 |
| Operating Weight | kg | 2000 |
| Gradeability | % | 30 |
| Tire Model | — | 23 × 8.5-12 |
| Drive Type | — | Four-Wheel Drive |
| Steering Type | — | Hydraulic Articulated Steering |
| Export Packaging | ||
| Fumigation-Free Wooden Case Size | mm | 3100 × 1350 × 1770 |
