Features

Efficient Choice for Everyday Farm Operations

The TD904 is designed for farmers looking for a capable tractor without moving into unnecessarily high operating capacity. Its 90HP platform is suitable for cultivation, transport, soil preparation, and routine farm work, providing a practical balance between working capability and day-to-day operating costs.

Precise Speed Selection from Field Work to Low-Speed Tasks

The 24F+8R transmission covers a wide range of operating speeds, while the creeper gear provides additional control for low-speed applications. This allows the tractor to maintain a suitable working pace when conditions or implement requirements change.

Adjustable Draft and Depth Control

The hydraulic system supports force control, position control, combined force-position control, and floating control. Operators can therefore adjust implement depth and response according to soil resistance, helping maintain more consistent working conditions across different fields.

Comfortable Cab for Longer Working Hours

The standard air-conditioned cab, large field of view, front and rear wipers, and sealed operator environment provide protection from dust, mud, and changing weather conditions. The TD904 is therefore suited to extended daily operation rather than short-duration field work alone.

Specifications

	Drive Type	—	4×4
	Rated Power	kW	66.2
	Overall Dimensions (L × W × H)	mm	4485 × 2100 × 3060
	Wheelbase	mm	2385
	Minimum Ground Clearance	mm	420
	Minimum Operating Mass	kg	4560
	Front Tread	mm	1620 (1620–1820), Adjustable
	Rear Tread	mm	1620 (1620–1820), Adjustable
Matched Power	Clutch Type	—	Dry-Type, Double-Acting
	Engine	—	YTO, 4-Cylinder, China Stage II
	Rated Speed	r/min	2300
Working System	Transmission / Gear	—	TD24F + 8R; 16F + 8R Optional
	PTO Type	—	8-Spline, Ø38, I-Type; 6-Spline Optional
	PTO Rated Power	kW	≥56.3
	PTO Speed	r/min	760/1000 or 760/850 or 540/1000

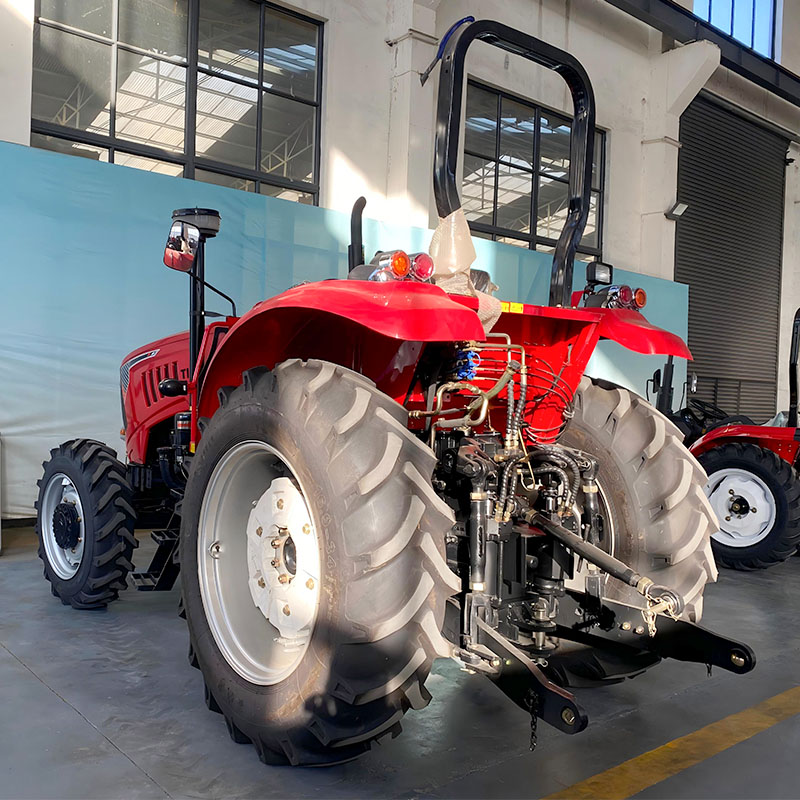

Hydraulic System	Three-Point Linkage	—	Rear, 3-Point Suspension, Category II
	Hydraulic Output	—	3-Group Valve
	Hydraulic Adjustment Mode	—	Forced Hydraulic System, Position Control, Floating Control
	Maximum Lifting Force at 610 mm Frame Center	kN	≥15.9
Tire System	Standard Tire Size (Front / Rear)	—	12.4-24 / 16.9-34
Tire System	Optional Tire I	—	13.6-24 / 16.9-38
Other Options	Optional Equipment	—	Cabin, Air Brake, ROPS, Sunroof

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
