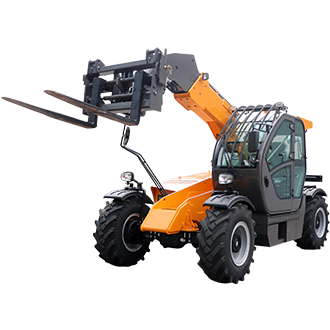

3 Ton Telehandler
FT30
Features
Smart Handling for faster everyday material movement
The FT30 is designed around frequent loading, stacking and repositioning tasks. Its Smart Handling system gives operators three operating modes: Shovel Mode automatically retracts the boom while lowering the loading system, Batch Mode coordinates boom movement for vertical handling, and Manual Mode leaves direct control to the operator while maintaining overload protection.
40 km/h travel keeps the machine moving between work areas
The FT30 combines a continuously variable drive with electronically controlled travel, allowing smooth acceleration from standstill to up to 40 km/h without power interruption from manual gear changes. For yards, warehouses, construction sites and material-handling operations where the machine repeatedly travels between loading and unloading points, this reduces unnecessary travel time.
A 7 m boom without sacrificing day-to-day maneuverability
Its two-stage 7 m boom provides useful reach for routine loading and stacking while keeping the machine practical for everyday site movement. Four-wheel drive and three steering configurations give the operator different ways to approach pallets, trucks and confined working areas.
Smooth cylinder control protects the machine during repetitive cycles
End-position damping is built into the lifting, tilting and telescopic cylinders. By absorbing movement as the cylinders approach their end positions, the system helps reduce hydraulic pressure peaks and unnecessary shocks during repeated boom operations.
Attachment flexibility makes one machine useful for more jobs
A hydraulic quick coupler and three-function valve allow the FT30 to work with different compatible attachments. This gives buyers looking for a versatile telehandler a practical platform for more than conventional fork handling.
Specifications
| Main Performance | Maximum Capacity | kg | 3000 |
| Maximum Lift Height | m | 7 | |
| Maximum Outreach | m | 3.2 | |
| Weight & Dimensions | Overall Length to Carriage | m | 4.65 |
| Length to Face of Forks | m | 5.87 | |
| Overall Width | m | 2.2 | |
| Overall Height | m | 2.55 | |
| Wheelbase | m | 3.15 | |
| Ground Clearance | m | 0.35 | |
| Overall Cab Width | m | 0.84 | |
| Tilt-Up Angle | ° | 12 | |
| Tilt-Down Angle | ° | 114 | |
| External Turning Radius (Over Tires) | m | 4.25 | |
| Unladen Weight (with Forks) | kg | 7600 | |
| Tires | Tire Type | — | Pneumatic |
| Standard Tire Size | — | 16/70-20 | |
| Forks | Fork Length / Width / Section | mm | 1220 × 125 / 50 |
| Performance | Lifting Time | s | 10 |
| Lowering Time | s | 7 | |
| Extension Time | s | 12 | |
| Retraction Time | s | 8.6 | |
| Crowd Time | s | 4.8 | |
| Dump Time | s | 3.4 | |
| Engine | Engine Brand | — | YUNNEI |
| Engine Model | — | YN38GBZ | |
| Rated Power | kW | 76 | |
| Transmission | Transmission Type | — | Torque Converter |
| Number of Gears (Forward / Reverse) | — | 46055 | |
| Maximum Travel Speed | km/h | 35 | |
| Parking Brake | — | Automatic Air-Cut Brake | |
| Service Brake | — | Oil-Immersed Multi-Disc Brakes on Front & Rear Axles | |
| Hydraulics | Hydraulic Pump Type | — | Gear Pump |
| Hydraulic Flow / Pressure | L/min / bar | 100 | |
| Tank Capacities | Engine Oil | L | 5.5 |
| Hydraulic Oil | L | 70 | |
| Fuel Tank | L | 95 | |
| Noise & Vibration | Noise at Driving Position (Lpa) | dB | 82 |
| Noise to Environment (Lwa) | dB | 105 | |
| Hand/Arm Vibration | m/s² | <2.50 | |
| Miscellaneous | Steering Wheels (Front / Rear) | — | 2/2 |
| Drive Wheels (Front / Rear) | — | 2/2 | |
| Safety Cab Homologation | — | FOPS Level 2 Cab |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

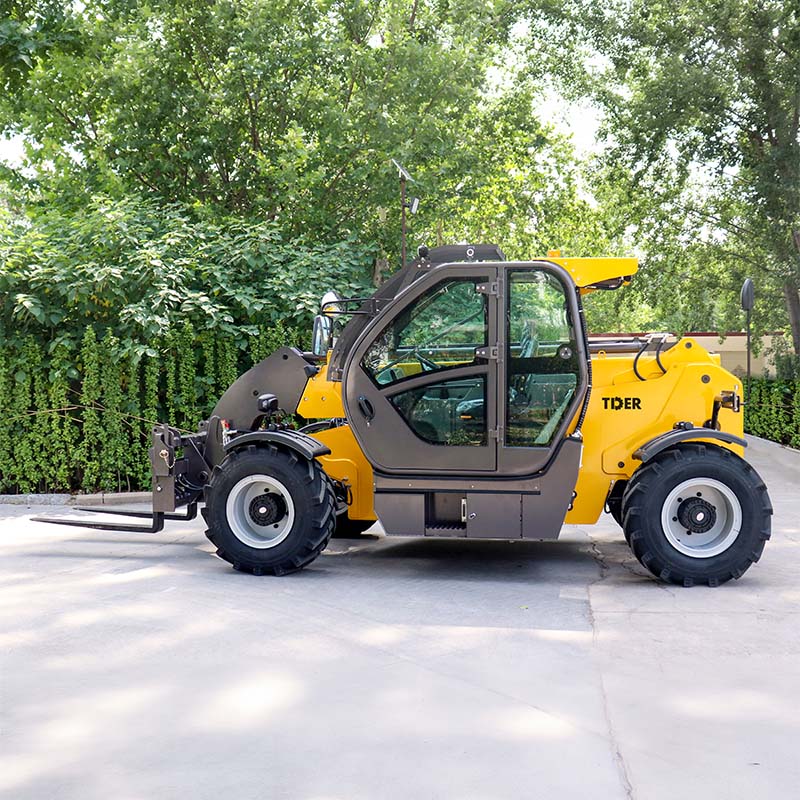

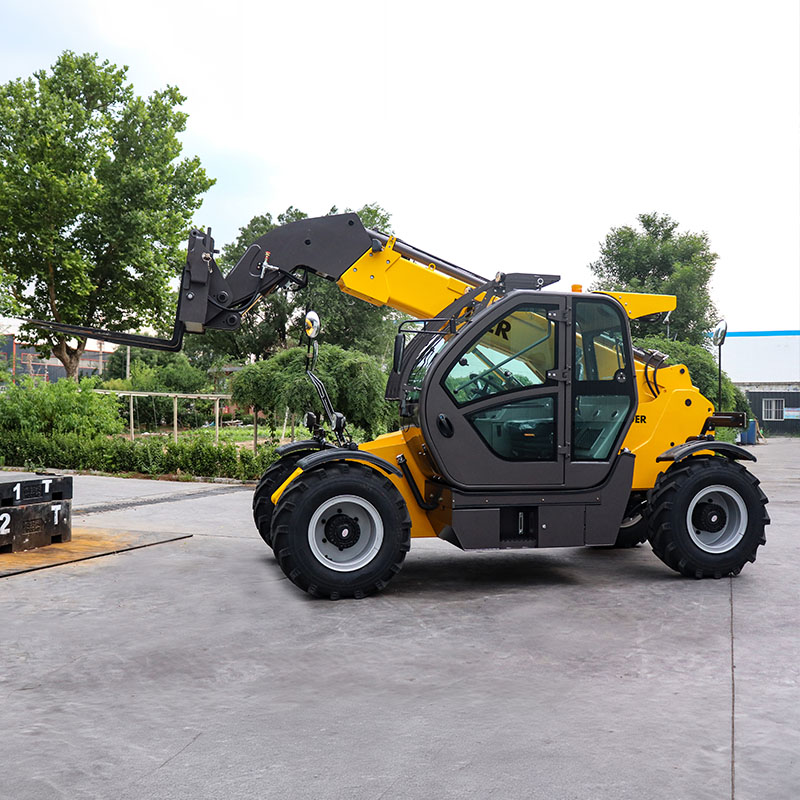

Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
FAQs
Related Products
-
50HP Crawler Tractor For Dryland Agriculture- Engine Power:
50 hp
- Operating Weight:
1600 kg
- Travel Speed:
20 km/h
- Engine Power:
-
2.5 Ton Compact Telehandler with Two Drive Options- Maximum Capacity:
2500 kg
- Maximum Lift Height:
6000 mm
- Maximum Outreach:
3000 mm
- Maximum Capacity:
-
2.5 Ton Telehandler for All-Terrain Material Handling- Maximum Capacity:
2500 kg
- Maximum Lift Height:
5900 mm
- Maximum Outreach:
3300 mm
- Maximum Capacity:
-

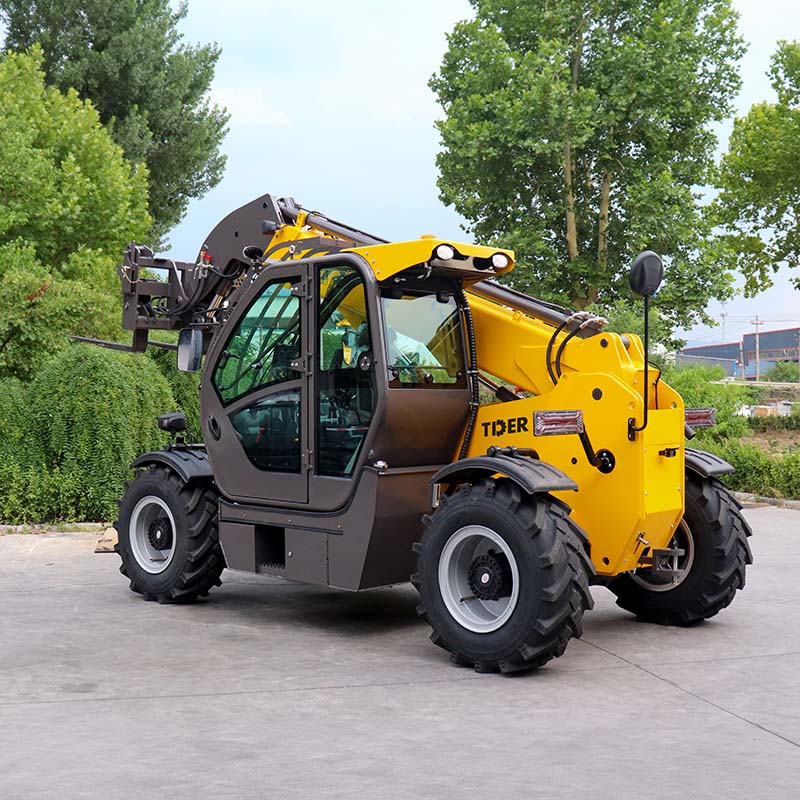

3 Ton Telehandler With Smart Handling- Maximum Capacity:
