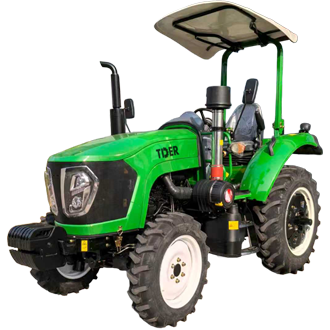

Name: 90HP Field Tractor with 12F+12R Transmission
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Built Around a Durable Working Platform

The TB904 combines an upgraded heavy-duty chassis with a 90HP power platform to provide the structural strength needed for intensive agricultural operations. Its reinforced construction is designed for demanding field workloads where durability and dependable performance are important over long periods of use.

Strong Traction When the Work Gets Heavy

Selectable four-wheel drive, large agricultural tires, and substantial lifting capability give the TB904 the traction and stability required for heavier pulling and field preparation. The configuration is well suited to operations where consistent ground contact is more important than simply maximizing travel speed.

Synchronized Shifting Reduces Operator Effort

The 12F+12R transmission works with a dual-action clutch and synchronized shifting system to simplify gear changes during field work. The closely spaced working speeds allow operators to select a suitable pace for different operations without constantly compromising between power delivery and working efficiency.

Hydraulic Capacity for More Demanding Equipment

The TB904 provides two hydraulic circuits with 2-in/2-out connections, together with a Category II three-point hitch and strong lifting system. This configuration gives operators greater freedom when selecting hydraulic and mounted equipment for cultivation, material handling, and other agricultural tasks.

Operator Protection for Changing Conditions

The basic open-station layout can be configured with a rollover protection frame or sun canopy, while an optional air-conditioned cab provides a more controlled operating environment. These options allow the TB904 to be matched to longer working periods and different weather conditions.

Specifications

Tractor Power	HP	90
Chassis Type	—	TB Chassis
Drive Type	—	4WD
Overall Length	mm	4050
Overall Width	mm	1830
Overall Height	mm	2660
Wheel Tread	mm	1300–1400
Wheelbase	mm	2110
Minimum Ground Clearance	mm	390
Minimum Service Weight	kg	3020
Engine Brand	—	Yangdong
Engine Origin	—	China
Emission Standard	—	Stage II
Engine Type	—	Inline, Direct Injection, Water-Cooled
Intake Method	—	Turbocharged
Engine Power	kW / rpm	66.15 / 2400
Fuel Type	—	Diesel
Fuel Tank Capacity	L	70
Suspension Type	—	3-Point Linkage, Category II
Hydraulic Output	Groups	2 Groups; 3 Groups Optional
Maximum Traction Force	kN	≥22.1
Maximum Lifting Capacity	kN	≥16
Rear PTO Speed	rpm	540 / 1000
PTO Spline	Spline	6
Steering System	—	Hydraulic Steering
Transmission	—	12F + 12R
Clutch Type	—	Dry-Type, Dual-Stage, Synchronized Shift
Brake Type	—	Oil-Immersed
Tire Size	—	Same as 80 HP
Forward Travel Speed	km/h	2.46–32.73
Reverse Travel Speed	km/h	2.15–28.69
Optional Equipment	—	ROPS, Canopy, Cabin with Air Conditioning, Air Compressor

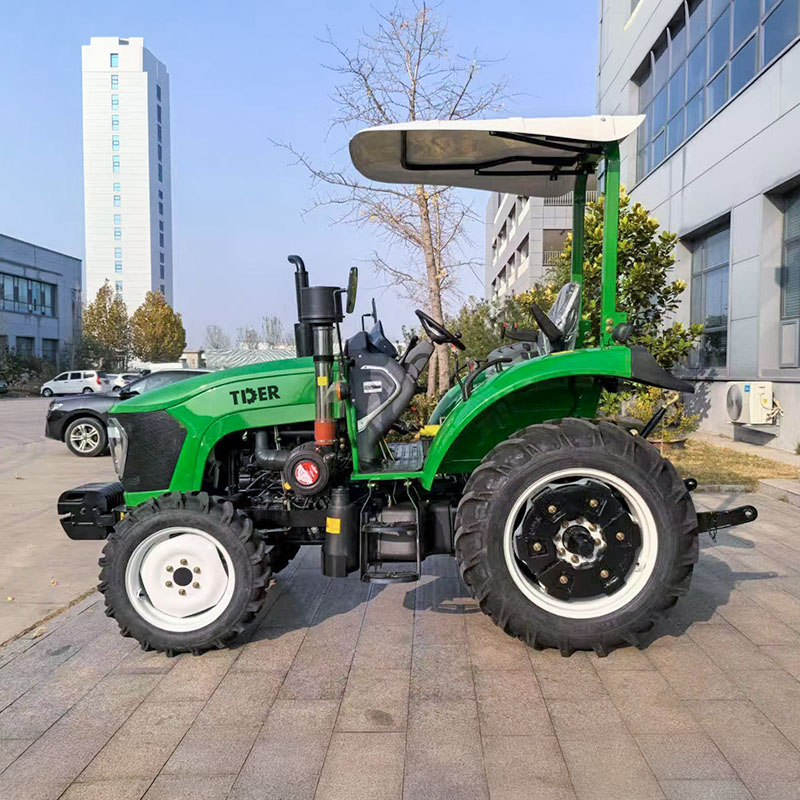

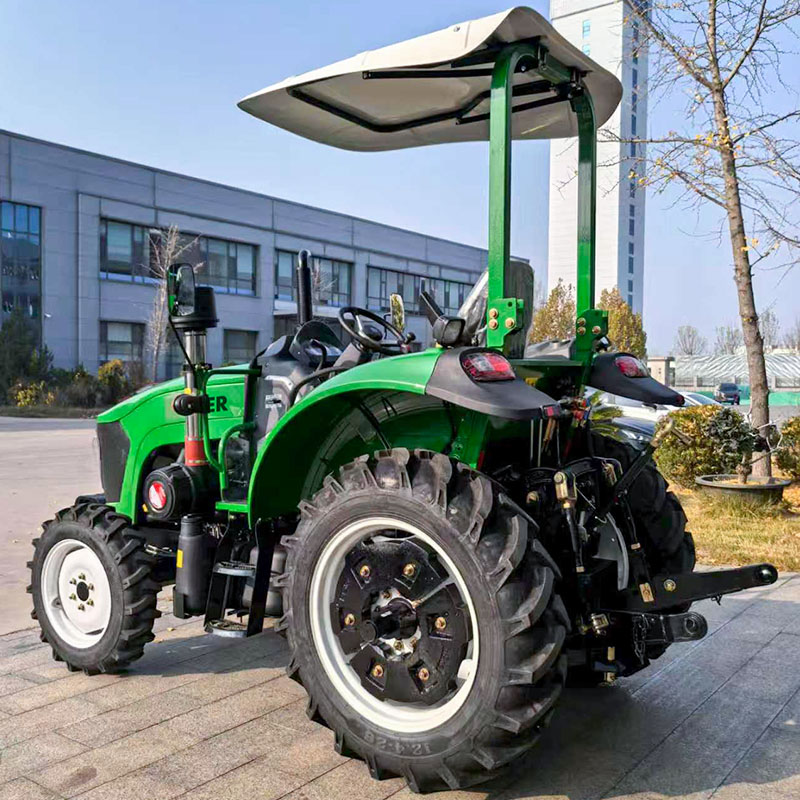

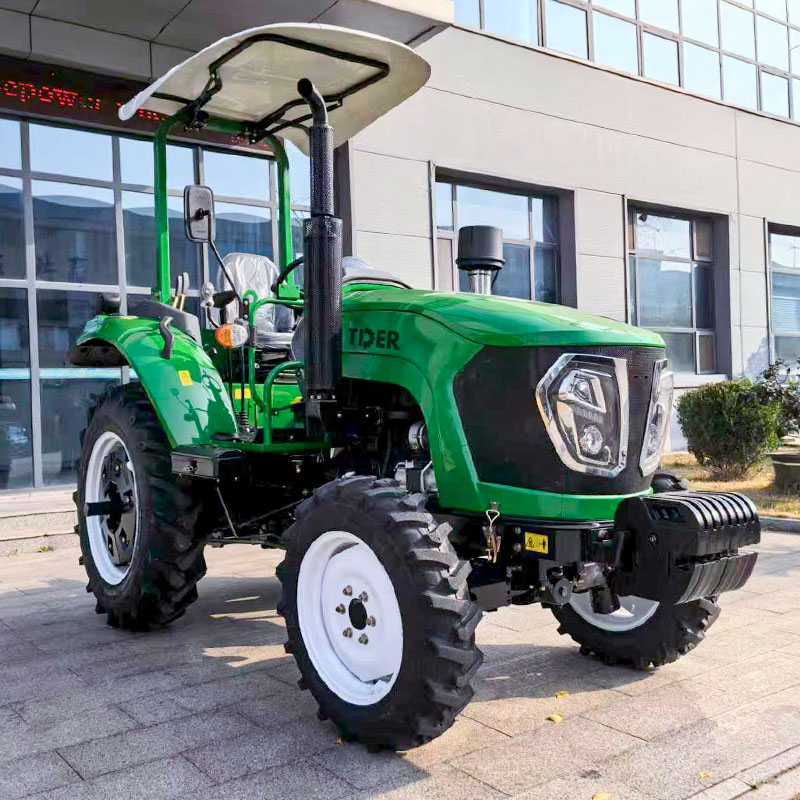

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
