Features

Compact Handling for Small Fields and Diverse Tasks

The TB604 combines a short-body design with full hydraulic steering to provide responsive handling in smaller fields and confined working areas. The flexible steering layout makes frequent turning and repositioning easier, helping operators work efficiently where maneuverability is important.

Strong Pulling Performance with 12F+12R Shuttle Transmission

A high-torque diesel engine with substantial torque reserve provides strong pulling capability for demanding field work. The 12F+12R shuttle transmission offers well-matched working speeds and convenient directional changes, helping maintain productivity across cultivation, transport, and other repeated operations.

Versatile Front Loader Tractor for Multiple Implements

The TB604 provides 540/720 rpm PTO speeds, with 540/1000 rpm available as an option, allowing the tractor to match different agricultural implements. When equipped with a front loader, the TB604 can handle material handling and loading tasks in addition to farming operations. Its three-point linkage and dual hydraulic outlets further expand attachment possibilities, making it suitable for farming, grounds maintenance, landscaping, and other tractor-based applications.

Comfortable Cab Configuration for Extended Working Hours

The TB604 can be equipped with a heated cab, as shown in the available product configuration, providing a more enclosed working environment for demanding weather conditions. A flat floor, suspended pedals, side-mounted controls, full hydraulic steering, and a cushioned armrest seat further improve operator comfort.

Specifications

Tractor Dimensions	Drive Type	—	4×4
	Rated Power	kW	44.1
	Overall Dimensions (L × W × H)	mm	3945 × 1860 × 2730
	Wheelbase	mm	2110
	Minimum Ground Clearance	mm	350
	Minimum Operating Mass	kg	2800
	Front Tread	mm	1400 (1200–1600), Adjustable
	Rear Tread	mm	1400 (1300–1600), Adjustable
Matched Power	Clutch Type	—	Dry-Type, Double-Acting
	Engine	—	4-Cylinder
	Rated Speed	r/min	2300
Working System	Gear / Transmission	—	12F + 12R
	PTO Type	—	Same
	PTO Rated Power	kW	≥37.5
	PTO Speed	r/min	540/720; 540/1000
Hydraulic System	Three-Point Linkage	—	Rear, 3-Point Suspension, CAT II
	Hydraulic Output	—	2-Way Valve
	Hydraulic Adjustment Mode	—	Same
	Maximum Lifting Force at 610 mm Frame Center	kN	≥10.6
Tire System	Standard Tire Size (Front/Rear)	—	8.3-24 / 14.9-30
	Optional Tire I	—	9.5-24 / 16.9-30
	Optional Tire II	—	8.3-20 / 12.4-28
Other Options	Heated Cabin	—	Optional
	ROPS	—	Optional
	ROPS with Sunroof	—	Optional

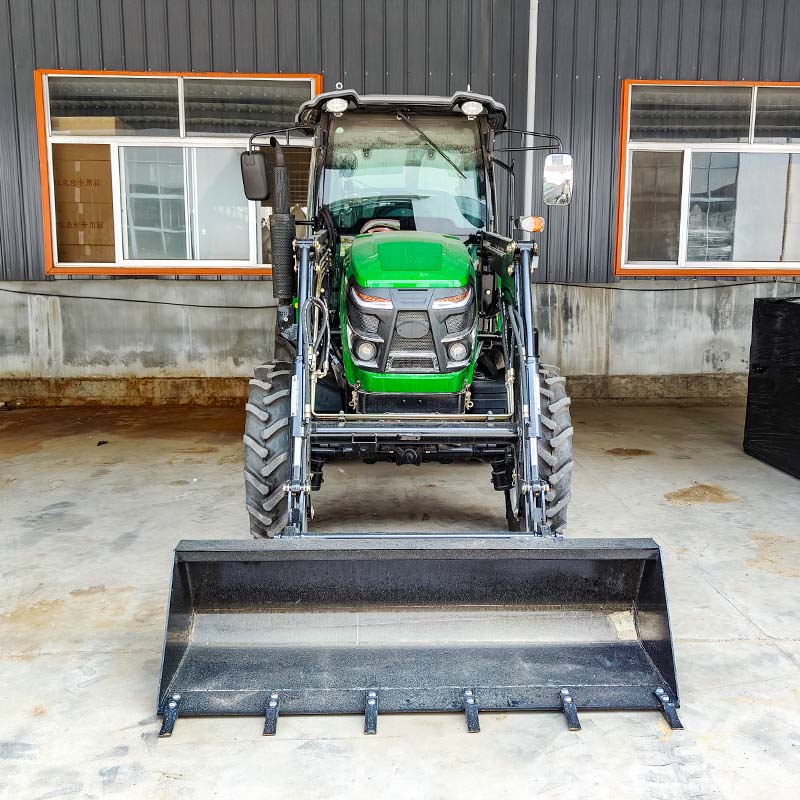

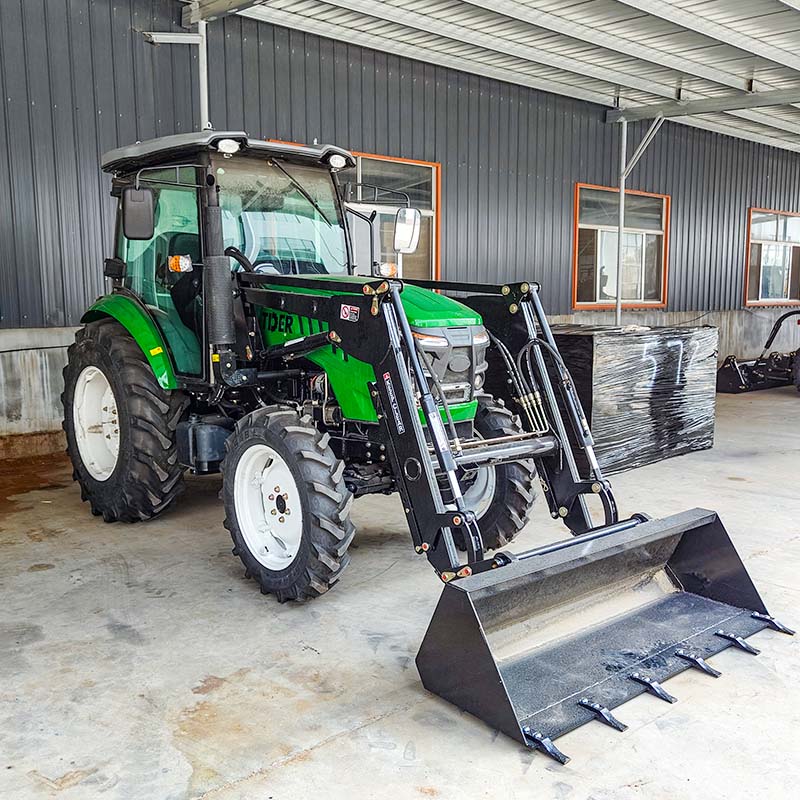

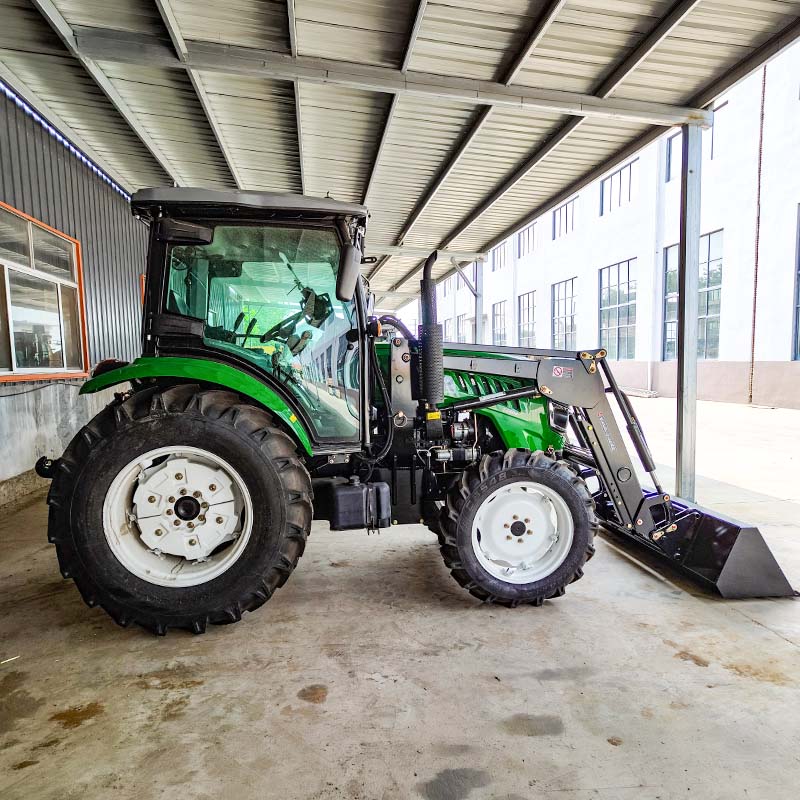

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
