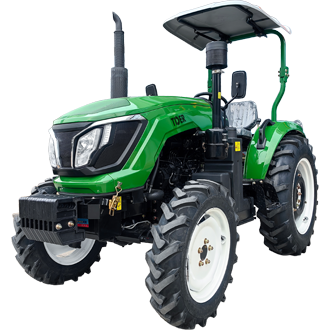

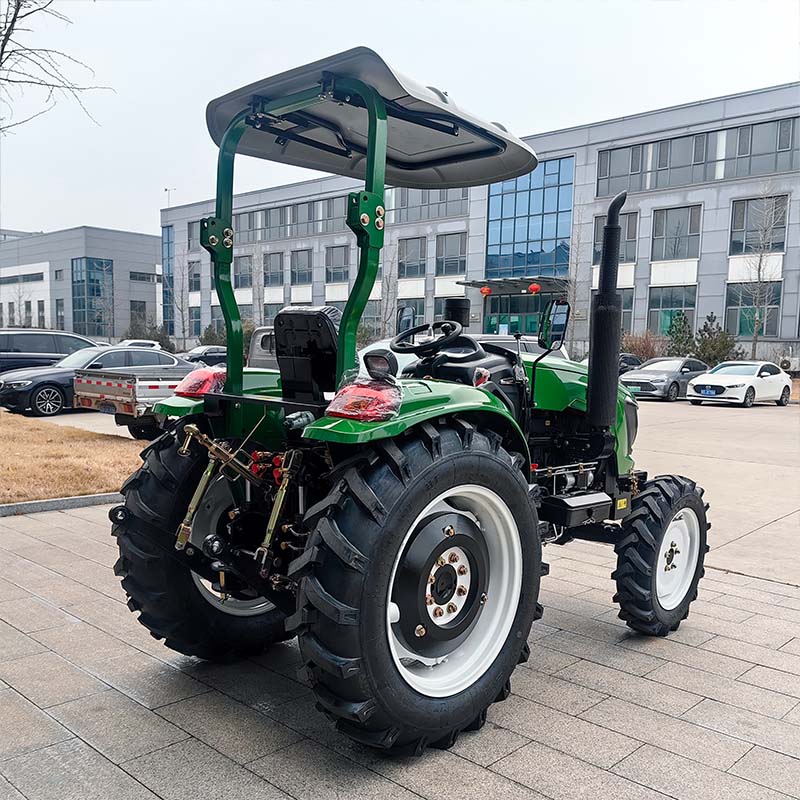

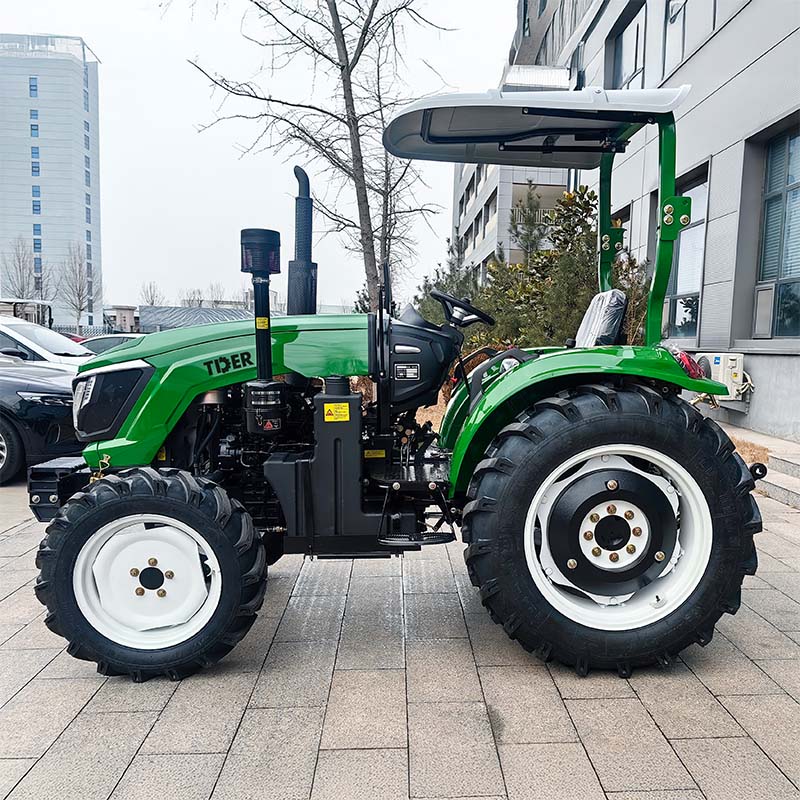

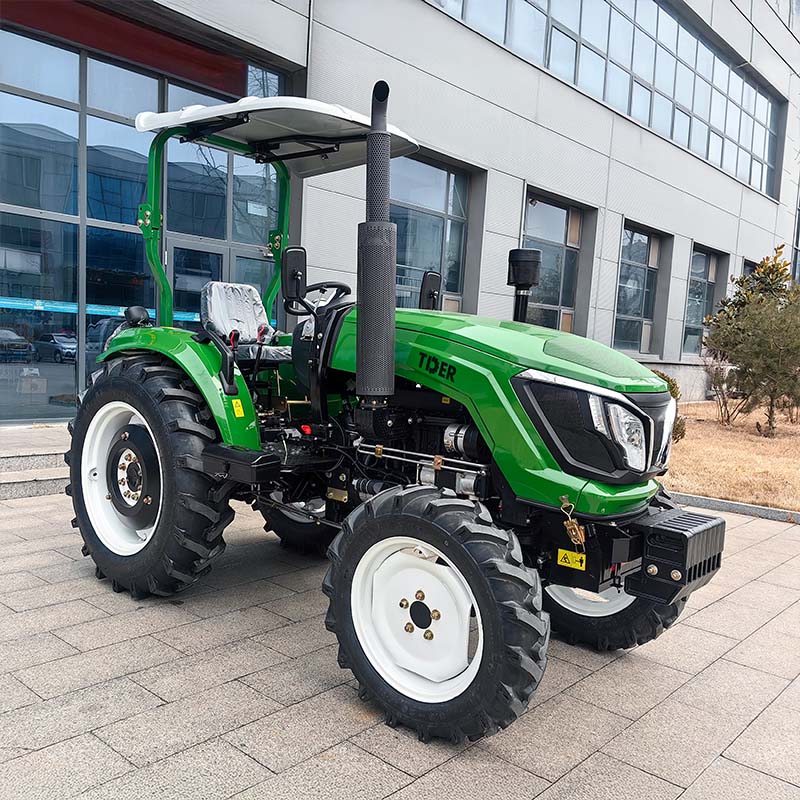

Name: 50HP Tractor for Hilly Terrain Farming
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Reinforced Chassis Design for Heavy-Duty Agricultural Tasks

The TE504 features an upgraded reinforced chassis structure with enhanced load-bearing capacity and improved overall durability. The strengthened platform provides better support during demanding agricultural operations, making it suitable for heavier workloads and long-term field applications.

High-Clearance Structure with Large Tires for Hilly Terrain

Equipped with larger agricultural tires and optimized ground clearance, the TE504 delivers improved passability in mountainous areas, hillsides, and uneven farmland. The elevated chassis design helps the tractor handle challenging terrain while maintaining stable operation.

Specifications

Tractor Power	hp	50
Drive Type	-	4WD
Chassis Type	-	TE
Overall Dimension (L×W×H)	mm	3340×1450×2050
Wheel Base	mm	1890
Minimum Ground Clearance	mm	Front axle bottom: 298 / Rear axle bottom: 340
Minimum Service Weight	kg	1510
Engine Model	-	Laidong
Engine Type	-	Water-cooled, three-cylinder, inline
Intake Method	-	Natural Aspiration
Rated Power	kW/rpm	36.8/2400
Fuel Type	-	Diesel
Max. Torque	Nm/r/min	92/1800
Gearshift	-	8F+2R / 8F+8R Optional
Clutch	-	Single action clutch / Double action type
Steering System	-	Hydraulic steering
Suspension Type	-	Three-point linkage, CAT I
Hydraulic Output	-	One group / Two groups optional
PTO Speed	rpm	540/720; 540/1000
PTO Spline Number	-	6
Max. Traction Power	kN	≥7
Max. Lifting Force	kN	≥8.7
Standard Tire Size	-	6.5-16 / 11.2-24
Optional Tire Size	-	7.5-16 / 11.2-28; 7.5-20 / 12.4-28; 7.5-16 / 13.6-24; 280-70R16 / 360-70R24
Theoretical Speed	km/h	Forward: 1.78-26.93; Reverse: 2.41-11.6
Other Options	-	Flat floor, ROPS, sunroof and cabin

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
