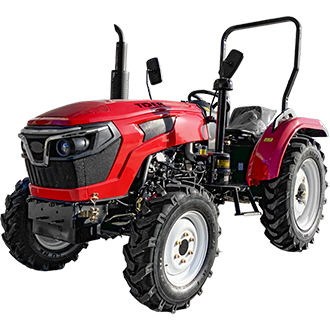

Name: 50HP Mid Size Tractor in the Farm
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Powerful and Economical Performance

The TB504 combines a high-torque diesel engine with a 12F+12R shuttle transmission to deliver strong pulling performance and efficient power utilization. Well-matched gear ratios support productive field operations, while the 150L fuel tank provides an extended operating range for long working cycles and fewer refueling stops.

Agile and Precise Operation

The TB504 features hydraulic steering, a compact body layout, and shuttle shifting for responsive control and precise maneuvering. The independent clutch system and well-positioned controls make gear changes and power take-off engagement easier, helping operators maintain smooth and efficient control throughout field operations.

Superior Operator Comfort

A flat-floor platform, suspended pedals, side-mounted controls, and premium suspension seat create a more spacious and comfortable operating environment. The optional air-conditioned cab adds vibration and noise isolation, effective sealing against dust and mud, and wide-angle visibility, supporting comfortable operation in different weather conditions and during extended working hours.

Compact Size with Multi-Implement Versatility

The TB504 combines a compact body with two hydraulic outlets, quick-attach three-point linkage, and selectable 540/720 rpm PTO speeds, with 540/1000 rpm available as an option. This configuration makes the TB504 a versatile tractor in the farm, capable of working with a wide range of agricultural implements while maintaining excellent flexibility in smaller fields and confined working areas

Specifications

Tractor Dimensions	Drive Type	—	4×4
	Rated Power	kW	36.8
	Overall Dimensions (L × W × H)	mm	3945 × 1860 × 2730
	Wheelbase	mm	2110
	Minimum Ground Clearance	mm	350
	Minimum Operating Mass	kg	2680
	Front Tread	mm	1400 (1200–1600), Adjustable
	Rear Tread	mm	1400 (1300–1600), Adjustable
Matched Power	Clutch Type	—	Dry-Type, Double-Acting
	Engine	—	4-Cylinder
	Rated Speed	r/min	2400
Working System	Gear / Transmission	—	12F + 12R
	PTO Type	—	8-Spline, Ø38, I-Type; 6-Spline Optional
	PTO Rated Power	kW	≥31.3
	PTO Speed	r/min	540/720; 540/1000
Hydraulic System	Three-Point Linkage	—	Rear, 3-Point Suspension, CAT II
	Hydraulic Output	—	2-Way Valve
	Hydraulic Adjustment Mode	—	Forced Hydraulic System, Position Control, Floating Control
	Maximum Lifting Force at 610 mm Frame Center	kN	≥8.9
Tire System	Standard Tire Size (Front/Rear)	—	8.3-24 / 14.9-30
	Optional Tire I	—	9.5-24 / 16.9-30
	Optional Tire II	—	8.3-20 / 12.4-28
Other Options	Heated Cabin	—	Optional
	ROPS	—	Optional
	ROPS with Sunroof	—	Optional

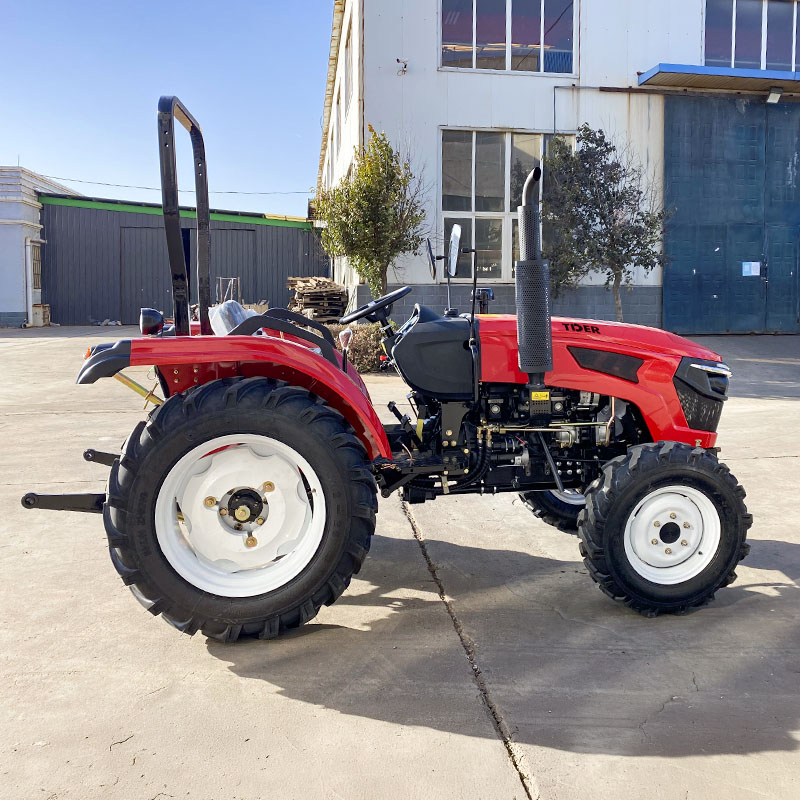

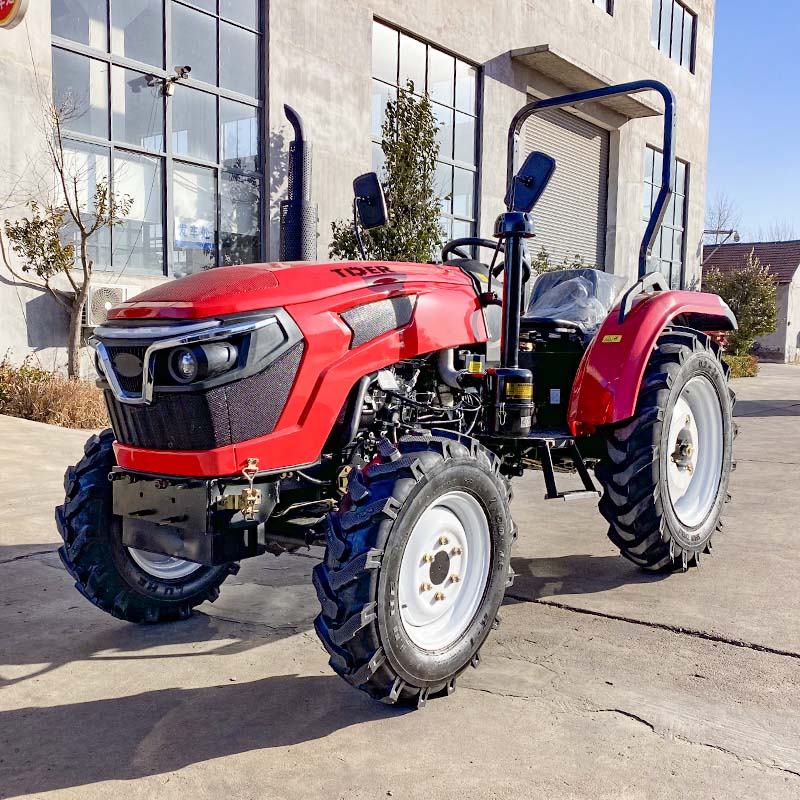

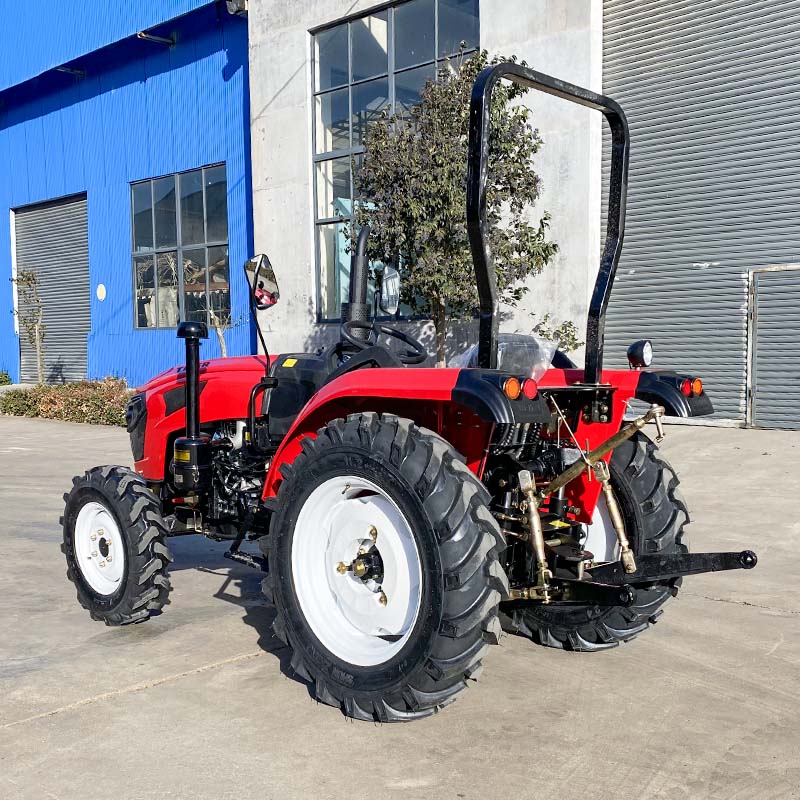

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
