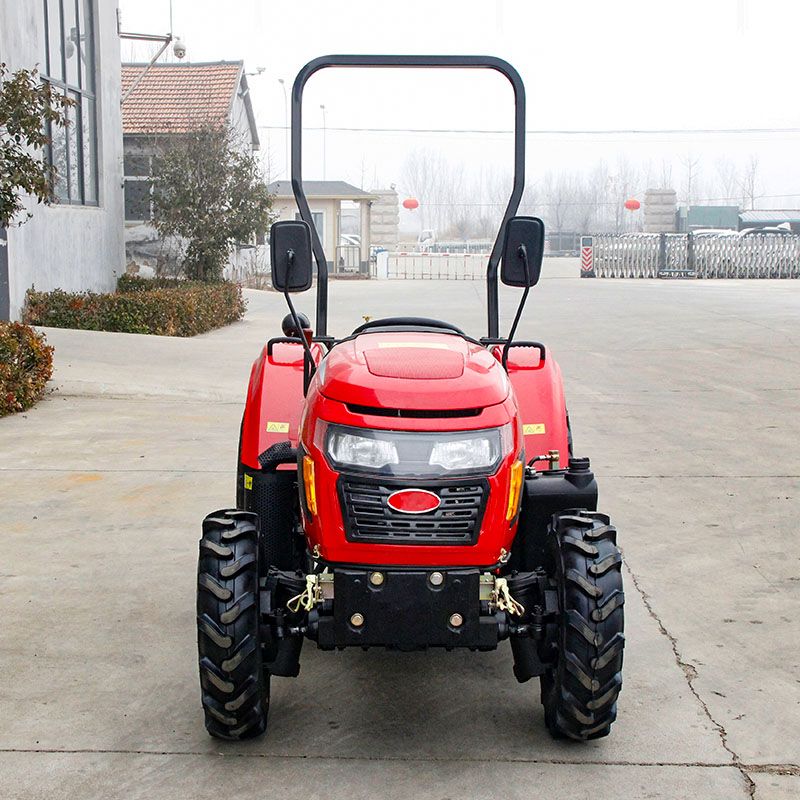

Name: 50HP Greenhouse Tractor for Versatile Agricultural Work
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Proven 4WD Tractor Platform for Everyday Farm Work

Built around a mature TY chassis platform, the TY504 is designed for dependable performance across routine agricultural applications. Its 50HP configuration provides a practical balance for farming, field preparation, material transport, and general-purpose work without unnecessary complexity.

Speed Range Designed Around Real Farming Tasks

The TY504 offers an 8F+2R transmission as standard, with an optional 8F+8R shuttle configuration for applications requiring more frequent speed changes. The available gear combinations make it easier to select an appropriate working speed, helping reduce unnecessary operator effort during repetitive operations.

Straightforward Controls for Less Operator Fatigue

Hydraulic steering, an electronic instrument cluster, and an easy-to-understand control arrangement make the TY504 straightforward to operate. The high-low floor layout and safety frame further contribute to a practical operator environment for extended periods of routine farm work.

One Tractor for Multiple Seasonal Tasks

The TY504 is designed to serve beyond a single farming operation. Its hydraulic output, tractor three point hitch, and selectable PTO speeds allow it to work with different agricultural implements, helping farmers switch between cultivation, mowing, transport, and other seasonal tasks with the same tractor.

Specifications

DIMENSIONS OF TRACTOR	TYPE	/	DRIVE TYPE (4×4)
	POWER	kW	36.8
	DIMENSION (L×W×H)	mm	2800×1240×2085

	WHEEL BASE	mm	1535
	GROUND CLEARANCE	mm	180
	MINIMUM OPERATING MASS	kg	1440
	TREAD	mm	FRONT TREAD:920 REAR TREAD:960(960～1200)ADJUSTABLE



MATCHED POWER	CLUTCH TYPE	/	DRY-TYPE,SINGLE-ACTING
	ENGINE	/	4 CYLINDER
	RATED SPEED	r/min	2400
WORKING PART	GEAR	/	8F+2R
	PTO TYPE	/	6 SPLINE, Φ35, ⅠTYPE(OPTION: 8 SPLINE)

	PTO RATED POWER	kW	≥31.3
	PTO SPEED	r/min	540/720
HYDRAULIC SYSTEM	THREE POINT LINKAGE	/	REAR, THREE-POINT SUSPENSION, CAT1

	HYDRAULIC OUTPUT	/	1-GROUP VALVE（OPTIONAL 2-GROUP VALVE）

	HYDRAULIC ADJUSTMENT MODE	/	FORCED HYDRAULIC SYSTEM, POSITION CONTROL, FLOATING CONTROL

	MAX.LIFTING FORCE AT FRAME CENTER	kN	≥8.9
TYRE TYPE	STANDARD TYRE SIZE (FRONT/ REAR)	/	6.00-12/9.5-16

	OPTIONAL TYRE (Ⅰ)		6.50-12/13.6-16
