40HP Tractor
TE404
Features

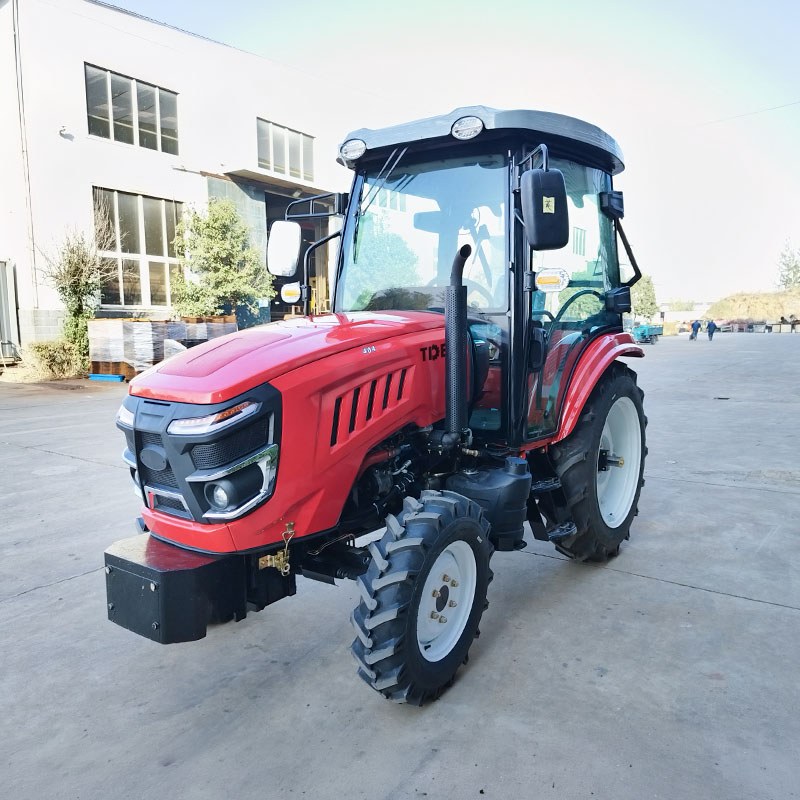

Mid-Size Tractor Platform for Versatile Agricultural Operations
Designed as a practical 40HP mid-size tractor, the TE404 provides a balanced combination of power, maneuverability, and operating flexibility for various agricultural tasks. The optimized tractor structure offers reliable performance for field cultivation, transportation, and daily farm operations.

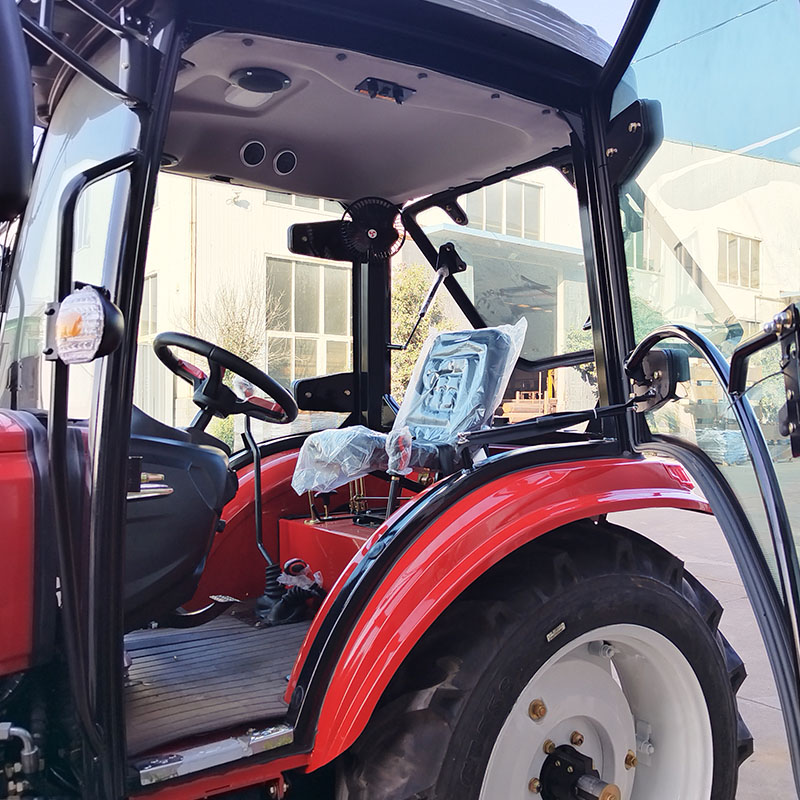

Operator-Oriented Design with Improved Visibility and Comfort
The TE404 features a refined exterior layout with optional flat-floor configuration, creating a more spacious operating environment and improving forward visibility. The optimized operator area helps drivers monitor working conditions more easily and perform daily operations with greater comfort.
Dual Tire Options for Land and Paddy Field Applications
The TE404 supports both standard agricultural tread tires and paddy field tires, allowing operators to adapt the tractor configuration according to different working environments. The flexible tire selection improves traction and mobility across dry farmland, wet fields, and challenging terrain conditions.
Reinforced Agricultural Structure for Stable Working Performance
With a 1.2m wheel track, front and rear counterweight configuration, and strong lifting capability, the TE404 provides stable operation during field work and transportation tasks. The durable chassis structure helps maintain balance under different agricultural working conditions.
Specifications
| Type | - | Four-wheel drive (4×4) |
| Rated Power | kW | 29.4 |
| Overall Dimension (L×W×H) | mm | 3630×1550×2370 |
| Wheel Base | mm | 1860 |
| Minimum Ground Clearance | mm | 355 |
| Minimum Operating Mass | kg | 1780 |
| Tread | mm | Front: 1200 (1000–1500) adjustable; Rear: 1200 (1000–1500) adjustable |
| Clutch Type | - | Dry-type, single-acting (optional double-acting) |
| Engine | - | China Emission II, 4-cylinder diesel engine |
| Rated Speed | r/min | 2300 |
| Gear | - | TE 8F+2R (Optional 8F+8R) |
| PTO Type | - | 6 splines, Φ35, Type I |
| PTO Rated Power | kW | ≥25.0 |
| PTO Speed | r/min | 540/720 |

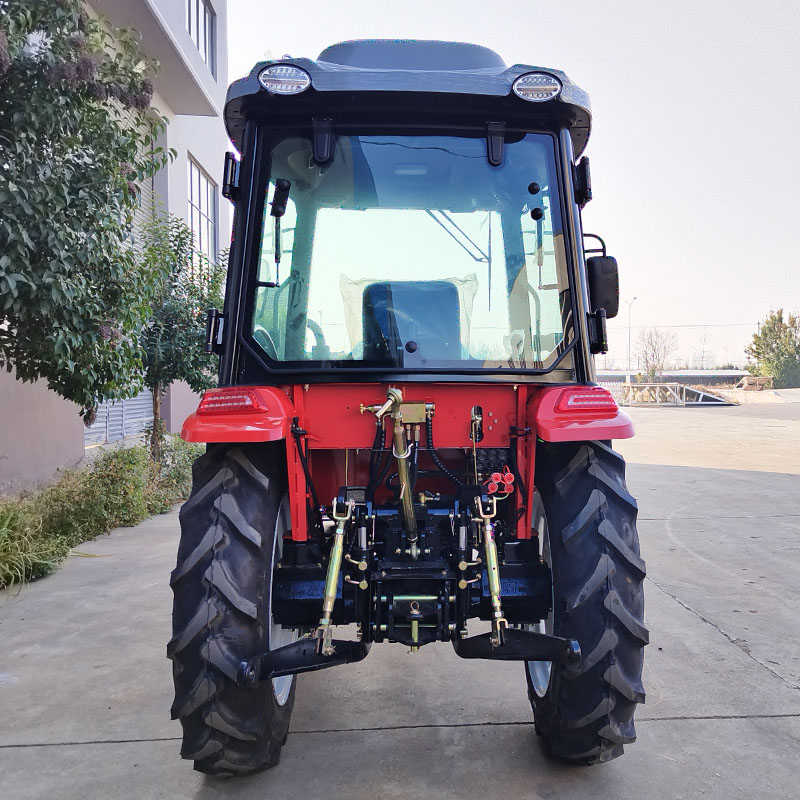

| Three Point Linkage | - | Rear three-point suspension, CAT I |
| Hydraulic Output | - | 1-group hydraulic output (optional 2-group valve) |
| Hydraulic Adjustment Mode | - | Forced hydraulic system, position control and floating control |
| Max. Lifting Force at Frame Center (610mm) | kN | ≥7.1 |
| Standard Tire Size (Front/Rear) | - | 7.50-16 / 11.2-28 |
| Optional Tire (Type I) | - | 7.50-20 / 12.4-28 |
| Optional Tire (Type II) | - | 6.50-16 / 11.2-24 |
| Other Options | - | Cabin, air brake, ROPS, sunroof |
