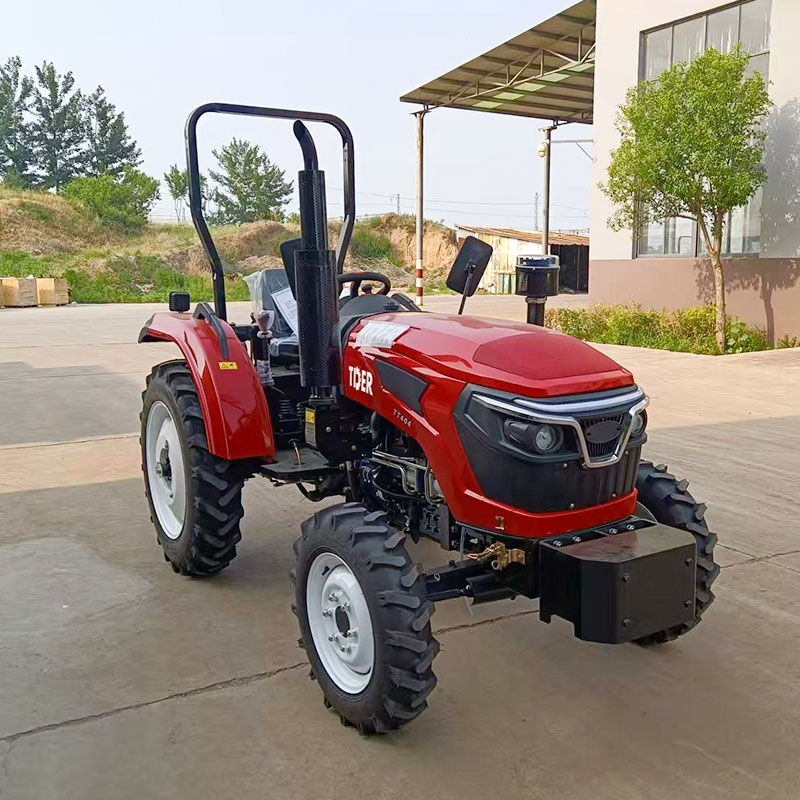

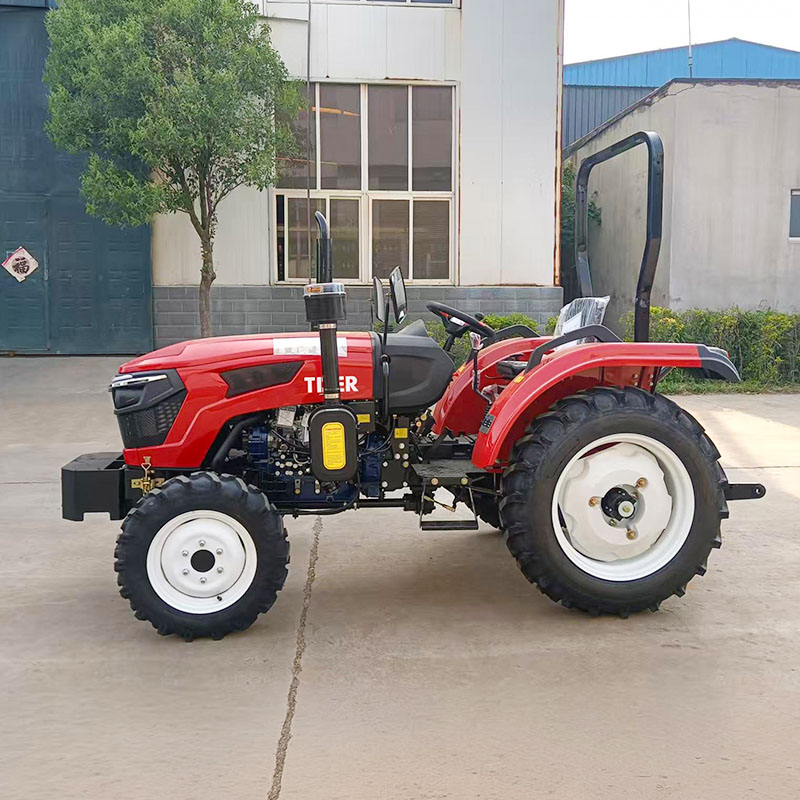

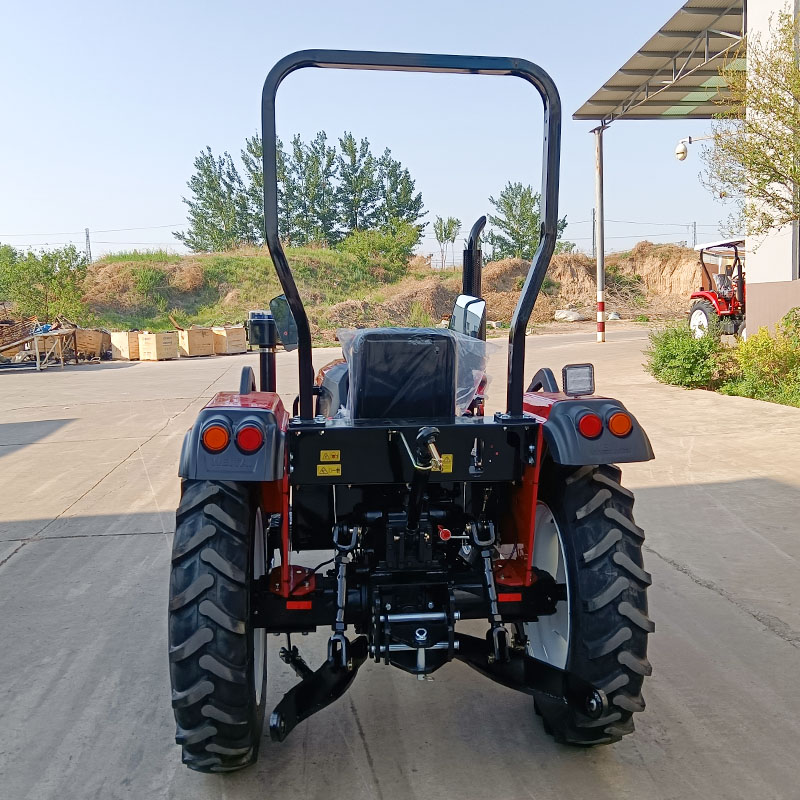

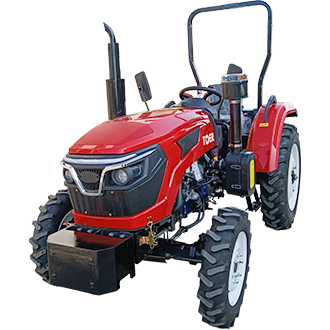

Name: 40HP Agricultural Tractor for General Farm Work
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Proven Chassis Platform with Easy Parts Availability

Built on a mature TY chassis platform developed through years of field application, the TY404 provides stable structural performance and reliable durability. The widely used component design allows easier access to replacement parts from local markets, helping reduce maintenance difficulties during long-term ownership.

Optimized Gear Selection for Efficient Field Productivity

Equipped with an 8F+2R transmission system with optional 8F+8R configuration, the TY404 provides flexible speed matching for various farming requirements. The multiple gear options allow operators to select suitable working speeds for cultivation, transportation, and field management, improving efficiency during repeated operations.

Balanced Design with Safety Structure for Long-Hour Operation

The TY404 combines front and rear counterweights, adjustable track width, and a protective safety frame to improve stability during field operations. The ergonomic operating layout and practical safety configuration help operators complete long working periods with greater confidence and control.

Simple Maintenance Design for Lower Ownership Cost

Designed with a practical mechanical structure, the TY404 simplifies routine inspection and servicing. The durable components and straightforward maintenance layout help reduce downtime and provide a cost-effective solution for farmers requiring dependable daily productivity.

Specifications

Type	-	Four-wheel drive (4×4)
Rated Power	kW	29.4
Overall Dimension (L×W×H)	mm	3590×1550×2370
Wheelbase	mm	1820
Minimum Ground Clearance of Tractor	mm	300
Minimum Operating Weight	kg	1550
Tread	mm	Front: 1200 (1000–1400) adjustable; Rear: 1200 (1000–1400) adjustable
Clutch Type	-	Dry-type, single-acting (optional double-acting)
Engine	-	Four-cylinder diesel engine
Rated Speed	r/min	2400
Gear	-	TY 8F+2R (optional 8F+8R)
PTO Type	-	6 splines, 35, Type 1
PTO Rated Power	kW	≥25.0
PTO Speed	r/min	540/720
Suspension Type	-	Rear three-point linkage, CAT I
Hydraulic Output	-	Simple hydraulic output (optional 1-group/2-group hydraulic output)
Hydraulic Adjustment Mode	-	Built-in hydraulic lift (optional forced hydraulic system)
Max. Lifting Force at Frame Center	kN	≥7.1
Standard Tire Size (Front/Rear)	-	6.00-16 / 9.50-24
Optional Tire (Type I)	-	6.50-16 / 11.2-24
Optional Tire (Type II)	-	7.50-16 / 11.2-28
Optional Tire (Type III)	-	7.50-16 / 12.4-24
Other Options	-	Cab, air brake, safety frame, sunshade

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
