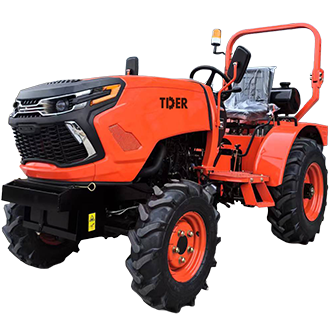

Name: 30HP Low Clearance Small Tractor for Greenhouse Farming
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Low-Clearance Greenhouse Design for Intensive Crop Operations

The TY304 is developed as a greenhouse tractor with a low-profile structure designed for protected agriculture, orchards, and vineyards. Its compact vertical layout allows the tractor to operate efficiently in areas with limited overhead space, narrow planting rows, and dense crop environments where conventional tractors are difficult to access.

Compact Body Layout for Precise Operation in Narrow Rows

Designed for intensive farming environments, the TY304 features a compact chassis layout that improves maneuverability between greenhouse passages, orchard rows, and vineyard areas. The smaller operating footprint helps operators complete cultivation, spraying, mowing, and maintenance tasks with greater flexibility.

Low Ground Impact Performance for Crop-Friendly Farming

The TY304 is designed for agricultural environments where protecting crops and soil conditions is important. Its compact structure and agricultural tire configuration help reduce unnecessary ground disturbance while maintaining stable operation during inter-row cultivation and field maintenance tasks.

Seasonal Farming Versatility with PTO Implement Support

The TY304 supports various seasonal agricultural operations through its six-spline PTO system, Category I three-point hitch, and hydraulic output capability. The tractor can be equipped with different implements for tilling, mowing, spraying, and other greenhouse and orchard tasks, improving utilization throughout the year.

Specifications

Horsepower	hp	30
Chassis Type	-	TY
Drive Type	-	4×4
Overall Dimension (L × W × H to Steering Wheel)	mm	3250 × 1180 × 1340
Wheel Tread	mm	960
Wheelbase	mm	1760
Minimum Ground Clearance	mm	180 (To Bottom Traction Frame)
Minimum Service Weight	kg	1280
Engine Model	-	Laidong 3T30
Engine Type	-	Water-cooled, Three-cylinder, Inline
Rated Power	kW/rpm	22.1/2400
Intake Method	-	NaturalTY Aspirated
Fuel	-	Diesel
Max. Torque	N·m/rpm	104/1650
Gearshift	-	8F+2R / 8F+8R
Clutch	-	Standard Single Action Clutch; Optional Double Action Clutch
Steering System	-	Hydraulic Steering
Suspension Type	-	Three Point Linkage, CAT I
Hydraulic Output	-	One Group or Two Groups Optional
PTO Speed	rpm	540/720
PTO Shaft Spline Number	-	6 Splines
Max. Traction Power	kN	≥7.6
Max. Lifting Force	kN	≥5
Tire Size	-	Standard: 6.0-12 / 9.5-16; Optional: 6.00-14 / 13.6-16; 8.0-12.4 / 14.0-20
Theoretical Speed	km/h	Forward: 2.04–27.72; Reverse: 2.48–11.48

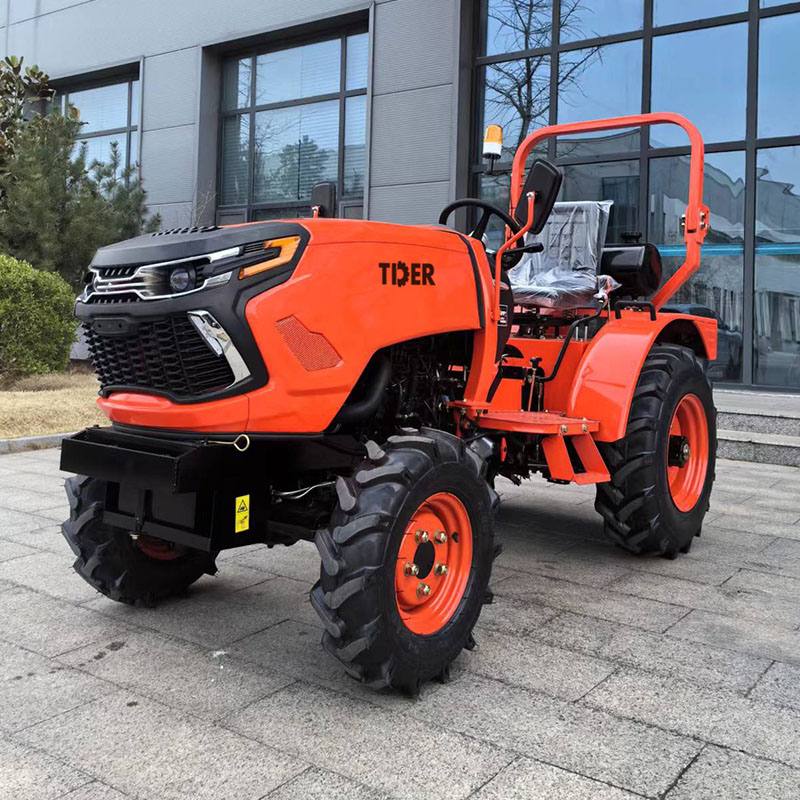

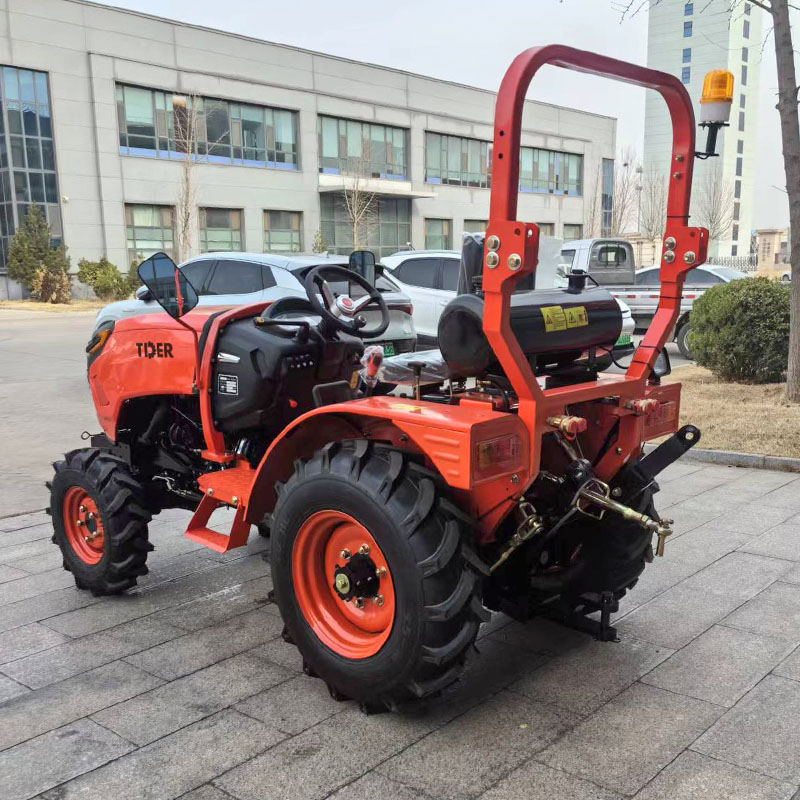

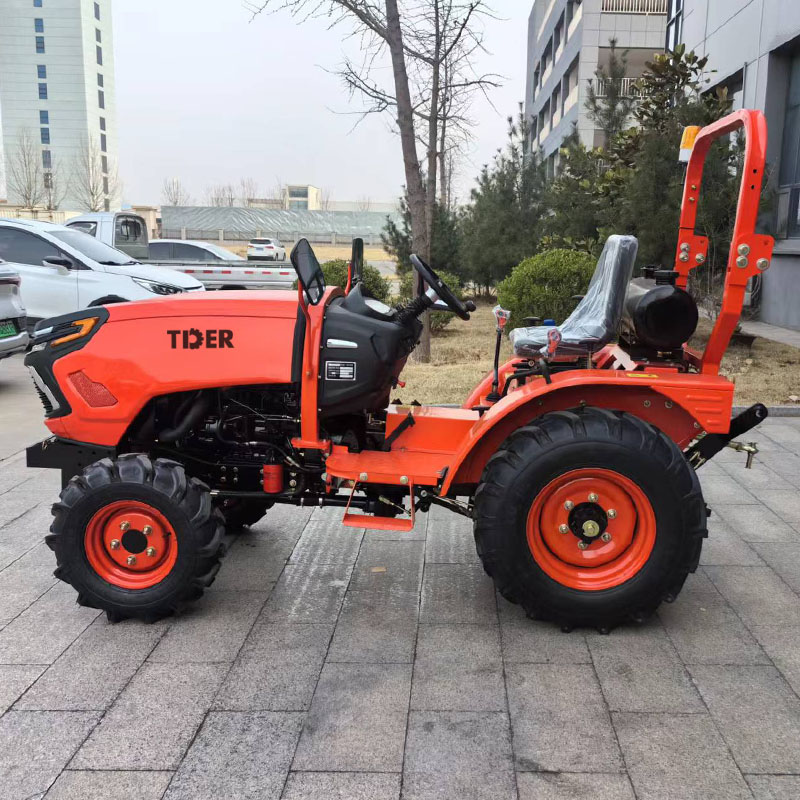

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
