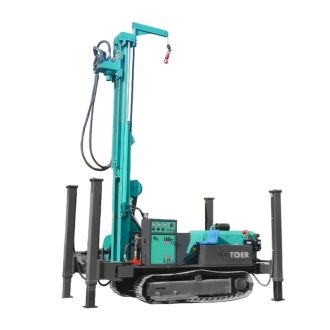

Water Well Drilling Rig
DR300
Features
One Rig for Different Hole Requirements
Different projects call for different borehole sizes. This rig can be configured for multiple hole diameters, allowing contractors to adapt the drilling setup to the required well design or installation task instead of relying on a single fixed hole size.
Efficient Drilling for Repetitive Hole-Making
The drilling system combines controlled rotary power with hydraulic feed to maintain steady penetration. This makes the machine well suited to projects where contractors need to complete multiple holes efficiently, such as water wells, planting holes and utility pole holes.
HStable Rotary Power Across Changing Ground Conditions
The rotary system is designed to maintain useful torque while the drilling conditions change. This helps the operator keep the drilling process controlled when the formation becomes harder or the resistance at the bit increases.
Easy Access to Challenging Jobsites
The machine combines a compact overall footprint with strong climbing capability, making it easier to reach jobsites with uneven ground, slopes or restricted access. This is particularly useful when drilling locations are away from paved roads or established infrastructure.
Specifications
| Operating Weight | t | 7.2 |
| Hole Diameter | mm | Φ140 / Φ254 / Φ325 |
| Drilling Depth | m | 300 |
| One-Time Advance Length | m | 3.3 / 4.8 |
| Penetration Rate | m/h | 15–35 |
| Drill Pipe Diameter | mm | Φ76 / Φ89 / Φ102 |
| Drill Pipe Length | m | 1.5 / 2.0 / 3.0 |
| Rig Lifting Force | t | 18 |
| Rapid Rise Speed | m/min | 22 |
| Rapid Advance Speed | m/min | 40 |
| Travel Speed | km/h | 2.5 |
| Maximum Gradeability | ° | 30 |
| Loading Width | m | 2.7 |
| Overall Dimensions (L × W × H) | mm | 4100 × 2000 × 2500 |
| Engine Power | kW | 85 |
| Engine Brand | — | Yuchai |
| Winch Lifting Force | t | 2 |
| Working Air Pressure | MPa | 1.7–3.0 |
| Air Consumption | m³/min | 17–36 |
| Rotary Torque | N·m | 5700–7500 |
| Rotary Speed | rpm | 40–70 |
| Compatible Hammer | — | Medium- and High-Pressure Series |
| High-Leg Stroke | m | 1.4 |
*NOTE: Specifications and configurations are subject to change due to continuous product upgrades and improvements without prior notice. All information is for reference only, and some features are optional. Please contact our international sales team for confirmation. Final specifications and configurations shall be subject to the official contract signed by both parties.

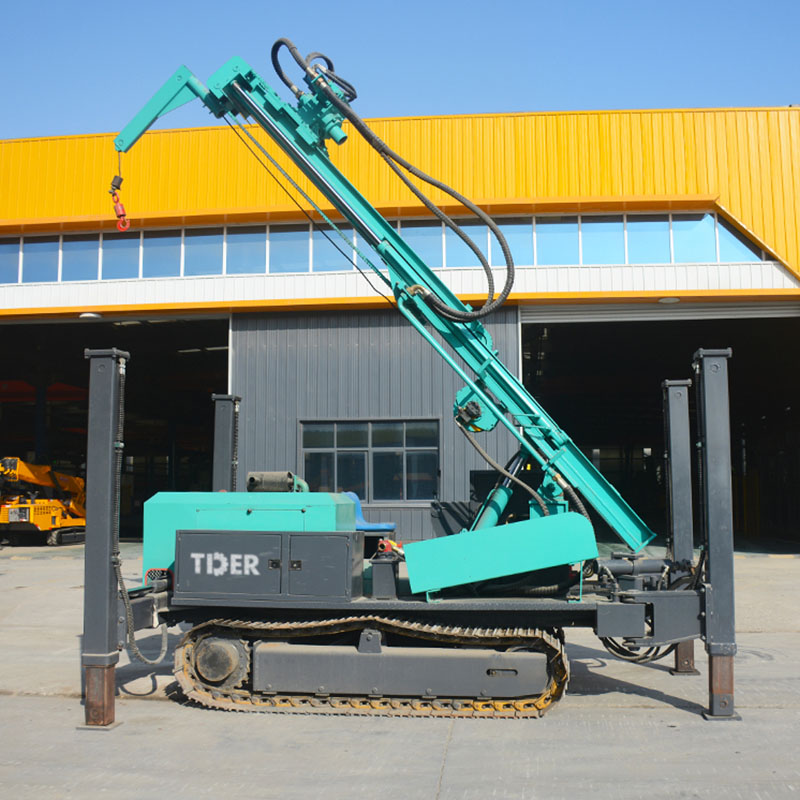

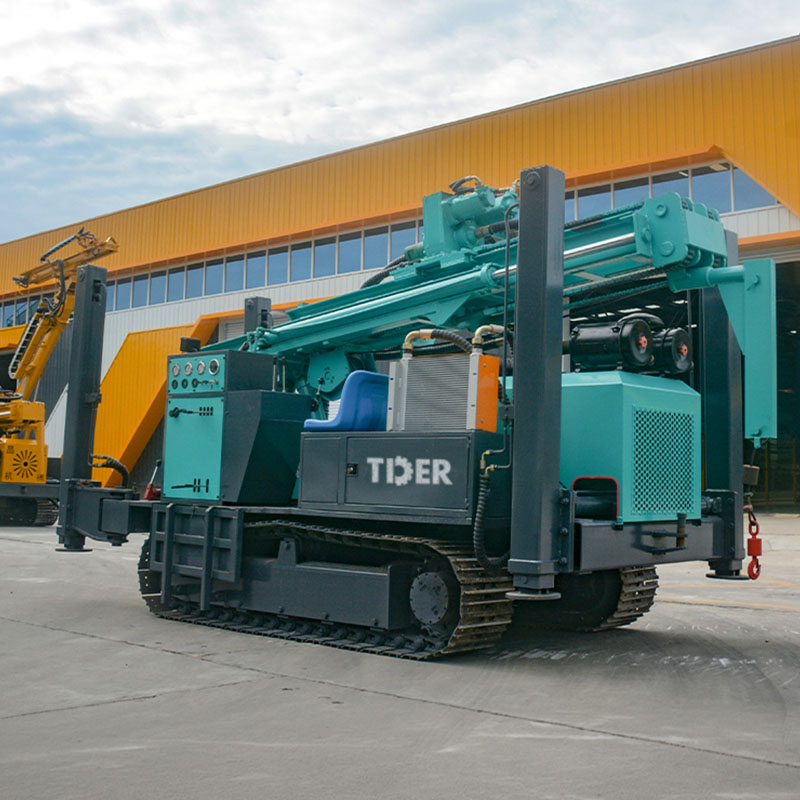

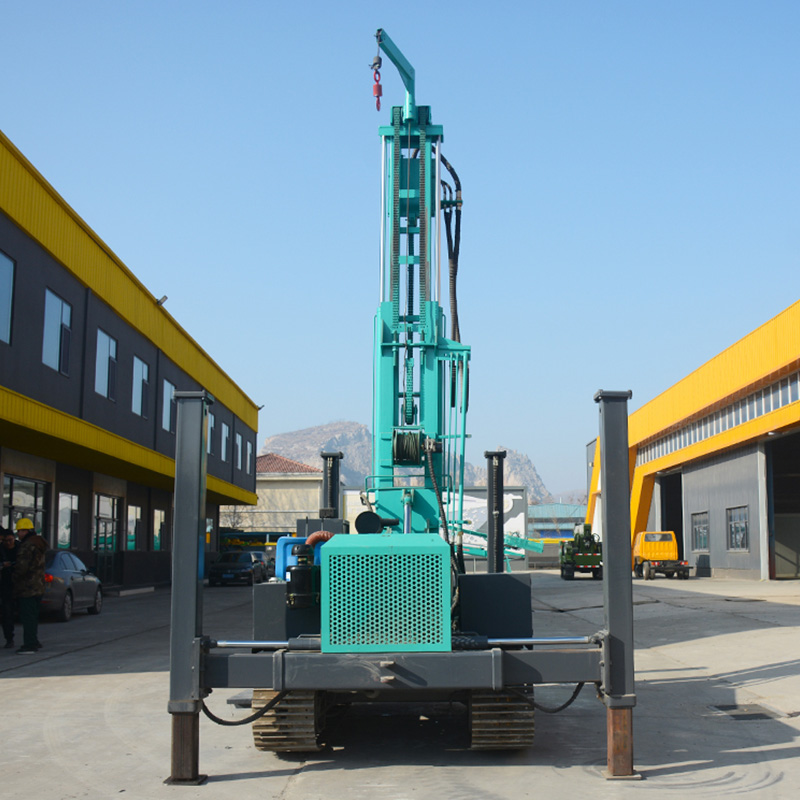

Product Showcase
