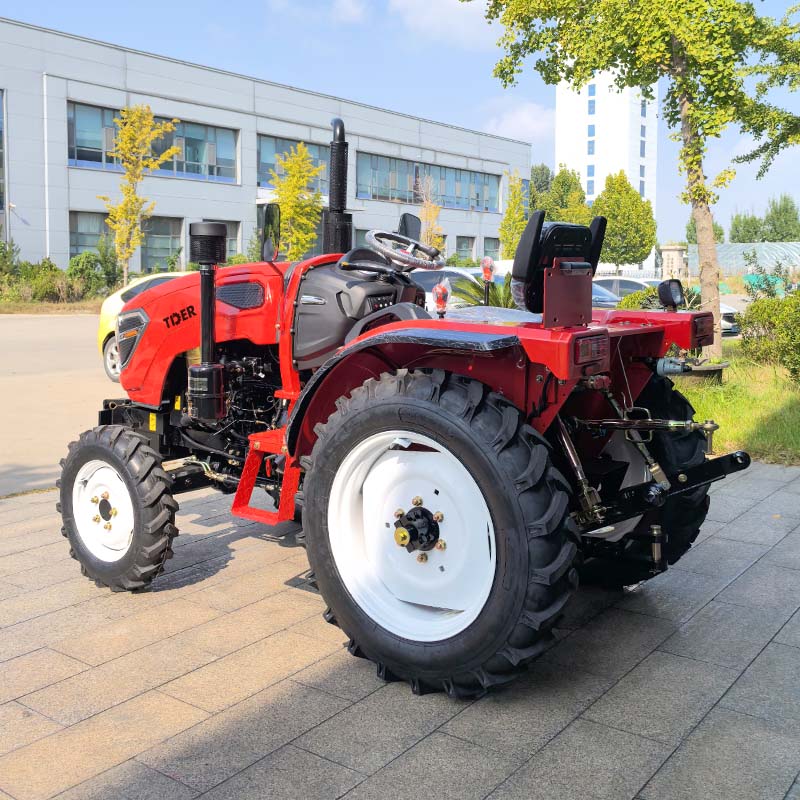

Name: 25HP Sub Compact Tractor with PTO for Farm Implements
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Reliable Diesel Power for Versatile Farm Applications

Powered by a Laidong KM385BT 25HP diesel engine, the TY254 delivers dependable power output and efficient fuel consumption for daily agricultural operations. The compact power platform provides reliable performance for plowing, transportation, cultivation, and general farm maintenance tasks.

Switchable 4WD System and Agricultural Tires for Improved Field Mobility

The TY254 features a selectable four-wheel-drive system that allows operators to switch between two-wheel drive and four-wheel drive according to field conditions. Combined with ChaoYang agricultural tires, the tractor provides reliable traction and stable mobility on farmland, muddy ground, slopes, and uneven terrain.

8+2 Transmission and Hydraulic Control System for Easy Operation

Equipped with an 8-forward and 2-reverse mechanical transmission, the TY254 provides flexible speed selection for different agricultural tasks. The hydraulic steering system and built-in hydraulic lifting structure improve control comfort and make daily operations easier for operators.

PTO and Category I Three-Point Hitch for Multi-Implement Compatibility

The TY254 is equipped with a six-spline PTO system and Category I three-point hitch, supporting various agricultural implements for cultivation, transportation, and field maintenance. The 540/720rpm PTO configuration expands working flexibility and improves equipment utilization.

Practical Operator Interface for Everyday Farm Use

The TY25 features a clear instrument panel integrating fuel level, engine speed, and working hours monitoring. Combined with a tool box and ergonomic control layout, the tractor provides convenient operation and easier daily management for farmers.

Specifications

Tractor Power	hp	25
Drive Type	-	4×4
Chassis Type	-	TY
Minimum Service Weight	kg	1360
Minimum Ground Clearance	mm	340
Diesel Engine	-	Laidong KM385BT, China Emission II
Engine Power	kW	18.4
Wheelbase	mm	1680
Overall Dimensions (L × W × H)	mm	3250 × 1400 × 2000
Suspension Type	-	Three Point Linkage CAT I
Hydraulic Output	-	One Group / Two Groups Optional
PTO Speed	rpm	540/1000
PTO Spline Number	-	6
Clutch	-	Single Stage Clutch / Double Stage Clutch
Steering Type	-	Hydraulic Steering
Gearshift	-	8F+2R / 8F+8R
Theoretical Speed	km/h	Forward: 2.06–31.30 / Reverse: 2.71–12.52
Tire Size	-	6.0-16 / 9.5-24; 6.5-16 / 11.2-24; 7.5-16 / 11.2-28; 7.5-20 / 12.4-28; 7.5-16 / 13.6-24

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
