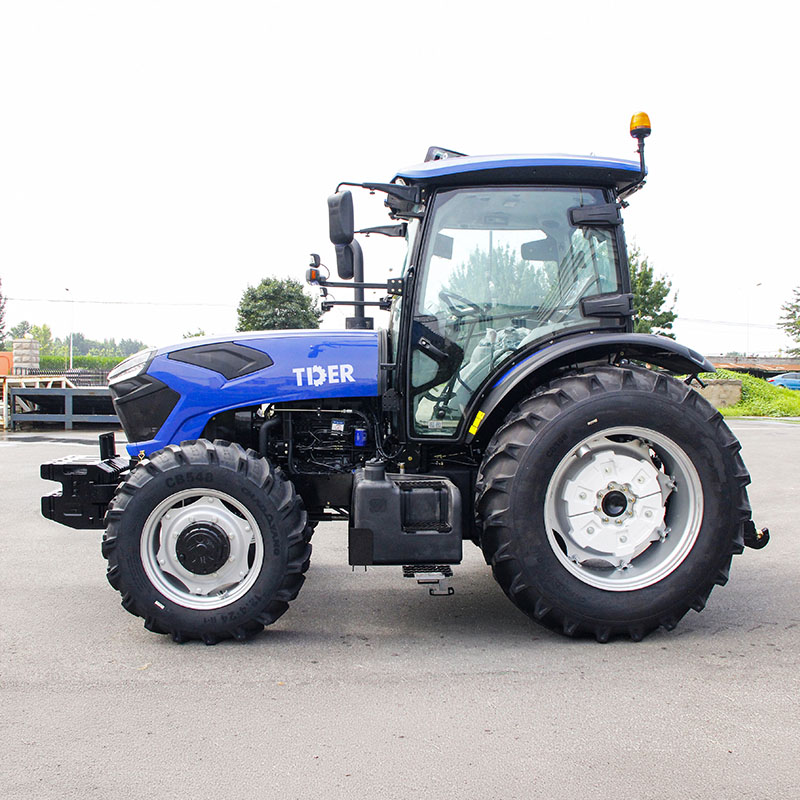

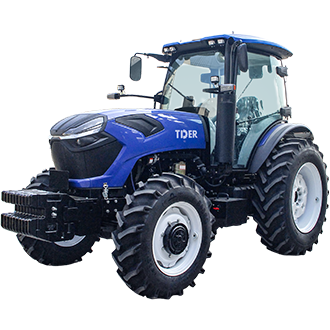

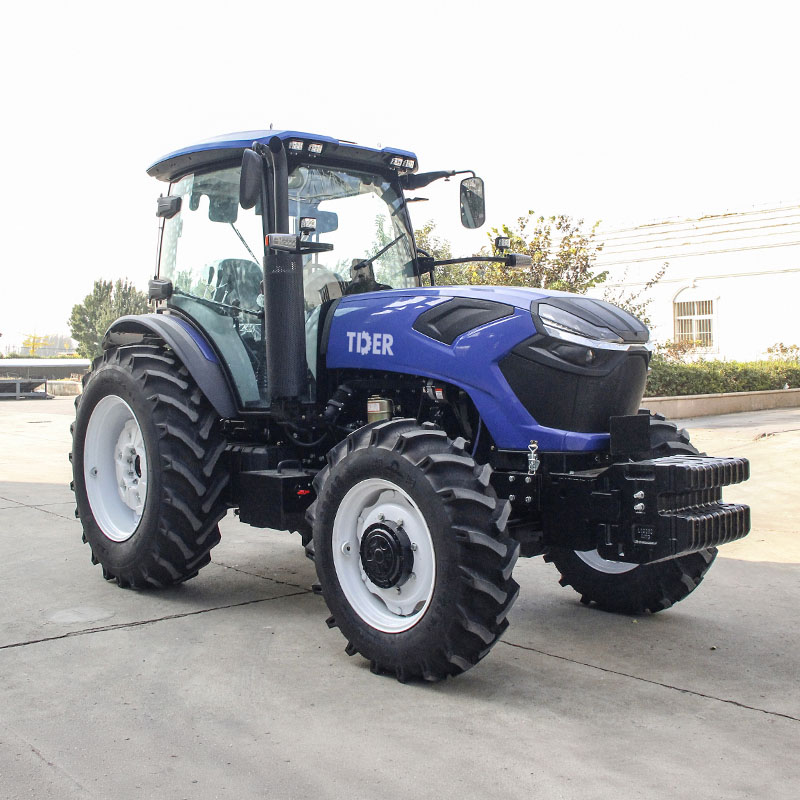

120HP Tractor
TD1204
Features
High-Lift Capacity for Larger Mounted Equipment
The TD1204 is equipped with a high-capacity hydraulic lifting system and Category II three-point linkage, providing the support required for larger mounted implements. Multiple hydraulic control modes allow the operator to adapt implement response to changing soil conditions.
Independent Hydraulic Circuit for Consistent Steering
The hydraulic steering system uses an independent oil circuit, helping maintain reliable steering performance while hydraulic power is also being used for agricultural implements. This provides smoother control during demanding field operations.
Six-Cylinder Power for Sustained Pulling
The Dongfanghong LR6B5 six-cylinder diesel engine gives the TD1204 a power platform suited to continuous pulling and heavier field loads. Its 120HP output provides additional reserve when working with larger implements or under higher soil resistance.
Wide Transmission Range for Heavy Field Work
The 24F+8R transmission and creeper gear provide both conventional working speeds and controlled low-speed operation. This allows the tractor to adapt its movement to different implement loads and soil conditions.
Specifications
| Drive Type | / | 4-Wheel Drive (4×4) |
| Rated Power | kW | 88.2 |
| Length × Width × Height (Cabin) | mm | 4880 × 2100 × 3050 |
| Length × Width × Height (ROPS) | mm | 4880 × 2100 × 2930 |
| Wheel Base | mm | 2510 |
| Minimum Ground Clearance (Front Axle Drain Bolt) | mm | 410 |
| Minimum Operating Mass (Cabin) | kg | 4600 (Including fuel, coolant and operator, excluding counterweight) |
| Minimum Operating Mass (ROPS) | kg | 4350 (Including fuel, coolant and operator, excluding counterweight) |
| Front Tread | mm | 1620 (1620–1820), Adjustable |
| Rear Tread | mm | 1620 (1620–1820), Adjustable |
| Clutch Type | / | Dry-Type, Double-Acting |
| Engine Model | / | YTO 6-Cylinder Diesel Engine (National II Emission Standard) |
| Rated Speed | r/min | 2200 |
| Gear Range | / | 24 Forward + 8 Reverse |
| PTO Type | / | 8 Spline, Φ38, Type I (Optional: 6 Spline) |
| PTO Rated Power | kW | ≥75 |
| PTO Speed | r/min | 760/1000 or 760/850 or 540/1000 |

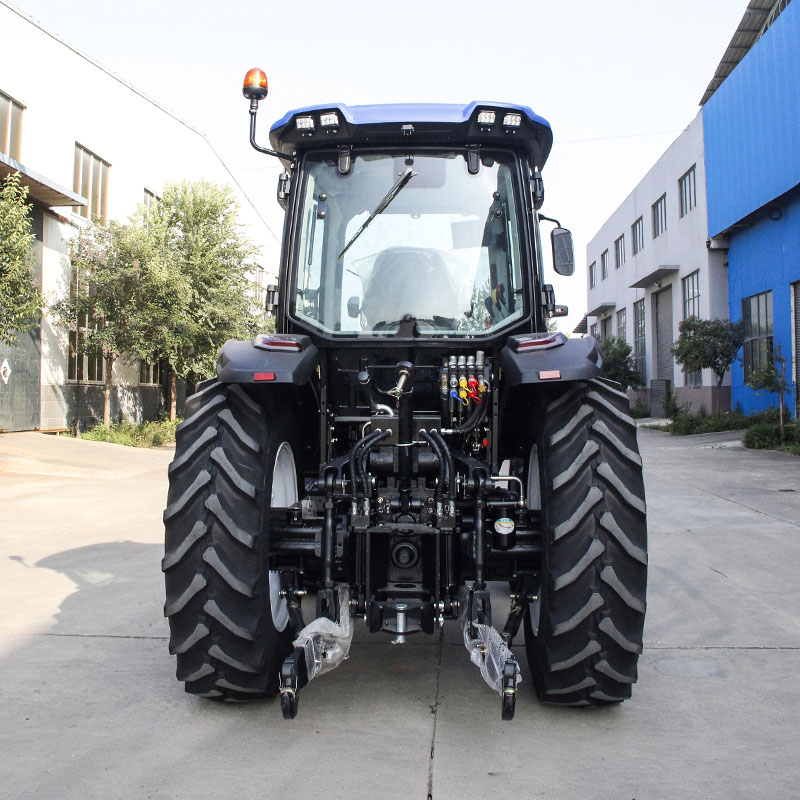

| Three-Point Linkage | / | Rear Mounted, Three-Point Suspension, Category II |
| Hydraulic Output | / | 3-Group Hydraulic Valve |
| Hydraulic Adjustment Mode | / | Forced Hydraulic System, Position Control and Floating Control |
| Maximum Lifting Force at 610mm Frame Center | kN | ≥21.2 |
| Front / Rear Balance Weight | kg | 440 / 90 |
| Standard Tire Size (Front / Rear) | / | 12.4-24 / 16.9-34 |
| Optional Tire Size (Type I) | / | 13.6-24 / 16.9-38 |
| Available Options | / | Cabin, Air Brake, ROPS Safety Frame, Sunroof |
