100HP Tractor
TD1004
Features
Built Around Larger and More Capable Implements
The TD1004 is designed to work with larger agricultural equipment, combining a 100HP power platform with strong three-point lifting capability and four-wheel drive. It provides the traction and implement-handling capacity needed for heavier cultivation and soil preparation tasks.
More Hydraulic Functions When Equipment Requires Them
The tractor can be equipped with 1–3 section multi-way valves for hydraulically operated implements such as folding harrows and reversible plows. This gives users the option to configure the hydraulic system around more complex equipment combinations.
24F+8R Transmission Extends Working Flexibility
The wide selection of forward and reverse speeds allows the operator to match tractor speed more closely to different implements and field conditions. The additional creeper range is useful where very slow and controlled movement is required.
Extended Operation Between Refueling Stops
The large fuel tank supports longer field sessions and reduces interruptions for refueling. For users covering larger working areas, this helps keep more operating time available for productive field work.
Specifications
| Drive Type | / | 4-Wheel Drive (4×4) |
| Rated Power | kW | 74 |
| Length × Width × Height (Cabin) | mm | 4560 × 2100 × 3050 |
| Length × Width × Height (ROPS) | mm | 4560 × 2100 × 2930 |
| Wheel Base | mm | 2200 |
| Minimum Ground Clearance (Front Axle Drain Bolt) | mm | 410 |
| Minimum Operating Mass (Cabin) | kg | 4250 |
| Minimum Operating Mass (ROPS) | kg | 4000 |
| Front Tread | mm | 1620 (1620–1820), Adjustable |
| Rear Tread | mm | 1620 (1620–1820), Adjustable |
| Clutch Type | / | Dry-Type, Double-Acting |
| Engine Model | / | YTO 4-Cylinder Diesel Engine (National II Emission Standard) |
| Rated Speed | r/min | 2300 |
| Gear Range | / | 24 Forward + 8 Reverse |
| PTO Type | / | 8 Spline, Φ38, Type I (Optional: 6 Spline) |
| PTO Rated Power | kW | ≥63 |
| PTO Speed | r/min | 760/1000 or 760/850 or 540/1000 |
| Three-Point Linkage | / | Rear Mounted, Three-Point Suspension, Category II |
| Hydraulic Output | / | 3-Group Hydraulic Valve |
| Hydraulic Adjustment Mode | / | Forced Hydraulic System, Position Control and Floating Control |
| Maximum Lifting Force at 610mm Frame Center | kN | ≥20.2 |
| Front / Rear Balance Weight | kg | 440 / 90 |
| Standard Tire Size (Front / Rear) | / | 12.4-24 / 16.9-34 |
| Optional Tire Size (Type I) | / | 13.6-24 / 16.9-38 |
| Available Options | / | Cabin, Air Brake, ROPS Safety Frame, Sunroof |

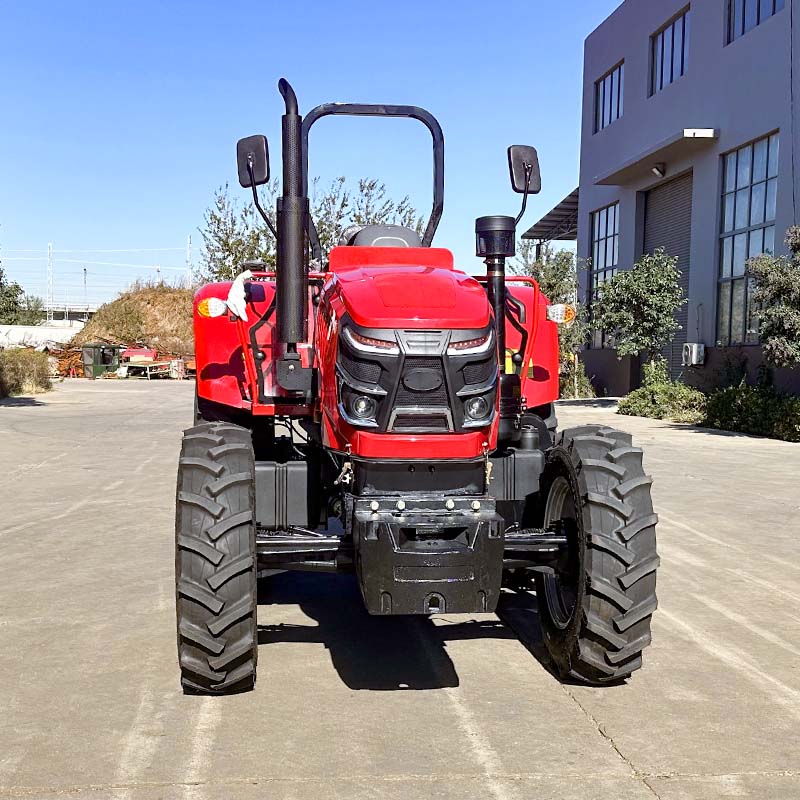

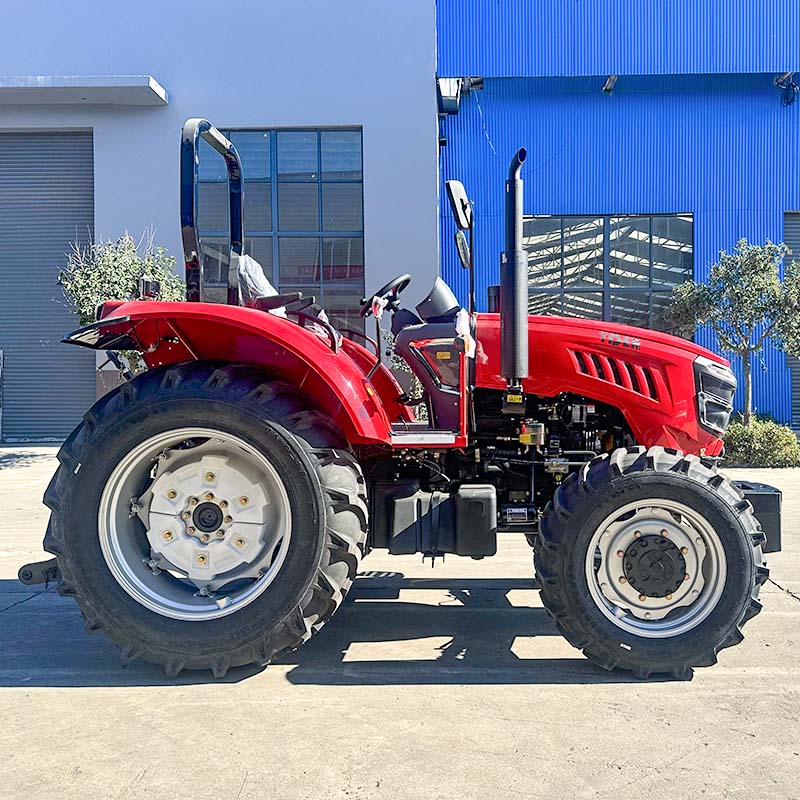

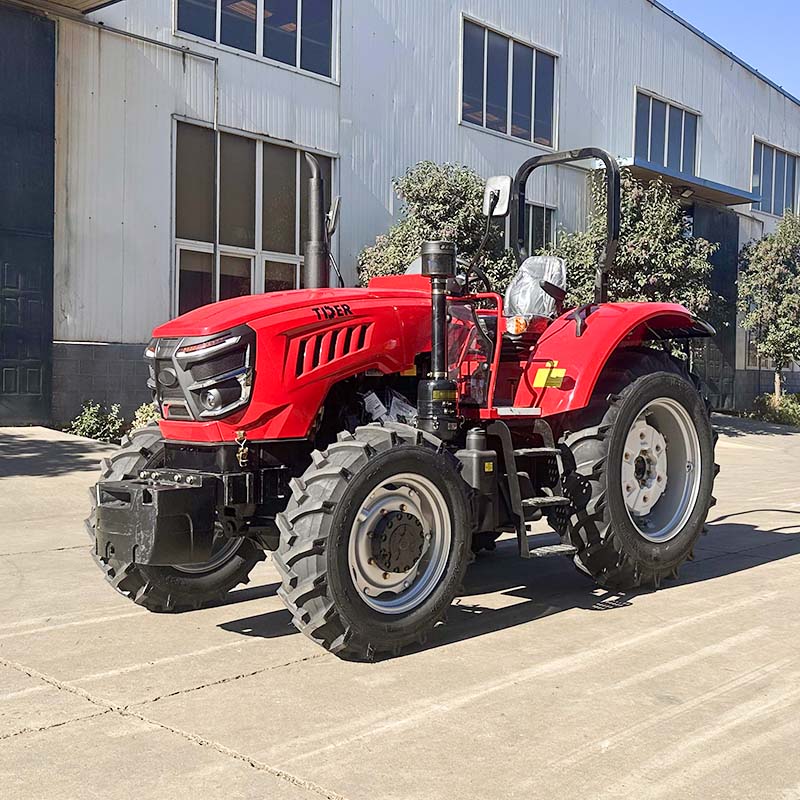

Product Showcase
